montpellier
Installation and Operating Instructions
MODEL: MON-CDH2
Built-In 2 Zone Domino Ceramic Hob

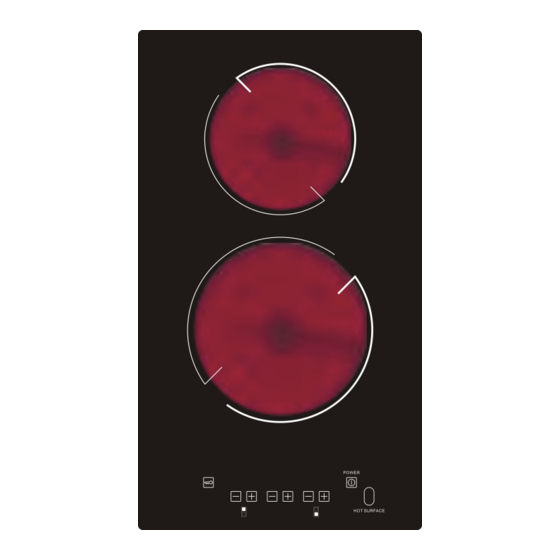

(Picture indicative of model supplied)
Please read these instructions carefully before attempting to install or use this appliance. It
is advisable to keep these instructions in a safe place for future reference.
Advertisement
Related Manuals for montpellier MON-CDH2
Summary of Contents for montpellier MON-CDH2

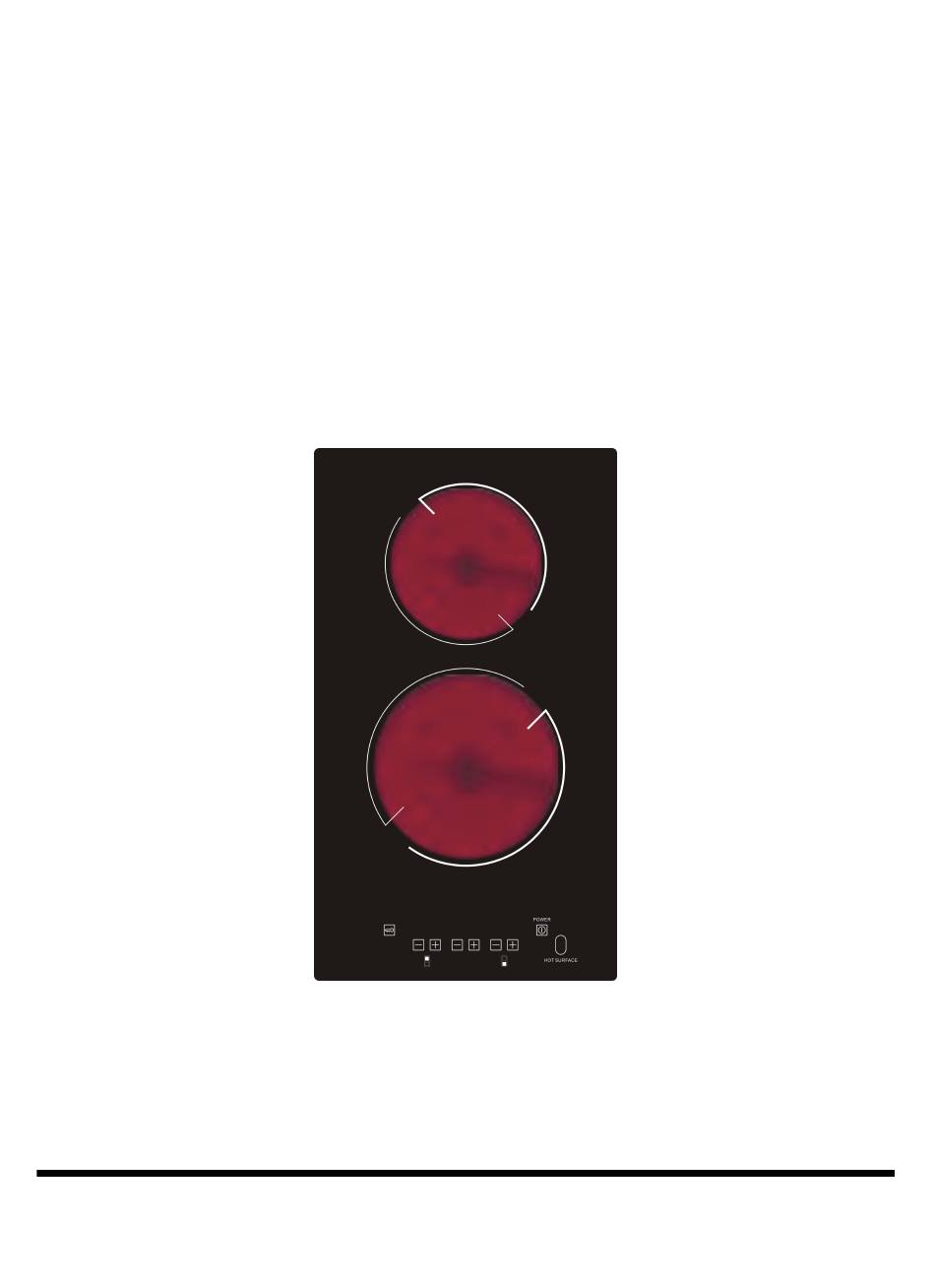

- Page 1 Installation and Operating Instructions MODEL: MON-CDH2 Built-In 2 Zone Domino Ceramic Hob (Picture indicative of model supplied) Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction Thank you for choosing this Montpellier branded appliance . It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 4 Description Of The Appliance 1. 1200W Cook Zone 2. 1800W Cook Zone 3. On/Off Power 4. Child ‘Lock’ 5. Heat Zones Controls 6. Hot Surface Indicator (Picture indicative of model supplied)
- Page 5 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 6 Section 1. Installation Remove all packaging, protective film and securing tape from the appliance. Position the appliance in a dry atmosphere.. The following dimensions are provided as a guide for installation – your installer will carry out the installation in accordance with the current regulations.
- Page 7 1.2. Space to Rear or Side Wall Ensure 65mm gap between cut-out and rear wall and 100mm to side wall or cabinet. 1.3. Installing above a drawer Ensure a minimum air gap of 9.5cm between the base of the hob and the top of the drawer.
- Page 8 1.4. Installing above a Built-in Oven...
- Page 9 1.5. Electrical Connection This appliance has a total Power Rating of 3000W and can be fitted with a 13 Amp plug and plugged into a standard, switchable 13 Amp socket. Alternatively, the product can be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing.
- Page 10 Section 2. Safety Advice Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. This appliance is guaranteed for Domestic Use Only. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the...
- Page 11 Section 3. Operating the Appliance 3.1. Control Panel 1. Child Lock Control 2. Rear Heat Zone Control 3. Timer Control 4. Front Heat Zone Control 5. Power On/Off Control 6. Hot Surface Indicator Light 3.2. Timer, Power and Cooking Functions 3.2.1.
- Page 12 3.2.2. Setting the Zone Temperature Use the ‘+’ or ‘-‘ to increase or decrease the power for the required zone (2 or 4). Power settings range from ‘0’ lowest to ‘9’ highest setting. 3.2.3. Timer You can set a timer to operate on the selected heat zone. Press ‘+’...
- Page 13 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Hob Surface Clean spillages from the hob surface as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
- Page 14 Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
