Installation and Operating Instructions
Models:
MON-INT251, MON-INT451
& MON-INT461F
30cm & 60cm Induction Hobs
(Pictures indicative of models supplied)
Please read these instructions carefully before attempting to install or use this appliance. It is
advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to book
a service call without your unique serial number which can be found on the last page of
.
this manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for montpellier MON-INT251
Summary of Contents for montpellier MON-INT251

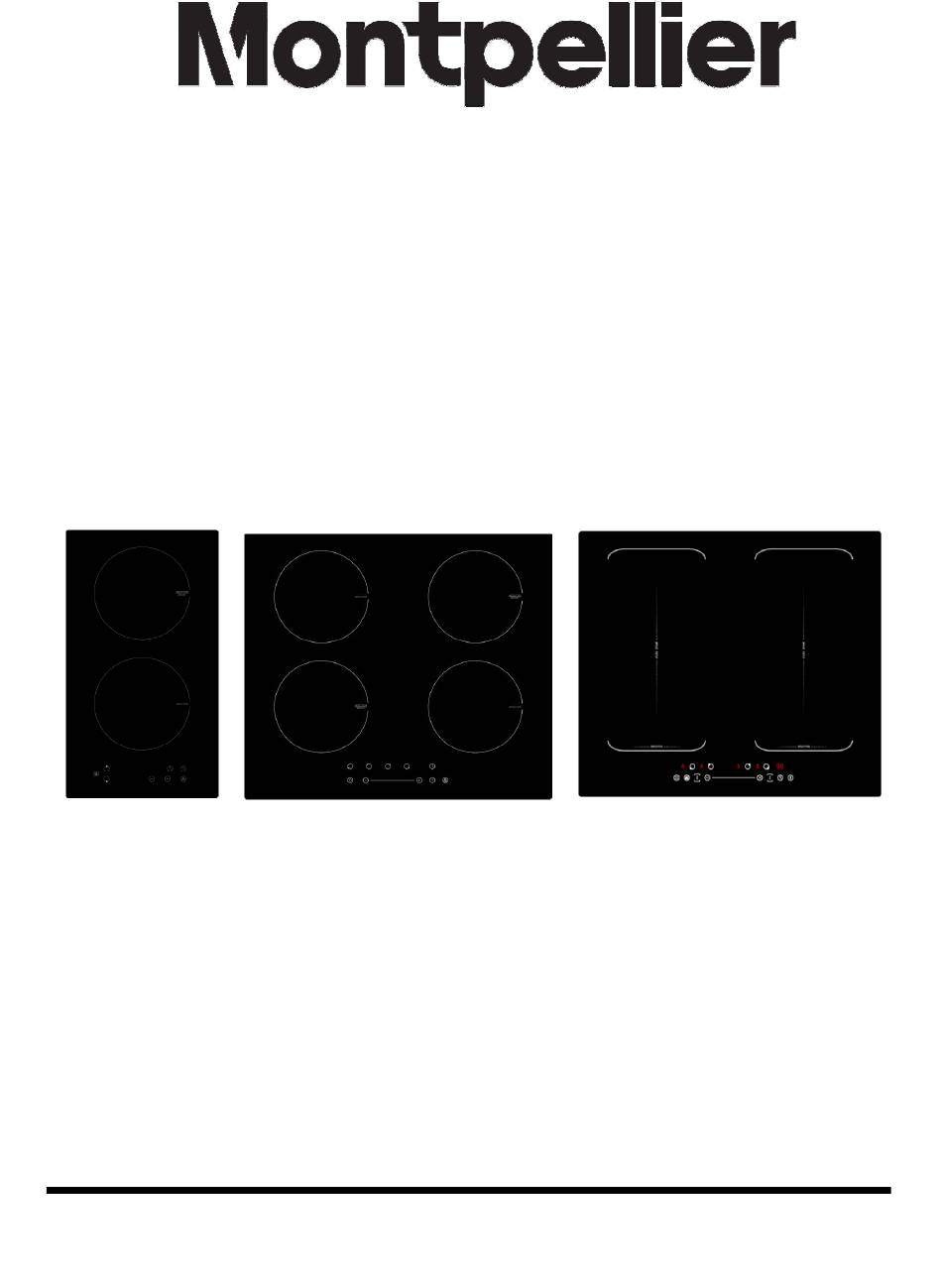

- Page 1 Installation and Operating Instructions Models: MON-INT251, MON-INT451 & MON-INT461F 30cm & 60cm Induction Hobs (Pictures indicative of models supplied) Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction Thank you for choosing this Montpellier branded appliance. It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 4 Description Of The Appliance MON-INT251 1. 2000W (Plus Boost Function) Cook Zone 2. 1500W Cook Zone 3. Main Function Controls 4. Boost Function Control...
- Page 5 MON-INT451 1. 2000W (Plus Boost Function) Cook Zone 2. 1500W Cook Zone 3. Main Function Controls 4. Boost Function Control...

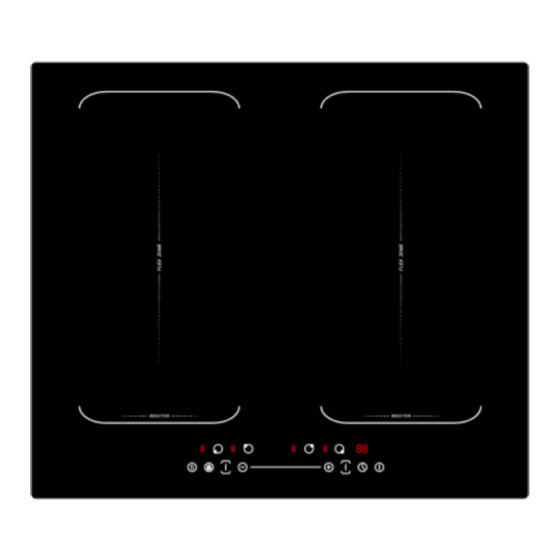

- Page 6 MON-INT461F 4. 5. 1. 2000W (Plus Boost Function) Cook Zone 2. 1500W (Plus Boost Function) Cook Zone 3. Main Function Controls 4. Boost Function Control 5. Flex Zone Controls...
- Page 7 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 8 The work surface must have a thickness of at least 30mm. The work surface must be heat resistant. Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) MON-INT451 50 mini MON-INT461F 50 mini MON-INT251 62.5 58.5 268＋4 500＋4 50 mini...
- Page 9 1.2. Space to Rear or Side Wall A = 760mm B = 50mm (min) C = 20mm (min) D = Air Gap/Intake E = Air Exit (5mm) 1.3. Fixing Brackets...
- Page 10 1.4. Electrical Connection These appliances have a total Power Rating of 3500W (MON- INT251) and 7000W (MON-INT451 & MON-INT461F) and must be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing. The product must be installed by a Qualified Electrician. Please note that a switchable spur should be accessible above the work surface in order that the power can be turned off.
- Page 11 Section 2. Safety Advice Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. This appliance is guaranteed for Domestic Use Only. This appliance shall not be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction on...
- Page 12 Induction Hobs. Never allow melamine or plastic containers to come in contact with the heat zones. 3.2. Control Panel 3.2.1. MON-INT251 1. On/Off Control 2. Heat Zone Selection Controls 3. Power & Timer Regulation Control 4.
- Page 13 3.2.2. MON-INT451 1. On/Off Control 2. Heat Zone Selection Controls 3. Power & Timer Regulation Control 4. Child Lock Control 5. Timer Control 6. Boost Control 3.2.3. MON-INT461F 1. Heat Zone Selection Controls 2. Timer Control 3. Power & Timer Regulation Control 4.
- Page 14 3.3. Power, Cooking & Functions 3.3.1. On-Off To turn the appliance on or off, press and hold the Power On/Off control until you hear a ‘beep’. When the appliance powers up, the heat zone indicators will display. 3.3.2. Setting the Zone Temperature Press the required heat zone and then use the ‘+’...
- Page 15 Press the Timer Control. Select the required time between 1 and 99 minutes by using the ‘+’ or ‘-‘ controls (3). Now the heat zone will operate for the selected time and automatically turn off at the end of the period. An audible signal will also be heard at the end of the time period.
- Page 16 3.3.6. Child Lock To activate the Child Lock, press and hold the Child Lock control (4) until ‘Lo’ is displayed. The lock will now be set and the appliance will not operate. To unlock the Child Lock, simply press and hold the Child Lock control again until the display is removed.
- Page 17 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Hob Surface Clean spillages from the hob surface as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
- Page 18 The display indicates E5: This indicates high temperature. Allow the hob to cool down then start again The hob makes a ‘clicking’ noise during use: This is quite normal – it is the sound of the induction coils during operation. For all other error codes, switch off and call your service provider.
- Page 19 Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
