Snapper 421622BVE Parts Manual page 5

ITEM PART NO. DESCRIPTION
1 5-8030 STEERING WHEEL (for 5/8"
shaft) (includes item 2)
2 2-3781 LOGO, Steering Wheel
3 1-3862 PIN, 1/4" x 1-1/2" Roll
4 3-8243 LATCH, Parking Brake
5 7-4131 CABLE, Clutch (55" long)
(for 33" & 42" Decks)
6 9-0122 WASHER, 3/8 Flat (2)
7 1-1815 PAD, Clutch/Brake Pedal
8 1-0694 BUSHING, Nylon
9 4-7888 PEDAL, Clutch/Brake (weldment)
10 1-0986 BEARING, Nylon (4)
11 4-6232 SHAFT, Steering (weldment)
12 1-3321 BUSHING, Tie-Rod (4)
13 1-2541 TIE-ROD, Left Hand (9.91" long)
14 4-1687 KING-PIN Weldment, Left Hand
15 1-2540 TIE-ROD, R. H. (9.91" long)
16 4-1688 KING-PIN, Weldment Right Hand
17 5-9197 WELDMENT, Front Axle, Wide
18 1-4048 FOOT PAD, Long (2)
19 1-5444 SPRING, Parking Brake
20 9-0183 WASHER, 21/32 I. Dia.(2)
21 4-6158 BUSHING, Nylon (2)
22 1-1714 PIN, Hair
MANUAL No. 06130
42
ITEM
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
5
FRONT END, STEERING
43
44
PART NO. DESCRIPTION
2-3667 FOAM COVER, Steering Shaft
9-0296 PIN, 3/16 x 1" Cotter
9-1514 WASHER, 3/8" Flat (2)
1-2867 PIN, Hair (.125" Dia. Wire)
2-2881 SPACER, 1/2" (5)
1-0776 RING, 1/2" External Retaining
(Heavy Duty)
1-0746 RING, 3/4" Ext. Retaining (2)
9-0365 PIN, 1/8 x 3/4" Cotter (2)
1-0935 WASHER, 5/8 Flat (6)
2-3671 COVER, Steering Shaft
2-8395 SPACER, Pivot
2-8332 STUD, Shoulder (3/8-24 Thread)
9-0854 NUT, 3/8-24 Hex Nyloc
7-2648 CABLE, Brake (29" long)
3-4174 CONNECTOR, Cable (2)
9-1495 SCREW, 1/4-20 x 3/4", Gr. 5
9-0372 NUT, 1/4-20 Hex Center Lock
9-0753 PIN, 3/16" x 1-1/2" Cotter
9-0364 PIN, 5/32" x 1" Cotter (2)

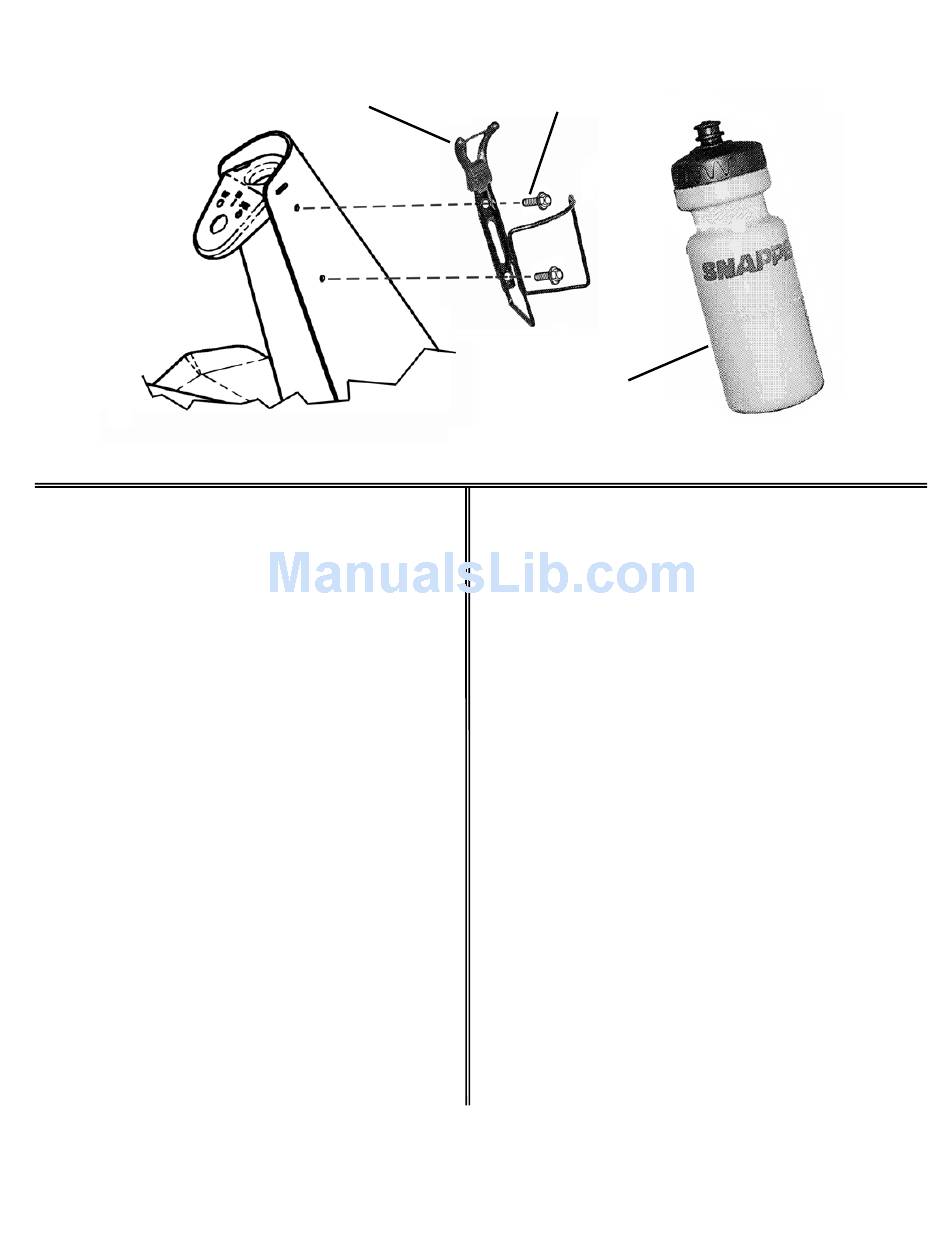

7-4560 HOLDER, Wire- Bottle
9-0913 SCREW, #10-24 x 1/2"
Hex Washer Self-Tap (2)
7-4561 BOTTLE, Water
7-4599 PLATE, Thrust
42" MODEL R. E. RIDER SERIES 22
