Snapper 421622BVE Parts Manual page 18

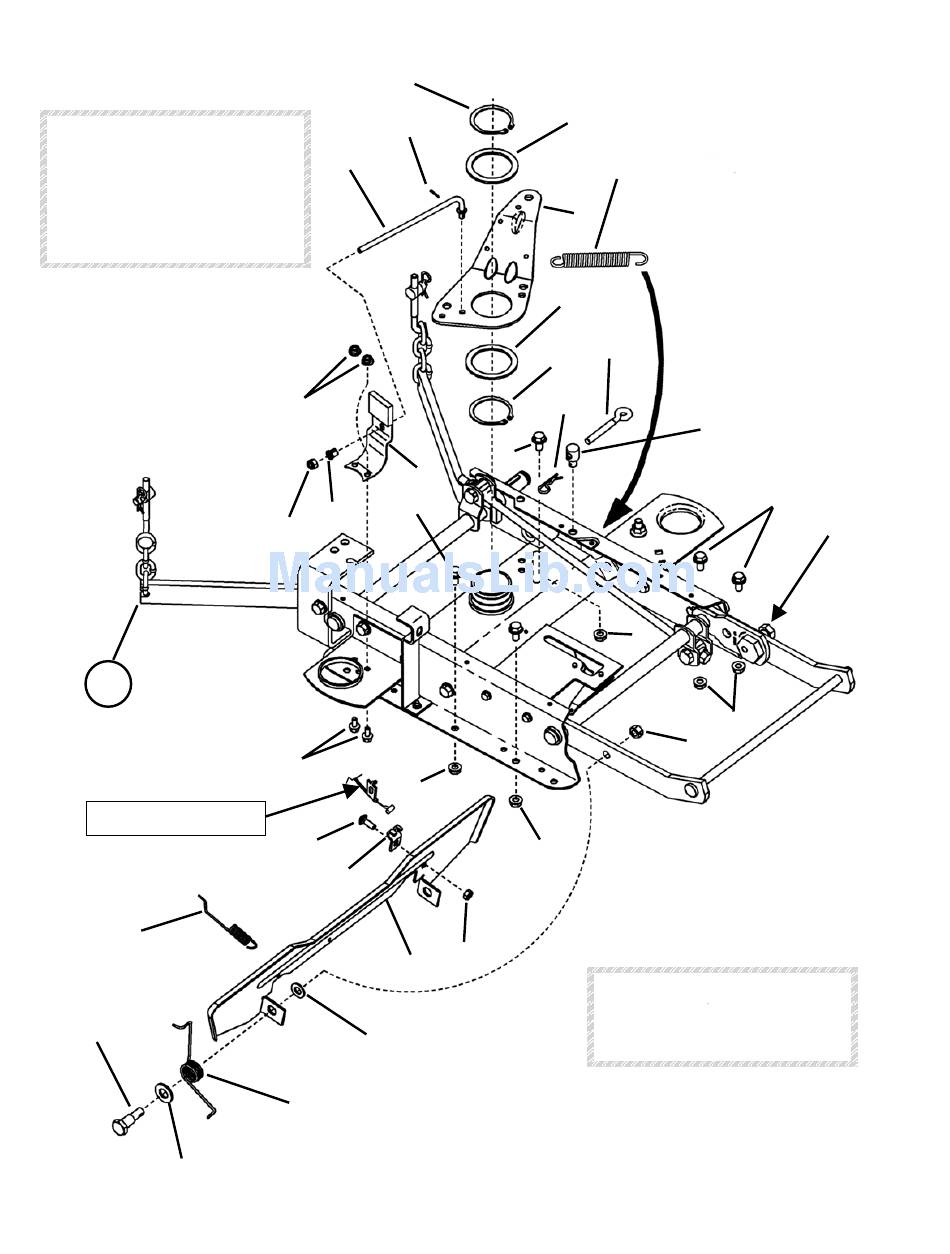

42" CUTTING DECK ASSEMBLY (page 3 of 4)
*
NOTE: SOME PREVIOUSLY
ASSEMBLED COMPONENTS SUCH
AS DECK, IDLERS, BELT GUIDES
AND THE HEIGHT ADJUSTMENT
ASSEMBLY ARE NOT SHOWN HERE
IN ORDER TO CLARIFY PLACEMENT
OF COMPONENTS IN THIS
ASSEMBLY.
39 ASSEMBLY
See Page 14, Item 59
55
52
53
MANUAL No. 06130
46
63
62
58
45
60
61
*
59
49
64
43
40
56
44
51
41
51
46
48
45
57
49
65
18
54
47
42
45
49
49
50
**
NOTE: THIS SHOULDER BOLT,
INTERNAL TOOTH LOCK WASHER &
LEVELING ECCENTRIC ARE SHOWN
ON PAGE 14 AS ITEMS 27, 36 & 37 .
42" MODEL R. E. RIDER SERIES 22
**
