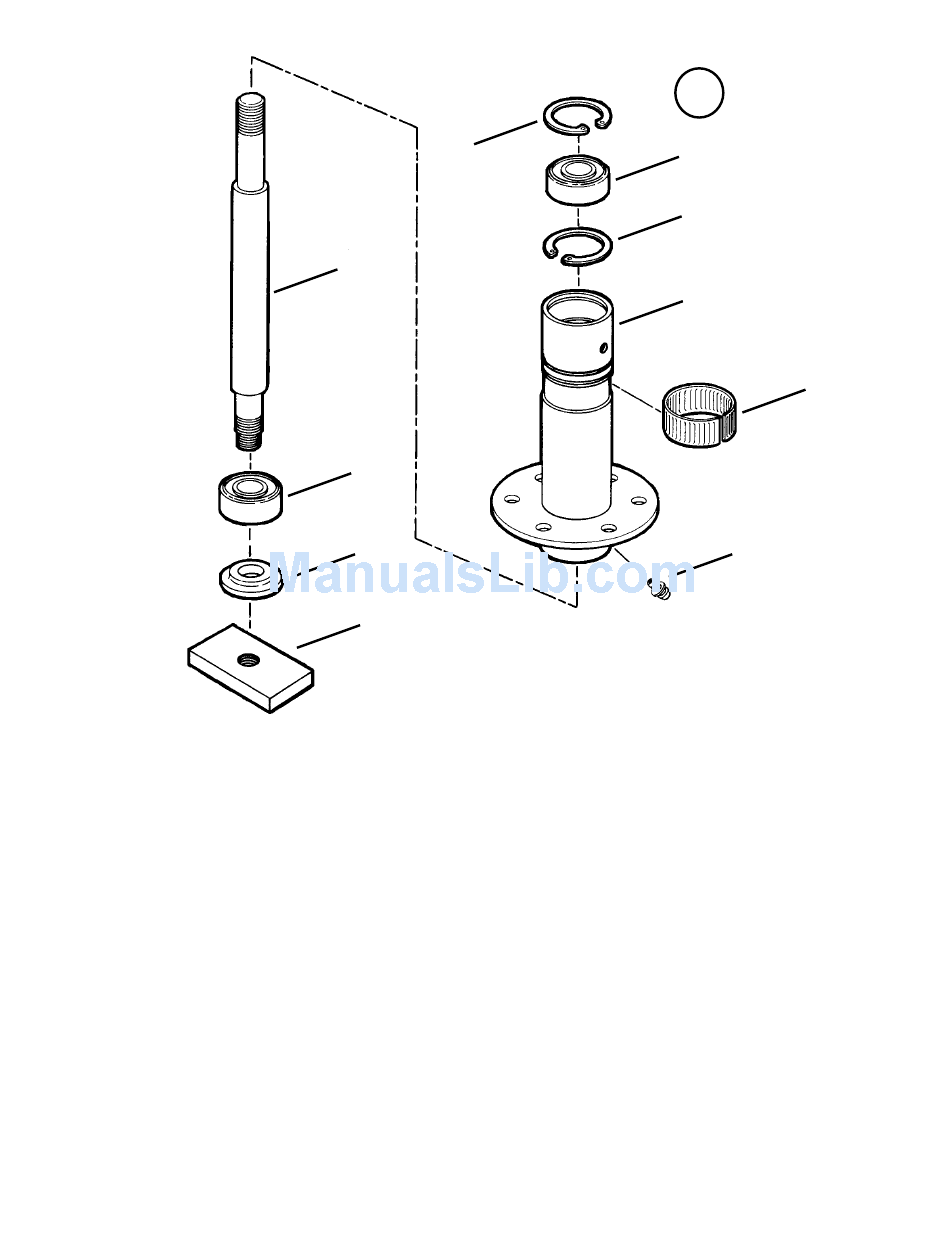

SPINDLE ASSEMBLY

ITEM
1
2
3
4
5
6
7
8
9
MANUAL No. 06130
8
3
7
6
PART NO. DESCRIPTION
5-9628 ASSEMBLY, Spindle Housing (Includes items 2 thru 8)
1-2491 RING, 1.75" Internal Retaining (2)
1-3313 BEARING, Spindle (2)
4-7849 HOUSING, Spindle (weldment)
1-0817 FITTING, Lube
3-2294 HOLDER, Blade
1-4407 WASHER, Spindle
2-7640 SPINDLE (9.5" Length)
1-2670 RING, Tolerance
2
42" MODEL R. E. RIDER SERIES 22
22
1 ASSEMBLY
3
2
4
9
5
