2.0

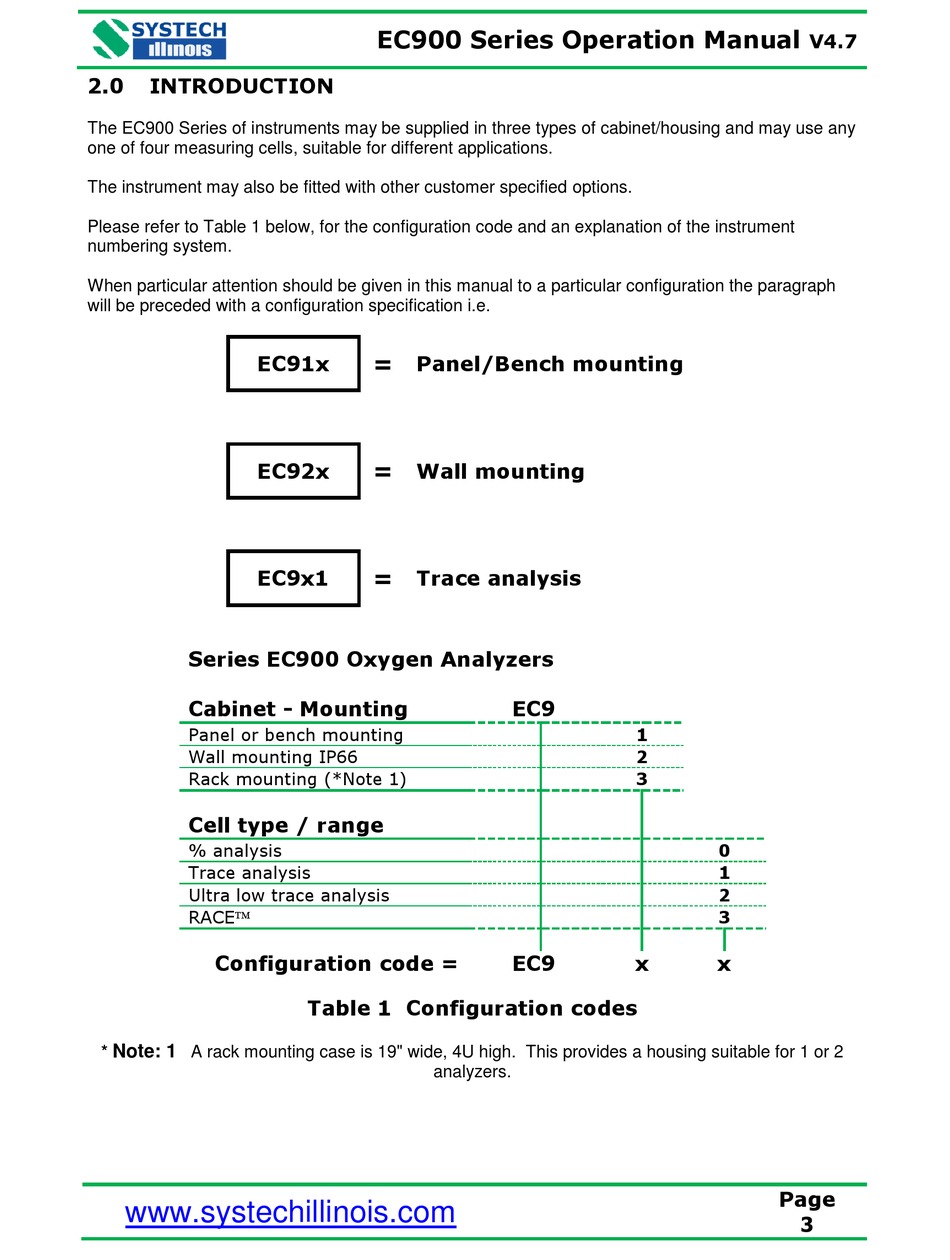

INTRODUCTION

The EC900 Series of instruments may be supplied in three types of cabinet/housing and may use any
one of four measuring cells, suitable for different applications.
The instrument may also be fitted with other customer specified options.
Please refer to Table 1 below, for the configuration code and an explanation of the instrument
numbering system.
When particular attention should be given in this manual to a particular configuration the paragraph
will be preceded with a configuration specification i.e.
EC91x
EC92x
EC9x1
Series EC900 Oxygen Analyzers
Cabinet - Mounting
Panel or bench mounting
Wall mounting IP66
Rack mounting (*Note 1)
Cell type / range
% analysis
Trace analysis
Ultra low trace analysis
RACE
Configuration code =
Note: 1
* A rack mounting case is 19" wide, 4U high. This provides a housing suitable for 1 or 2
www.systechillinois.com
EC900 Series Operation Manual
=
Panel/Bench mounting
=
Wall mounting
=
Trace analysis
Table 1 Configuration codes
analyzers.
EC9
1
2
3
EC9 x
V4.7
0
1
2
3
x
