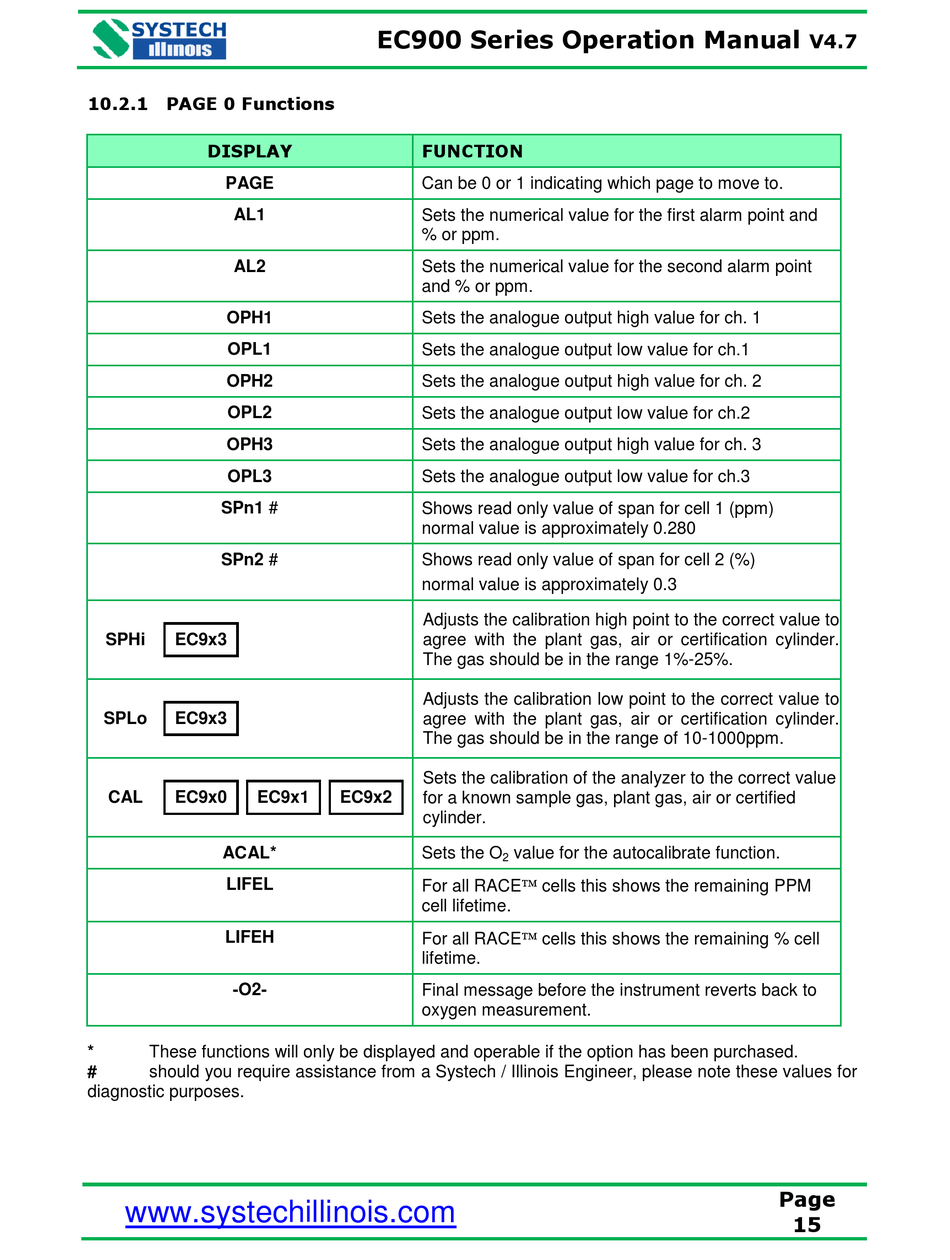

10.2.1 PAGE 0 Functions
DISPLAY
PAGE
AL1
AL2
OPH1
OPL1
OPH2
OPL2
OPH3
OPL3
SPn1 #
SPn2 #
SPHi EC9x3
SPLo EC9x3
CAL EC9x0 EC9x1
ACAL*
LIFEL
LIFEH
-O2-
* These functions will only be displayed and operable if the option has been purchased.
# should you require assistance from a Systech / Illinois Engineer, please note these values for
diagnostic purposes.
www.systechillinois.com
EC900 Series Operation Manual
FUNCTION
Can be 0 or 1 indicating which page to move to.
Sets the numerical value for the first alarm point and
% or ppm.
Sets the numerical value for the second alarm point
and % or ppm.
Sets the analogue output high value for ch. 1
Sets the analogue output low value for ch.1
Sets the analogue output high value for ch. 2
Sets the analogue output low value for ch.2
Sets the analogue output high value for ch. 3
Sets the analogue output low value for ch.3
Shows read only value of span for cell 1 (ppm)
normal value is approximately 0.280
Shows read only value of span for cell 2 (%)
normal value is approximately 0.3
Adjusts the calibration high point to the correct value to
agree with the plant gas, air or certification cylinder.
The gas should be in the range 1%-25%.
Adjusts the calibration low point to the correct value to
agree with the plant gas, air or certification cylinder.
The gas should be in the range of 10-1000ppm.
Sets the calibration of the analyzer to the correct value
EC9x2
for a known sample gas, plant gas, air or certified
cylinder.
Sets the O value for the autocalibrate function.
2
For all RACE cells this shows the remaining PPM
cell lifetime.
For all RACE cells this shows the remaining % cell
lifetime.
Final message before the instrument reverts back to
oxygen measurement.
