Hitch Components - Simplicity 1693756 Operator's Manual

Initial Setup & Assembly
1
5
3
4
9
31
9

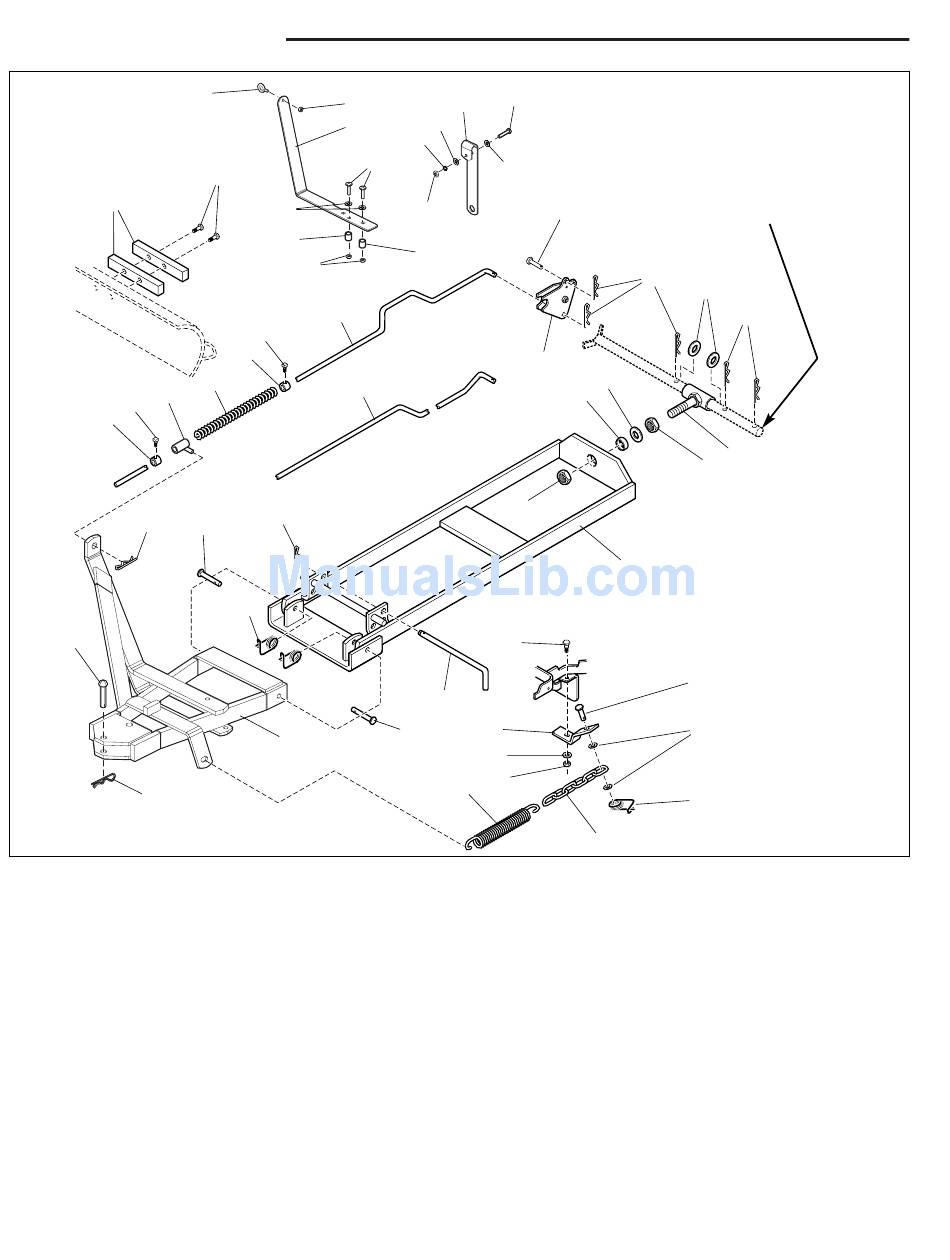

Figure 9. Push Bar, Hitch, & Lift Rod Components
Ref Qty Description
1 2 STOP, Bar
2 2 SCREW, Taptite, 5/16-18 x 1
3 2 SETSCREWS, 5/16 x 1/2
4 2 SET COLLAR
5 1 ROD GUIDE ASSY.
6 1 SPRING
7 1 ROD, Lift, Manual
8 1 ROD, Lift, Electric/Hydraulic
9 7 CLIP, Springs
10 1 LIFT EXTENSION LEVER
11 2 WASHER
12 1 SUPPORT, Push Bar
13 1 NUT, Hex, 5/8-11
14 1 WASHER
15 1 SPACER
16 1 NUT, Hex, 5/8-11
33
34
35
36
2
37
43
38
7
3
4
6
8
9
28
29
30
Ref Qty
17 1
18 1
19 1
20 1
21 2
22 1
23 1
24 1
25 1
26 1
27 1
28 2
29 2
30 1
31 1
32 1
39
40
37
41
37
42
32
43
10
15
16
19
18
27
28
26
25
24
Description
PUSH BAR ASSY, Rear
ROD, Latch
CAPSCREW, 5/16-18x1
PIN, Hitch
WASHERS, Plain 5/16
SAFETY CLIP
CHAIN
SPRING
NUT, Hex, 5/16-18
LOCKWASHER, 5/16
BRACKET, Anchor
CLEVIS PIN
SAFETY CLIP
PUSH BAR ASSY, Front
PIVOT PIN
CLEVIS PIN
10
NOTE: The dashed-line rod:
Landlord/1700/2700-This rod
is part of the tractor.
Broadmoor/1600/2600-This
rod is the cross-shaft of the
manual lift lever
9
11
9
14
12
13
17
20
21
22
23
Ref Qty Description
33 1 EYEBOLT, 1/4-20 x 1-1/2
34 1 LOCKNUT, Nylock, 1/4-20
35 1 BRACKET, Control Rod
36 2 CAPSCREW,
5/16-18 x 1-1/2
37 2 WASHER, 5/16
38 2 LOCKNUT, Center, 5/16-18
39 1 CAPSCREW,
5/16-18 x 1-1/2
40 1 BRACKET, Control Rod
41 1 NUT, Hex, Full, 5/16
42 1 LOCKWASHER, 5/16
43 2 SPACER
