Simplicity 1695195 Installation Instructions Manual

Sub-frame hitch for prestige / 1800 / 2800, conquest / 1700 / 2700, & broadmoor / 1600 / 2600 series tractors
Hide thumbs

Advertisement

Quick Links

Installation
Instructions
This kit is required when installing front mounted
snowthrowers.
Sub-Frame Hitch
For Prestige / 1800 / 2800, Conquest / 1700 / 2700, &
Broadmoor / 1600 / 2600 Series Tractors
1
Mfg. No. 1695195

Advertisement

loading

  Also See for Simplicity 1695195

  Related Manuals for Simplicity 1695195

  Summary of Contents for Simplicity 1695195

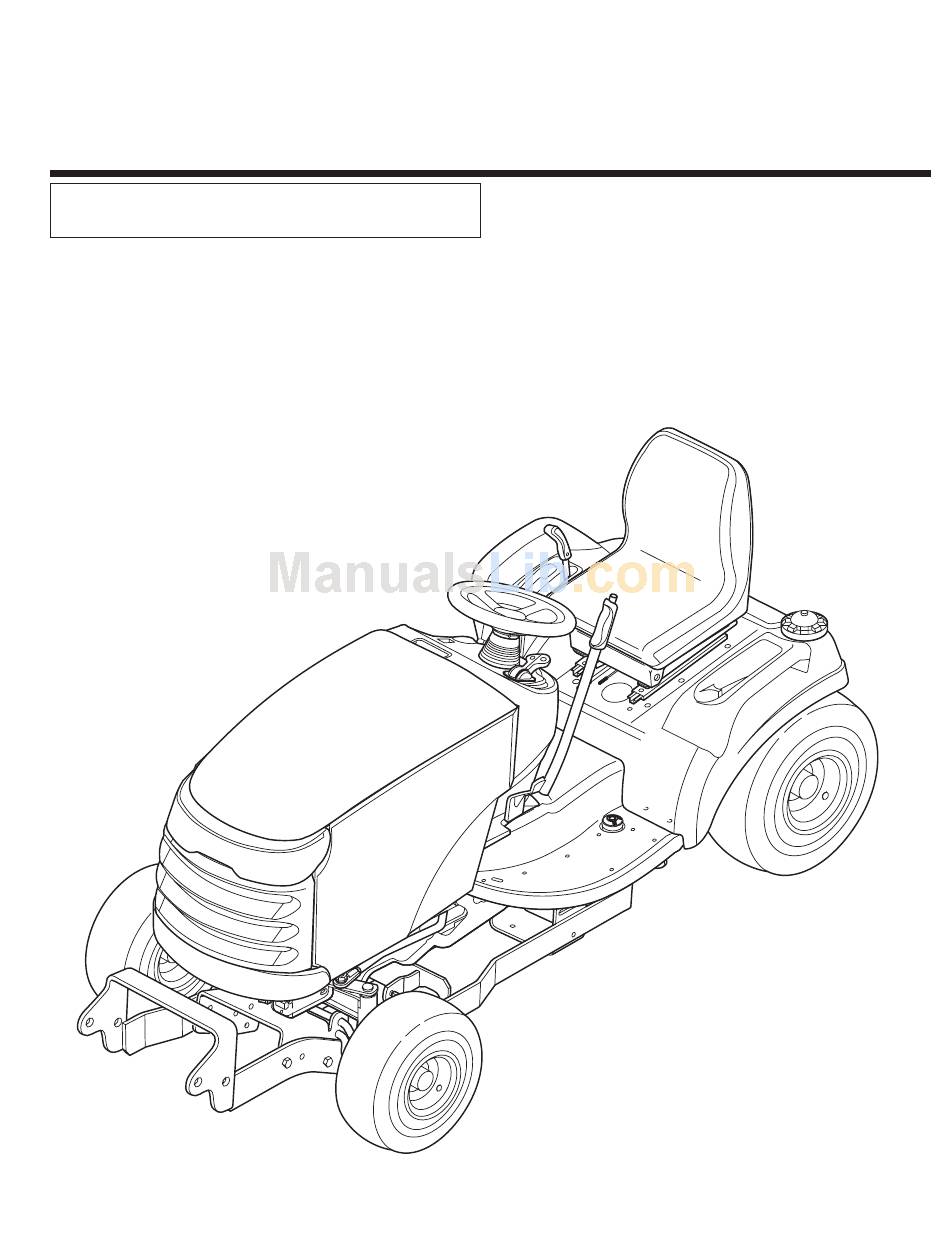

  • Page 1 Installation Instructions This kit is required when installing front mounted snowthrowers. Sub-Frame Hitch Mfg. No. 1695195 For Prestige / 1800 / 2800, Conquest / 1700 / 2700, & Broadmoor / 1600 / 2600 Series Tractors...
  • Page 2 Installation Instructions Main Hitch Components (All Applications) Front Hole for Dozer Applications Rear Hole for Snowthrower Applications Figure 1. Contents Sub-Frame Hitch Hydraulic Front Pulley - Two-Stage Lift Snowthrower Application Early Manual Lift Only (See Instructions)
  • Page 3 Sub-Frame Hitch Part No. Qty. Description 1723292A SHAFT & HOOK ASSY 1653768A CLAMP, Support 1931335 CARRIAGE BOLT, 5/16-18 x 1 1919381 WASHER, 11/32 1917356 LOCKWASHER, 5/16 1917372 NUT, 5/16-18 105249 PIN, Round Head, 3/8 x 2-3/8 1724025 LIFT LEVER ASSY. 2176012 SAFETY CLIP 1722946...
  • Page 4: Initial Assembly

    Installation Instructions NOTE: Please read through these instructions and the instructions of any other attachments before beginning installation. WARNING Before beginning any service work turn off the PTO, set the parking brake, turn off the ignition, and disconnect the spark plug wire(s). INITIAL ASSEMBLY Assemble Hitch 1.
  • Page 5: Initial Installation

    Sub-Frame Hitch Figure 5. Assemble Lift Rod A. Lift Rod C. Spring B. Set Collar D. Rod Guide Figure 6. Early/Later Lift Links A. Early Model Lift Link B. Later Model Lift Link Assemble Lift Rod 1. Install the set collars (B, Figure 4), spring (C), and rod guide (D) on the lift rod (A) as shown.
  • Page 6: Install Hitch

    Installation Instructions Figure 9. Install Hitch A. J-Hooks D. Hook B. Hitch Rod E. Clamp Plate C. Hitch Rod Install Hitch 1. Slide the hitch under the tractor. 2. Raise the rear of the hitch and place the hook (C) over the lift shaft.
  • Page 7: Install Lift Rod

    Sub-Frame Hitch Figure 10. Install Lift Lever A. Lift Lever B. Lift Shaft C. Safety Clip D. Clevis Pin Install Lift Rod 1. Slide the lift lever (A, Figure 10) onto the end of the tractor lift shaft (B) under the right side footrest. 2.
  • Page 8: Normal Installation

    Installation Instructions Figure 12. Normal Installation & Removal REMOVAL NOTE: After removing components, reinstall the clevis pins and clips to prevent loss. 1. Disconnect the lift rod from the attachment and lift lever extension (C, Figure 12). 2. Remove the clevis pin and clip from the lift lever (C) and remove the lift lever.
  • Page 9: Lift Variations When Using Attachments

    Sub-Frame Hitch Figure 13. Lift Lock Plate - Hydraulic Lift Models A. Lift Cylinder B. Flat Head Pin (Original) C. Flat Head Pin (New) D. Lock Plate E. Hair Pin Clips F. Lift Shaft Assy. G. Washers LIFT VARIATIONS WHEN USING ATTACHMENTS When a front-mounted attachment such as a snowthrow- er or dozer blade is used with the tractor, the lift mecha-...
  • Page 10 Installation Instructions Sub-Frame Hitch NOTES M A N U F A C T U R I N G , I N C . Form No. 1734116 Rev. 10/2006 500 N Spring Street / PO Box 997 © 2006 Briggs & Stratton, Inc. All Rights Reserved Port Washington, WI 53074-0997 USA TP 200-4417-00-AT-SMAN...
