Summary of Contents for UEi EM151

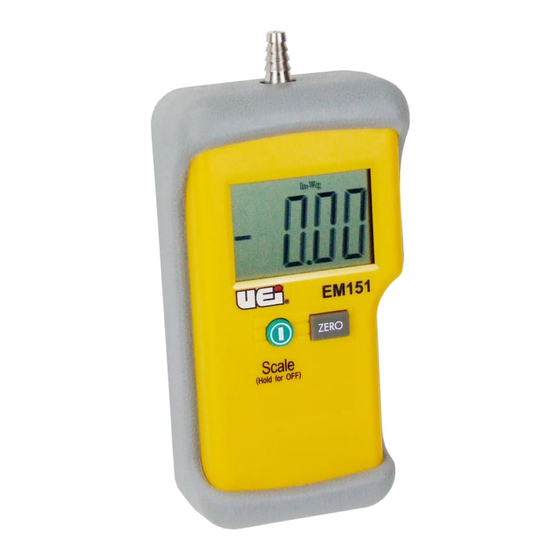

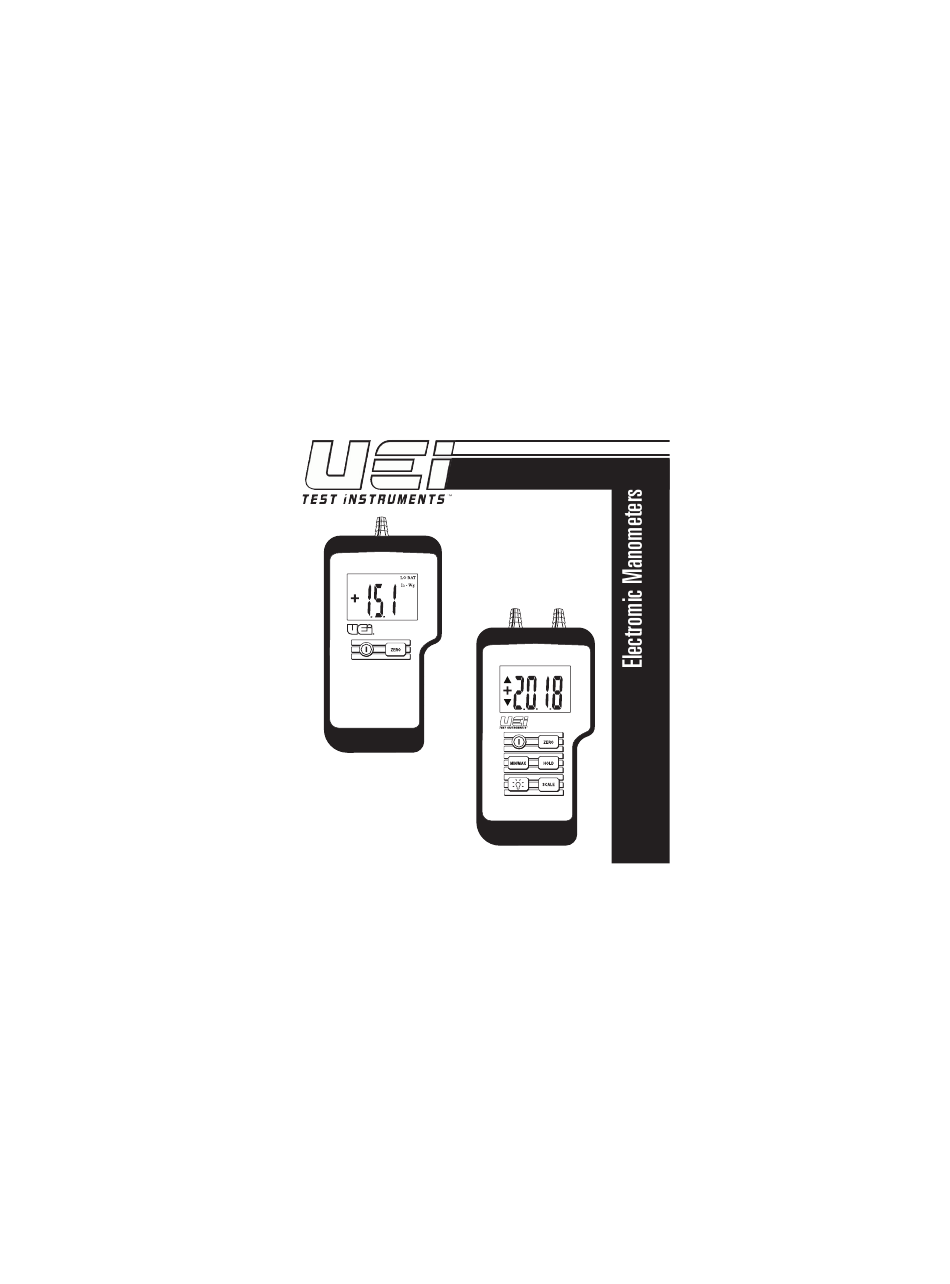

- Page 1 INSTRUCTION MANUAL EM151 / EM201B EM151 Scale Low Battery PSI In-Wg mBar hPa (Hold for OFF) EM201B GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 The EM151 and EM201B provide a simple, time-saving alternative to U-tube pressure measurements. Use the UEi EM151 & EM201B to measure gas supply and draft pressures in residential or light commercial properties. The EM201B differential mode provides a convenient method to measure pressure drops.
- Page 3 SAFETY RULES WARNING! Before every use, check to be sure the meter and its tubing are free from breaks or blockage. While using the meter, if you suspect gas is leaking, or if you can smell gas, close off the gas supply and ventilate the occupied space.
- Page 4 FEATURES EM151 • Single input to measure pressure to ±20 In-WG • Measures in: In - WG, mBar and PSI • Ruggedized, including rubber boot with integral magnet • Simple two-button operation • Auto power-off after 20 minutes • 3 year limited warranty EM201B • Dual input differential measurement to ±60 In-WG • Measures in: In - WG, mBar, PSI and Pa (auto range to hPa) • Ruggedized, including rubber boot with integral magnet • Auto power-off after 60 minutes • Dynamic Min/Max value capture • Data hold • Back-lit display • 3 Year limited warranty GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 5 Connect the flexible tube between the meter and the pressure source. When performing single input measurement use the EM151 single port or the EM201B positive input. The EM201B positive input is to the right when looking at the front of the meter.
- Page 6 Measure Pressure (Cont.) To perform pressure with respect to a different area using the EM201B connect a tube to the positive port, place the end of this tube to the area to be measured and the negative port open. Results will show the pressure in the target area with respect to the area the meter is located Use both the positive and negative ports to perform differential measurements.
- Page 7 4. DYNAMIC MIN/MAX (EM201B ONLY) The EM201B will capture values for both the minimum and maximum pressure measured. To reset press MIN/MAX until the display shows “- CLr”. This will reset the values stored for minimum and maximum measured without the need to disconnect and zero the pressure measurement. Captured values can be displayed in any available scale. 5.
- Page 8 SPECIFICATIONS EM151 Measurement range: -20 to +20 In-WG Minimum pressure displayed: 0.01In- WG Accuracy: ±1% Full scale Resolution: 0.01” (-9.99 to +9.99 In-WG) 0.1” (< -10, > +10 In-WG) Operating range: 0 - 40˚C, 10 - 90% RH non condensing Battery life: 50 hours min with alkaline battery EM201B Measurement range: -60 to +60 In-WG Minimum pressure displayed: 0.01 In-WG Accuracy: ±0.03 < 3 In-WG ±1%rdg > 3 In-WG Resolution: 0.001”(-9.999 to +9.999 In-WG) 0.01” (< -10,> +10 In-WG) Operating range: 0 - 40˚C, 10 - 90% RH non condensing Battery life:...
