Red Line Instruments EZ100J Owner's Manual page 6

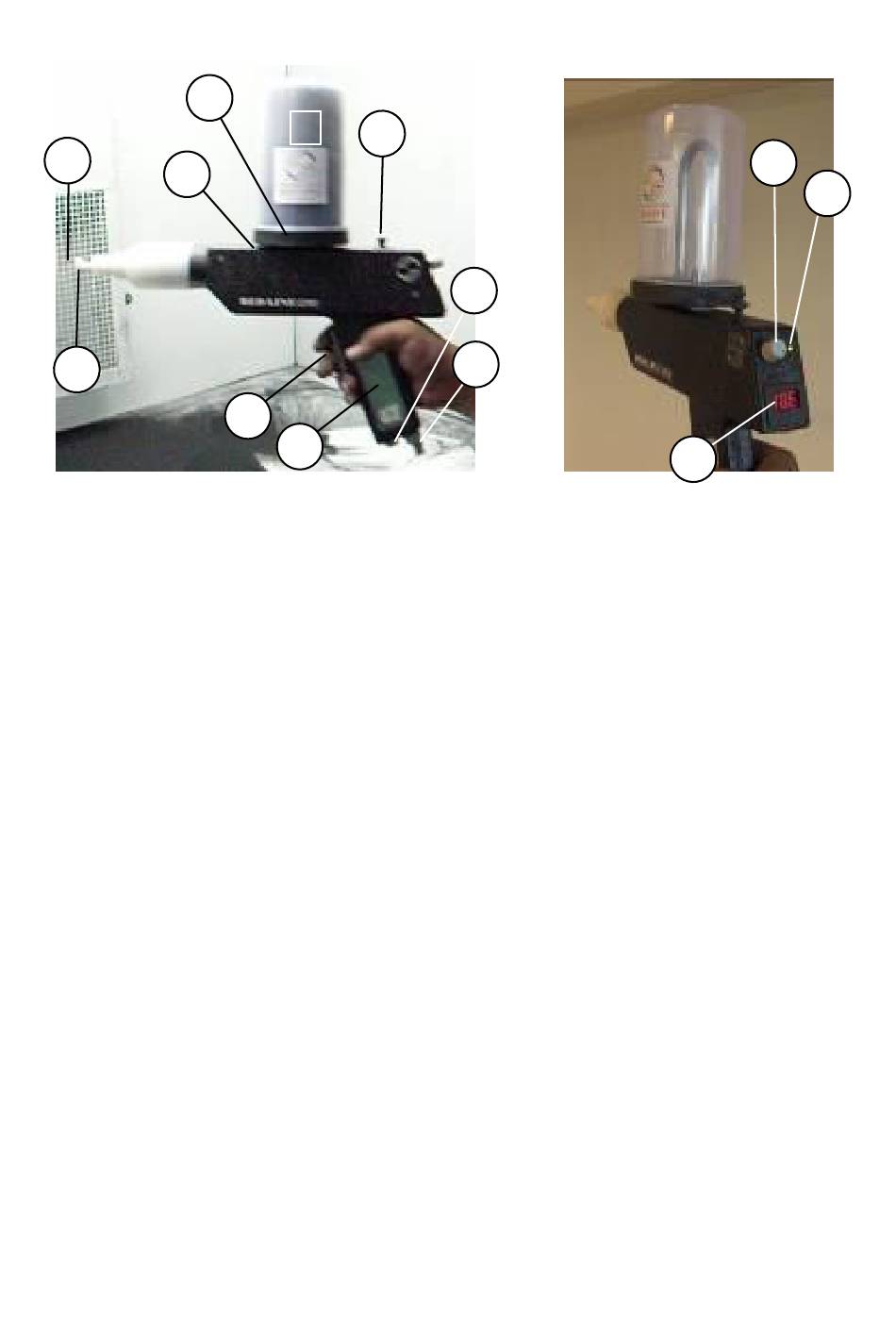

Understand various parts of your gun:
a
b
a. Gun tip (electrode): This is where the electrostatic charge is
available.
b. Powder flow pattern generators: You can use what suits you –
round or flat (fan) type. These are interchangeable at will
c. Cup-lid Holder: You lock in here the ForceFeed system cup-lid
provided (explained later).
d. ForceFeed system cup-lid (black)
e. Powder flow rate controller.
f. Electrostatic charge (kV) controller
g. Charging Indicator
h. Digital Meter showing the output charging voltage (nominal)
i. Trigger used to switch ON and OFF the coating operation
Earthing plates – to ensure that you and the entire system is
j.
earthed (grounded)
k. Power input socket – the power supply unit connects here
l. Compressed Air inlet. The compressed air line connects here
m. Powder cup (500 gm – 1 lb capacity)
d
m
c
i
j
e
k
l
f
g
h
