Summary of Contents for Red Line Instruments EZ100J

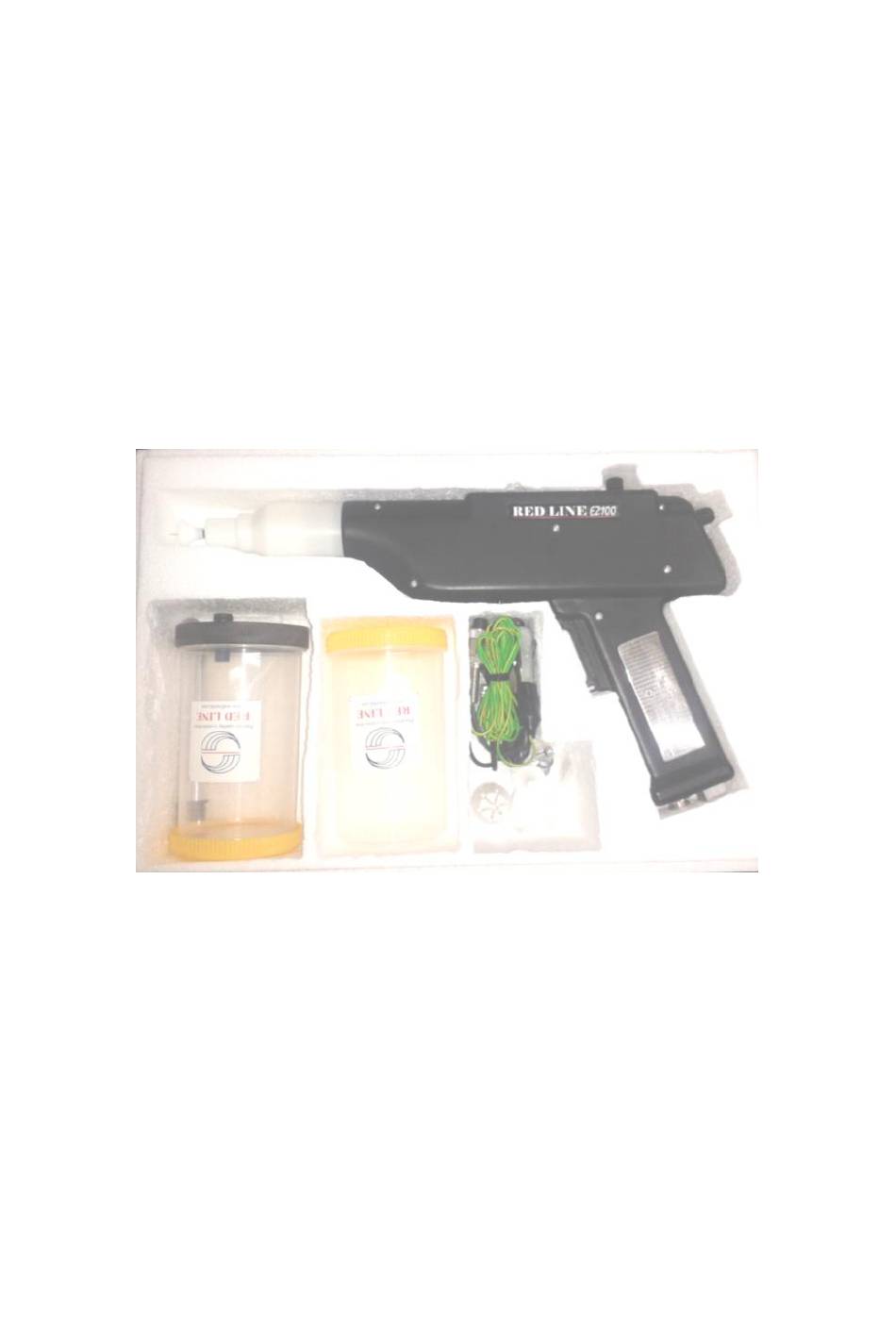

- Page 2 Packing List: EZ100 J The RED LINE consists of the following: o Powder spray gun with a round powder deflector fitted at the tip of the gun. o Wall mounting adaptor (Input 100-260V AC 50-60 Hz; output 12 VDC 1.5 amp rating) with 3 meter (10’) cable and a 3 Meter (10’) earth (ground) cable with crocodile clip o Two additional round powder flow deflectors of different sizes (12 mm, 19 mm &...
- Page 3 Congratulations on your purchase of the RED LINE electrostatic EZ100J powder coating gun. You could be a serious hobbyist or a first time powder coater or an industrial coater requiring portability or a powder coater who simply wants a low-cost powder gun. In any case, you will find its...
-
Page 4: Caution And Care
CAUTION AND CARE: First and foremost, it is very important for you, as the user, to understand that although a great deal of attention has been given to various safety factors and considerations, the ultimate responsibility of using and treating this machine responsibly and with care lies with you. This machine generates around 100kV (100,000 electrostatic volts) for electrostatic use. - Page 5 … EVER NEVER touch the charging electrode at the tip of the gun with your bare hands when the machine is ‘ON’. If required to handle the electrodes, always earth (ground) the electrode first to dissipate any electrostatic charge build-up that may have taken place. ...
- Page 6 Understand various parts of your gun: a. Gun tip (electrode): This is where the electrostatic charge is available. b. Powder flow pattern generators: You can use what suits you – round or flat (fan) type. These are interchangeable at will c.
- Page 7 First start up: EZ100J The RED LINE is supplied virtually ready to operate. All you need to do before you start work is to put together the ForceFeed system cup assembly before you connect up the compressed air line and power supply.
- Page 8 Or, connect the ground clip to the metal object being coated. Good quality grounding is essential not only from a safety standpoint, but improves the quality of powder coating. EZ100J RED LINE IS NOW CONNECTED FOR POWDER COATING...
- Page 9 Operations: Hang the article(s) to be coated in the spray booth or in a safe enclosure, ensuring that they are properly earthed (grounded). Switch ON the mains power switch to the machine from the wall power outlet. The indicator (if provided) on the wall-mounting power adaptor should light up.
- Page 10 Suggestions for good results: To change spray pattern nozzles/deflectors: the EZ100J comes fitted with the flat spray pattern nozzle (also known as the fan pattern nozzle). To replace this with the round deflector: [1] please pull out the flat pattern nozzle assembly along with the fan size control ring, [2] screw on the required round deflector onto the deflector adaptor.
- Page 11 Routine maintenance: EZ100J Always keep your RED LINE system clean. When the powder coating work is over, ground the gun tip to the ground point. Switch off the mains switch at the wall outlet. Unplug the machine from the wall outlet.
- Page 12 RED LINE INDUSTRIES LIMITED An ISO 9001:2008 Company Sales Office: 7 Kaliandas Udyog Bhavan, Prabhadevi, Mumbai 400025, India Tel: +91-22-24324737 / 24324787 Fax: +91-22-66466936 Web: www.redlineltd.com email: redline.email@gmail.com...
