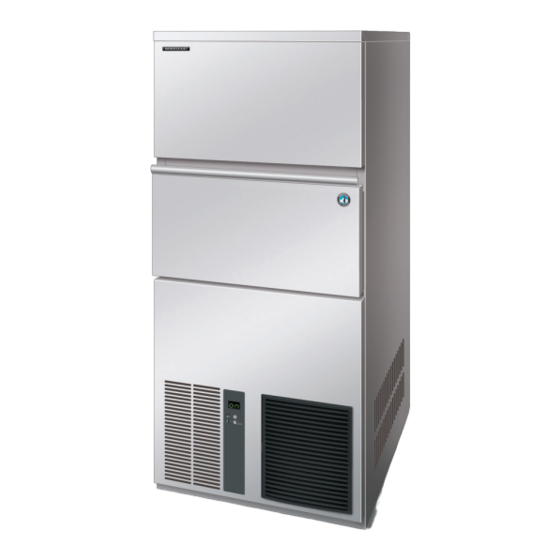

Hoshizaki IM-21CNE Instruction Manual
Self-contained cuber
Hide thumbs
Also See for IM-21CNE:
- Service manual (91 pages) ,
- Instruction manual (86 pages) ,
- Instruction manual (29 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hoshizaki IM-21CNE
Summary of Contents for Hoshizaki IM-21CNE
- Page 1 SELF-CONTAINED CUBER IM-21CNE IM-30CNE IM-45CNE IM-45NE IM-65NE IM-100CNE INSTRUCTION MANUAL IM-100NE IM-130NE IM-240NE IM-240NE Telford 70 Stafford Park 7, Telford, Shropshire TF3 3BQ UK L1E1EC113 (050818)
-
Page 2: Table Of Contents
IMPORTANT SAFETY INFORMATION ............................1 I. INSTALLATION INSTRUCTIONS ..............................3 1. CONSTRUCTION ................................3 2. ACCESSORIES ...................................3 3. UNPACKING ..................................4 4. LOCATION ...................................5 5. INSTALLATION ..................................5 6. ELECTRICAL CONNECTIONS ............................6 7. WATER SUPPLY AND DRAIN CONNECTIONS .........................6 II. OPERATING INSTRUCTIONS ..............................7 1. START UP ....................................7 2. -
Page 3: Important Safety Information
ENGLISH IMPORTANT SAFETY INFORMATION Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit. Indicates a hazardous situation which, if not avoided, could result in death or WARNING serious injury. - Page 4 * If the supply cord is damaged, it must be replaced by a replacement cord available from Hoshizaki Parts/Service Centres. * Do not touch the electrical parts or operate the switches with damp hands. * This appliance is not intended for use by persons (including children) with reduced physical,...
-
Page 5: Installation Instructions
Front Panel Front Panel Bin Door (Lower) (Lower) Air Filter Louver Power Cord Power Cord Louver Air Filter [IM-21CNE, 30CNE} [IM-45NE, 65NE, 100NE, 130NE] Top Panel Top Panel Power Cord Front Panel (Upper) Slope Storage Bin Handle Slope Air Filter... -
Page 6: Unpacking
5) Remove the shipping tape holding the bin control switch by opening the bin door and reaching in. Bin Control Bin Control Bin Control Switch Switch Switch Bin Door Bin Door Bin Door [IM-21CNE, 30CNE] [IM-240NE] [IM-45NE, 65NE, 100NE, 130NE] Bin Control Switch Bin Control Switch Bin Door Bin Door [IM-100CNE]... -
Page 7: Location
15cm 15cm Right Left Rear Front 15cm 15cm ICEMAKER 15cm ICEMAKER Front [IM-21CNE, 30CNE/CWNE, 45CNE, 240WNE] [IM-240NE] * No clearance required on sides * No clearance required on sides Side View Side View 30cm 15cm Rear Front Rear Front 30cm... -
Page 8: Electrical Connections
Contact your local water treatment professional or Hoshizaki service agent. - C h a n g e t o t h e “ f u l l d r a i n f l u s h ” m o d e i s recommended. -
Page 9: Operating Instructions
ENGLISH [Connection to the drain] [IM-100CNE] * By means of a suitable spanner or wrench, tighten the 3/4-3/4 nipple (accessory into the Rc3/4 fitting on the bottom of the icemaker as indicated. P.T.F.E. tape and/or a suitable sealing compound should be used to obtain a leak free joint. [All Models] * Hand tighten grey flexible outlet hose (accessory) onto the R3/4 fitting on the rear of the icemaker as indicated, ensuring rubber washer is correctly positioned to obtain a leak free joint. -
Page 10: Maintenance
To prevent possible damage, do not clean the plastic parts with water above 40°C or in a dishwasher. IMPORTANT For spare parts information, contact your local Hoshizaki service agent. [a] Machine and Bin Exterior Wipe the exterior at least once per week with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe off grease or dirt. -
Page 11: Before Calling For Service
4) Either mix 5 litres of water with 18 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended Hoshizaki sanitiser as directed. 5) Soak a clean sponge or cloth with the solution, and wipe the bin liner, bin door and slope. -
Page 12: Disposal
4. WARRANTY Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects in material and/or workmanship for the duration of the “warranty period”. The warranty shall be effective for two years from the date of installation. -
Page 13: Specifications
ENGLISH SPECIFICATIONS Model IM-21CNE IM-30CNE IM-45CNE Type Air-cooled, cube ice Air-cooled, cube ice Air-cooled, cube ice Power Supply 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz Electric Consumption 240W 270W...
