Hoshizaki IM-21CNE Instruction Manual

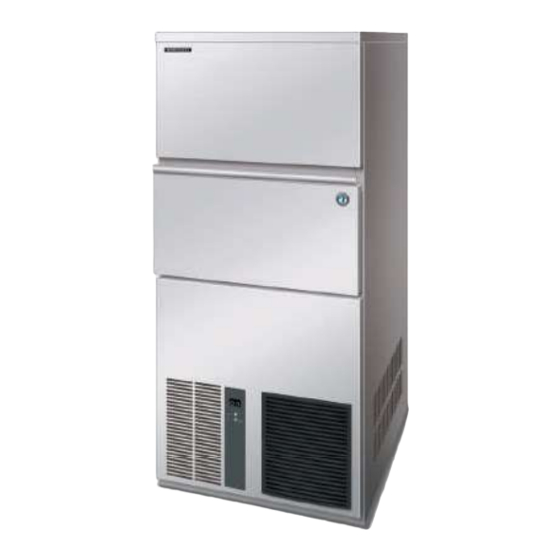

Self-contained cuber
Hide thumbs Also See for IM-21CNE:
Table of Contents

Advertisement

Quick Links

Download this manual

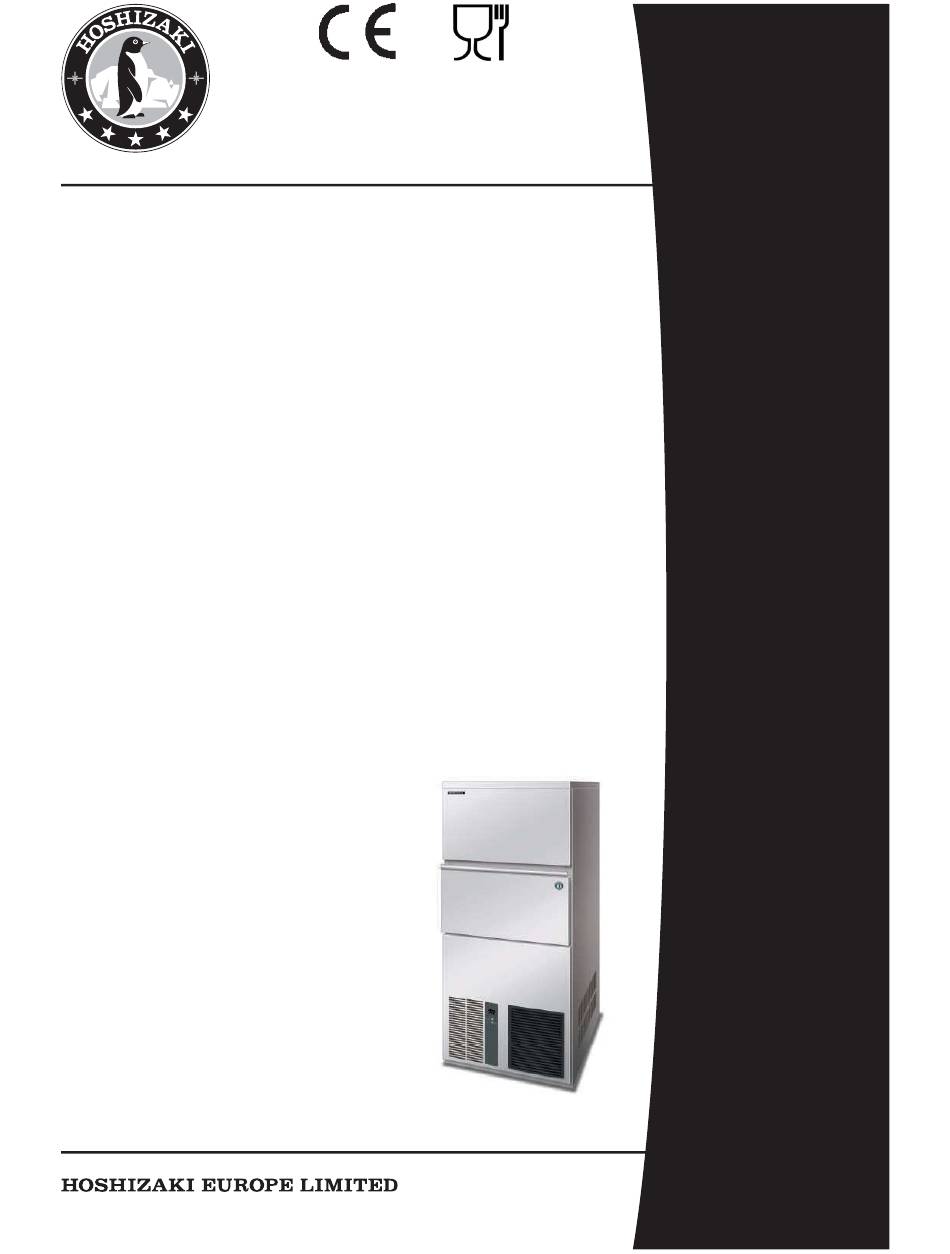

SELF-CONTAINED CUBER
MACHINE A GLACONS AUTONOME
STECKERFERTIGER WÜRFELEISBEREITER
IJSBLOKJESMACHINE MET INGEBOUWDE OPSLAGBUNKER
MÁQUINA FABRICADORA DE HIELO INTEGRADA
FABBRICATORE DI GHIACCIO IN CUBETTI A RISERVA INCORPORATA
INSTRUCTION MANUAL
(original instructions)
NOTICE D'UTILISATION
(instructions traduites)
BEDIENUNGSANLEITUNG
(Übersetzung)
GEBRUIKSAANWIJZING
(vertaalde instructies)
MANUAL DE INSTRUCCIONES
(instrucciones traducidas)
MANUALE D'ISTRUZIONI
(traduzione)
Telford 70 Stafford Park 7, Telford, Shropshire TF3 3BQ UK
IM-240NE
IM-21CNE
IM-30CNE
IM-30CWNE
IM-45CNE
IM-45NE
IM-45WNE
IM-65NE
IM-65WNE
IM-100CNE
IM-100NE
IM-100WNE
IM-130NE
IM-130WNE
IM-240NE
IM-240WNE
L1E1EC203 (011918)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM-21CNE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoshizaki IM-21CNE

Summary of Contents for Hoshizaki IM-21CNE

  • Page 1 SELF-CONTAINED CUBER IM-21CNE MACHINE A GLACONS AUTONOME IM-30CNE STECKERFERTIGER WÜRFELEISBEREITER IM-30CWNE IJSBLOKJESMACHINE MET INGEBOUWDE OPSLAGBUNKER IM-45CNE MÁQUINA FABRICADORA DE HIELO INTEGRADA IM-45NE FABBRICATORE DI GHIACCIO IN CUBETTI A RISERVA INCORPORATA IM-45WNE IM-65NE INSTRUCTION MANUAL IM-65WNE IM-100CNE (original instructions) NOTICE D’UTILISATION...

  • Page 2: Table Of Contents

    ENGLISH IMPORTANT SAFETY INFORMATION ....................1 I. INSTALLATION INSTRUCTIONS ......................3 1. CONSTRUCTION .........................3 2. ACCESSORIES ..........................3 3. UNPACKING ..........................4 4. LOCATION ...........................5 5. INSTALLATION ..........................5 6. ELECTRICAL CONNECTIONS ....................6 7. WATER SUPPLY AND DRAIN CONNECTIONS .................6 II. OPERATING INSTRUCTIONS ......................9 1. START UP ............................9 2.
  • Page 3 NEDERLANDS BELANGRIJKE VEILIGHEIDSINFORMATIE ..................51 I. INSTALLATIE-INSTRUCTIES ......................53 1. CONSTRUCTIE ..........................53 2. TOEBEHOREN ...........................53 3. UITPAKKEN ..........................54 4. PLAATSING ..........................55 5. INSTALLATIE ..........................55 6. ELEKTRISCHE AANSLUITINGEN ....................56 7. AANSLUITING VAN WATERTOEVOER- EN WATERAFVOERLEIDINGEN ......56 II. BEDIENING ............................59 1. OPSTARTEN ..........................60 2. DE IJSMAKER GEREEDMAKEN VOOR LANGDURIGE OPSLAG ...........60 III.
  • Page 4 ENGLISH IMPORTANT SAFETY INFORMATION Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit. Indicates a hazardous situation which, if not avoided, could result in death or WARNING serious injury.
  • Page 5 * If the supply cord is damaged, it must be replaced by a replacement cord available from Hoshizaki Parts/Service Centres. * Do not touch the electrical parts or operate the switches with damp hands. * This appliance is not intended for use by persons (including children) with reduced physical,...

  • Page 6: Installation Instructions

    Air Filter Louver Power Cord (Air-cooled Model) Power Cord (Air-cooled Model) Louver Air Filter (Air-cooled Model) (Air-cooled Model) [IM-45NE/WNE, 65NE/WNE, 100NE/WNE, 130NE/WNE] [IM-21CNE, 30CNE/CWNE] Top Panel Top Panel Power Cord Front Panel (Upper) Slope Storage Bin Handle Slope Air Filter...

  • Page 7: Unpacking

    5) Remove the shipping tape holding the bin control switch by opening the bin door and reaching in. Bin Control Bin Control Bin Control Switch Switch Switch Bin Door Bin Door Bin Door [IM-21CNE, 30CNE/CWNE] [IM-240NE/WNE] [IM-45NE/WNE, 65NE/WNE, 100NE/WNE, 130NE/WNE] Bin Control Switch Bin Control Switch Bin Door Bin Door [IM-100CNE]...

  • Page 8: Location

    15cm 15cm Right Left Rear Front 15cm 15cm ICEMAKER 15cm ICEMAKER Front [IM-21CNE, 30CNE/CWNE, 45CNE, 240WNE] [IM-240NE] * No clearance required on sides * No clearance required on sides Side View Side View 30cm 15cm Front Rear Front Rear 30cm...

  • Page 9: Electrical Connections

    Disconnect the main power supply before any maintenance, repairs or cleaning is undertaken. * This appliance requires a separate 220 - 240VAC, 10A [IM-21CNE, 30CNE/CWNE, 45CNE, 45NE/WNE, 65NE/WNE, 100CNE/ NE/WNE, 130NE/WNE] / 13A [IM-240NE/WNE] supply. The electrical supply must be protected by a suitable circuit breaker.
  • Page 10 The hose can be cut to length as necessary to suit position of main drain. * Hoshizaki recommends that the water-cooled condenser should be connected to a closed circuit recirculating type cooling system utilizing a tower, water chiller or similar. Water make up should be via a ball valve/break tank arrangement.
  • Page 11 ENGLISH Model IM-30CW/45W: 295 - 760W IM-65W: 875W IM-100/130W: 1165W IM-240W: 5235W * Pipes between the cooling tower and the icemaker should be at least 20 mm DIA to reduce pressure loss, even though the * Pressure loss in the water circuit inside the unit will be 5 to 6 m * Select a circulating pump referring to the above values of heat Potable Water Inlet G3/4...

  • Page 12: Operating Instructions

    ENGLISH Potable Water Potable Water Inlet G3/4 Inlet G3/4 Cooling Water Outlet Rc1/2 Inlet Hose Inlet Hose Drain Outlet R3/4 Drain Outlet R3/4 Cooling Water Inlet Rc1/2 Cooling Water 1/2-3/4 Nipple Inlet Rc1/2 1/2-3/4 Nipple Cooling Water Outlet Rc1/2 Inlet Hose Inlet Hose Outlet Hose Outlet Hose...

  • Page 13: Preparing The Icemaker For Long Storage

    1) Either mix 1 litre of water with 4 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended Hoshizaki sanitiser as directed. 2) Soak the scoop in the solution for more than 3 minutes. Rinse thoroughly, and shake to remove surplus liquid.

  • Page 14: Before Calling For Service

    4) Either mix 5 litres of water with 18 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended Hoshizaki sanitiser as directed. 5) Soak a clean sponge or cloth with the solution, and wipe the bin liner, bin door and slope.

  • Page 15: Disposal

    4. WARRANTY Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects in material and/or workmanship for the duration of the “warranty period”. The warranty shall be effective for two years from the date of installation.

  • Page 16: Specifications

    ENGLISH Hoshizaki Taiwan TEL: +886 2 2706 8818 FAX: +886 2 2708 7999 SPECIFICATIONS Model IM-21CNE IM-30CNE IM-30CWNE Type Air-cooled, cube ice Air-cooled, cube ice Water-cooled, cube ice Power Supply 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz...
  • Page 17 ENGLISH Model IM-100CNE IM-100NE IM-100WNE Type Air-cooled, cube ice Air-cooled, cube ice Water-cooled, cube ice Power Supply 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz Electric Consumption 630W 630W 540W Ice Production per 24h 85kg (5mm) / 95kg (15mm) 85kg (5mm) / 95kg (15mm)
  • Page 18 ENGLISH Model IM-30CNE IM-30CWNE Type Air-cooled, cube ice Water-cooled, cube ice Power Supply 1 phase 220 - 230V 60Hz 1 phase 220 - 230V 60Hz Electric Consumption 270W 245W Ice Production per 24h 24kg (5mm) / 27kg (15mm) 24kg (5mm) / 27kg (15mm) (ambient 10°C, water 10°C) (ambient 10°C, water 10°C) Dimensions...
  • Page 19 ENGLISH Model IM-100CNE IM-100NE IM-100WNE Type Air-cooled, cube ice Air-cooled, cube ice Water-cooled, cube ice Power Supply 1 phase 220 - 230V 60Hz 1 phase 220 - 230V 60Hz 1 phase 220 - 230V 60Hz Electric Consumption 650W 650W 600W Ice Production per 24h 88kg (5mm) / 98kg (15mm) 88kg (5mm) / 98kg (15mm)
