- Page 1 VISION SENSOR CS 50 – VISION SENSOR CS 50 – QUICK START INSTRUCTIONS QUICK START INSTRUCTIONS CS 50 CS 50 VISION SENSOR VISION SENSOR QUICK START INSTRUCTIONS QUICK START INSTRUCTIONS...
- Page 2 IP 192.168.0.10 / Sub 255.255.0.0 To ensure a stable connection, static IP addresses should ¡ be used in thenetwork. If multiple CS 50 sensors are being used, the IP addresses must be confi gured to prevent a network confl ict.
-
Page 3: Sensor Ports
VISION SENSOR CS 50 – QUICK START INSTRUCTIONS CS50 SENSOR PORTS SENSOR PORTS The following table lists the ports used by the CS 50 Sensor for communication. Port Number Protocol Name 49059 49049 49050 PIC/LIVE 49200 REPORT 49202 REPORT/CONTROL 49201... -
Page 4: The First Steps
Edit the Job After you have created a new job, loaded a job from your PC, or uploaded a job from the CS 50, you will proceed to the Edit view to refi ne your machine vision job. The Camera parameters allow you to set Gain, Exposure, Focus, Trigger, and Lighting. - Page 5 Clear the inspection counts. ¡ Save the Job Click the Save icon to save the job to the smart CS 50‘s fl ash memory. Note: The Save icon shows a popup menu of jobs, allowing you to overwrite existing jobs or to create a new job.

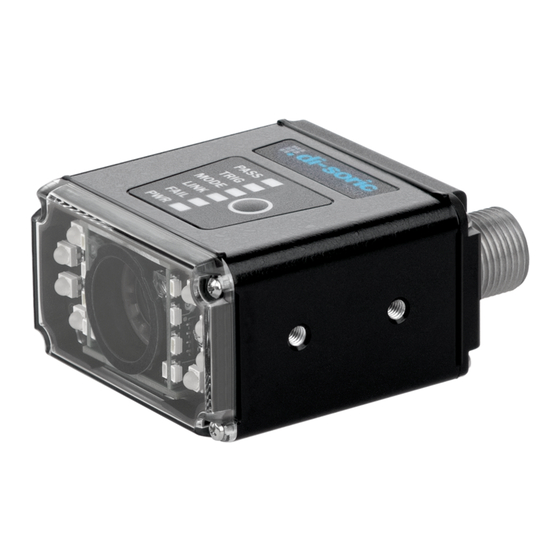

- Page 6 THE CS 50 FEATURES. TOP PERFORMANCE FOR NUMEROUS APPLICATIONS. Vision Sensor CS 50 – the world‘s smallest Vision Sensor off ers powerful performance with easy handling for numerous verifi cation tasks in the area of industrial application – the very best performance for completeness checks, rotation verifi cations, presence checks, counting objects and much more.
- Page 7 It discharges measured parts outside of the user-defi ned limits. ¡ LOGIC The Logic tool makes it possible to make connections among CS 50 boolean results simply and logically. The connections make it possible to combine multiple tool results and pass these along to ¡...
-
Page 8: Technical Data
VISION SENSOR CS 50 – QUICK START INSTRUCTIONS CS 50 VISION SENSOR TECHNICAL DATA Outstanding performance at up to 2,520 checks / minute ¡ Image export over FTP ¡ Interchangeable light, fi lter and polarizer ¡ Option of simultaneous feature detection and measurement of multiple ¡... - Page 9 VISION SENSOR CS 50 – QUICK START INSTRUCTIONS CS 50 CS 50 CS 50 BM2-2-ES-G1 BM2-4-ES-G1 BM2-4L-ES-G1 BM2-2-ES-G5 BM2-4-ES-G5 BM2-4L-ES-G5 Housing dimensions 25.4 / 44.5 / 44.5 mm 25.4 / 44.5 / 44.5 mm 25.4 / 44.5 / 44.5 mm...
- Page 10 VISION SENSOR CS 50 – QUICK START INSTRUCTIONS CS 50 VISION SENSOR TECHNICAL DATA Field of vision, focal length 5/10 mm all specifications in mm Field of vision, focal length 16/32 mm 84x62 42x31 54x40 42x32 27x20 30x22 22x16 21x16...
- Page 11 VISION SENSOR CS 50 – QUICK START INSTRUCTIONS Plug M12, 12-poled Socket M12, 8-poled Port A: Power I/O Wire color Port B: Ethernet Trigger brown V (+) Power blue V (-) Not used white V (-) Not used green TX (-)
- Page 12 VISION SENSOR CS 50 – QUICK START INSTRUCTIONS CHECKING AND UPDATING THE FIRMWARE Ensure that the device fi rmware corresponds ¡ to the software version. Option to check using AutoVision: ¡ “Help > About AutoVision” The version must always correspond to the camera ¡...
- Page 13 CS 50 Software’s simple Device Firmware Update feature – Throughout the process, ensure that a proper makes it easy to download and install fi rmware on your CS 50. power supply is maintained. Interrupting the To download and install fi rmware: power supply during the fi...
-
Page 14: Troubleshooting
1. The network connection to the PLC is reestablished and the CS 50 obtains another valid IP address over the PLC. 2. The user waits through a 5 min timeout and then the CS 50 reappears in the network under a DHCP address. - Page 15 Possible cause: The following ports are required for complete communication and function of all CS 50 devices and may not be closed by firewalls or other anti-virus software. In the event of malfunctions, please get in touch with your IT department and keep the following list available for enabling or checking ports.
- Page 16 VISION SENSOR CS 50 – QUICK START INSTRUCTIONS PART 2 OF THE QUICK START INSTRUCTIONS TROUBLESHOOTING Despite ports being enabled for AutoVision, the device is still not visible in the network. ¡ Possible solution: Adding a new fi rewall rule that generally allows communication for all programs over the required ports.
- Page 17 Provided that the IP address is known, you can go to the Network Overview tool that is always included in the AutoVision installation and click the “Add Device by IP” button to add the IP address of the CS 50. Save it by clicking AutoVision installation and click the “Add Device by IP”...
