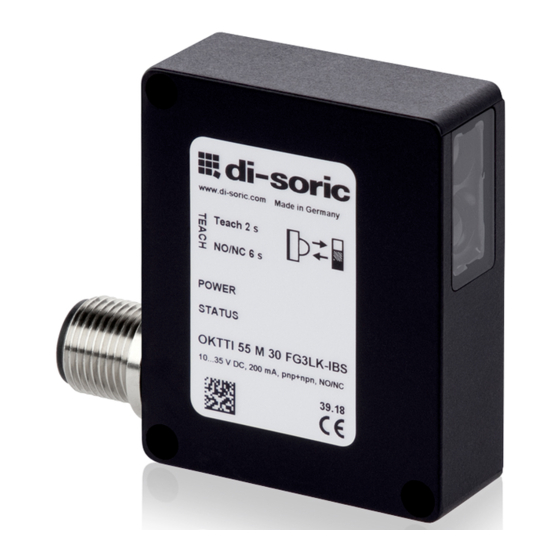

OKTTI 55 M 30 FG3LK-IBS
Optischer Kontrasttaster
Optical contrast sensor
Détecteur de contraste optique
di-soric GmbH & Co. KG
203675
Steinbeisstraße 6
DE-73660 Urbach
Germany
Tel: +49 (0) 7181/9879-0
info@di-soric.de ∙ www.di-soric.com
Stand 19.09.20, Änderungen vorbehalten
As of 09/19/20, subject to change
État 19.09.20, sous réserve de modifications

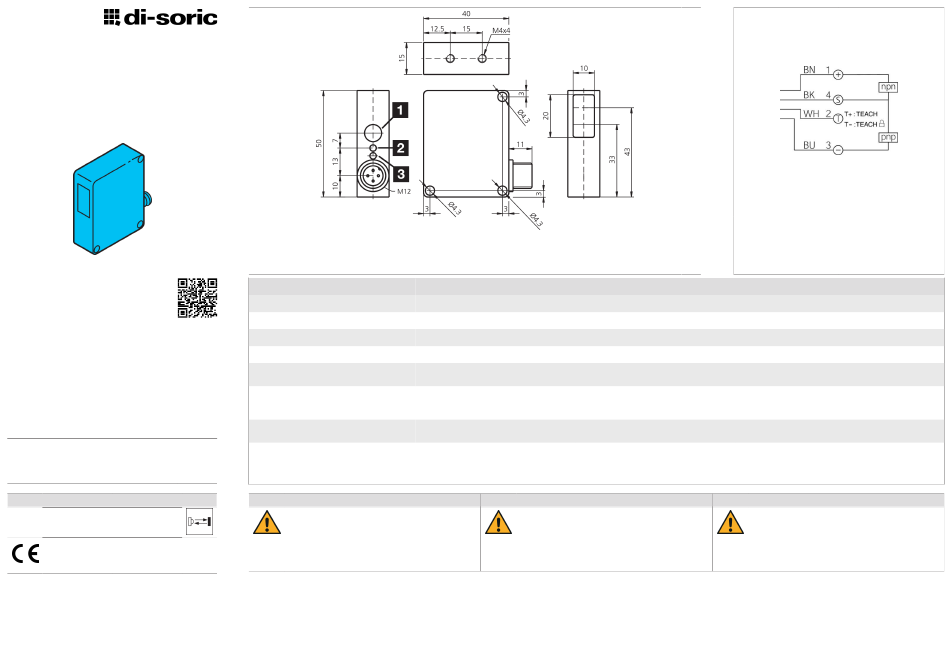

Funktion / Function / Fonction
1) Taste TEACH / TEACH key / Touche APPRENTISSAGE
2) LED STATUS / LED STATUS / LED STATUT
Technische Daten
Technical data
Sendelichtquelle
Transmitter light source
Lichtfarbe
Light color
Betriebsspannung
Service voltage
Leerlaufstrom (max.)
No-load current (max.)
Schaltausgang
Switching output
Gehäusematerial
Housing material
Umgebungstemperatur Betrieb
Ambient temperature during operation
Schutzart
Protection type
Sicherheitshinweise
Allgemeiner Sicherheitshinweis
WARNUNG! Kein Sicherheitsbauteil gemäß 2006/42/
EG und EN 61496-1 /-2! Darf nicht zum Personen-
schutz eingesetzt werden! Nichtbeachtung kann zu
Tod oder schwersten Verletzungen führen! Nur bestim-
mungsgemäß verwenden!
3) LED AUSGANG / LED OUTPUT / LED SORTIE
Caractéristiques techniques
Source lumineuse émetteur
Couleur de lumière
Tension de service
Courant de marche à vide (max.)
Sortie de commutation
Matériau du boîtier
Température ambiante de fonctionne-
ment
Indice de protection
Safety instructions
General safety notice
WARNING! Not a safety component pursuant to
2006/42/EG and EN 61496-1/-2! May not be used for
personal protection! Non-compliance can lead to death
or serious injuries! Only use as directed!
BK : schwarz / black / noir
BU : blau / blue / bleu
mm
BN : braun / brown / marron
WH : weiß / white / blanc
+20°C, 24 V DC
LED
Weiß / White / Blanc
10 ... 35 V DC
40 mA
Gegentakt, 200 mA, NO/NC / Push-pull, 200 mA, NO/
NC / Push-pull, 200 mA, NO/NC
Zinkdruckguss, schwarz (lackiert) / Die-cast zinc,
Black (painted) / Zinc moulé sous pression, Noir
(Peint)
-10 ... +60 °C
IP 67
Consignes de sécurité
Consigne de sécurité générale
AVERTISSEMENT ! Ce produit n'est pas un composant
de sécurité au sens des règlementations 2006/42/CE
et NF EN 61496-1/-2 ! Ne pas l'utiliser pour la protec-
tion des personnes ! Le non-respect de cette consigne
peut entraîner la mort ou des blessures graves ! N'utili-
ser le produit que selon son utilisation conforme !
