blueMatic EAV
(12 V)
Automatic Locking System with
Motor Operated Opening
Installation, Operating and
Maintenance Instructions
After installation please pass on these instructions
to the end customer. (Disclosure obligation stipula-
ted in the Product Liability Act.)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the blueMatic EAV and is the answer not in the manual?

Questions and answers

Related Manuals for Winkhaus blueMatic EAV

Summary of Contents for Winkhaus blueMatic EAV

  • Page 1 EAV (12 V) Automatic Locking System with Motor Operated Opening Installation, Operating and Maintenance Instructions After installation please pass on these instructions to the end customer. (Disclosure obligation stipula- ted in the Product Liability Act.)

  • Page 2: Instructions Bluematic Eav

    The automatic locking system with motor operated opening can be easily installed, if these operating instructions and the door specifications indicated have been adhered © Aug. Winkhaus GmbH & Co. KG. All rights reserved. Last revised: 01/2017 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de...

  • Page 3: Table Of Contents

    3.6.2.2 Control of swing door opener (integra 1 and 2) Page 42 3.6.3 Sash side non-Winkhaus access control system (e.g. Fingerprint IDENCOM BioKey INSIDE or ekey home SE micro) Page 43 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 4 Power supply Page 60 Antenna/Reader unit Page 60 Wireless remote control Page 61 Cable transition STV-KÜ-T1 FT Page 62 Accessories Page 64 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 5: Important Information

    The proper functions of the access control systems and the accessories included in the scope of delivery of the Winkhaus company have been tested. If you use components made by other companies and if you have any doubts about the suitability of these components, you will have to contact the respective manufacturer to ensure their fitness for use.

  • Page 6: Use Contrary To The Intended Purpose

    DIN standards, which may also apply are to be followed, also. The stipulations for use as intended have been met, once the Winkhaus fittings are: • installed according to their defined function and the installation specifications, •...

  • Page 7: Explanation Of Symbols

    It is imperative that you follow the measures listed to avoid hazard to safety! DANGER! Accessories Danger to life or danger of serious injuries. CAUTION! Danger of material damage. NOTICE! Useful information and tips. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 8: Important Safety Information

    • Winkhaus shall not be liable for any type of damage caused by inadequate repair or changes made. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de...

  • Page 9: Abbreviations/Explanations

    Technical Break contact specifications NO-NC Changer contact ANT/GND Auxiliary antenna/Ground UP-socket Flush-type box Accessories Light emitting diode Ground wire Neutral wire Phase Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 10: Product Description

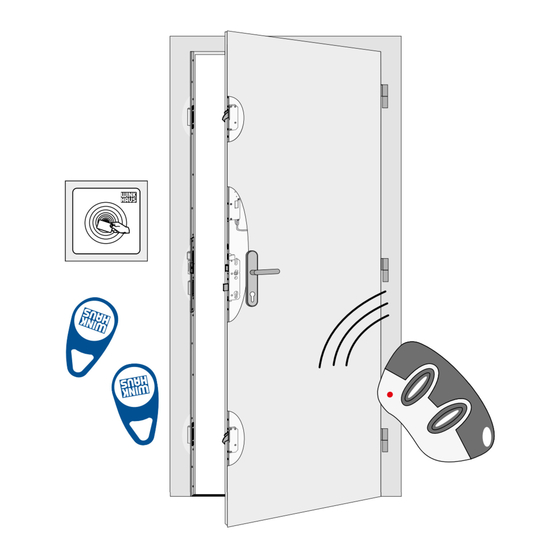

    01/2017 Product description The blueMatic EAV (automatic locking system with motor operated opening) is a state- of-the-art locking unit for securing and locking entry doors in a contact-free manner. The hooks can be retracted electrically so as to open the door.
  • Page 11 Errors Troubleshooting Technical specifications Accessories Figure 2-2: blueMatic EAV with accessories and frame power supply STV-NETZTEIL RAHM. 12 V DC 1,5 A Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 12 “Open” button Flush-type box Handle remaining components recommended for use, or should be used alternatively Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 13 STV-AV3-F1662 L79/40 A9 92/8 M2 RS/LS GR 5017263 5017264 STV-AV3-F1662 L79/45 A9 92/8 M2 RS/LS MC 5007906 5007905 STV-AV3-F1662 L79/45 A9 94/8 KABA M2 RS/LS MC 5011749 5011748 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 14 STV-AV3-F2060 L79/55 A9 92/10 M2 RS/LS MC 5014869 5014868 STV-AV3-F2060 L79/60 A9 92/10 M2 RS/LS MC 5006103 5006101 STV-AV3-F2060 L79/65 A9 92/8 M2 RS/LS MC 5014863 5014862 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 15 STV-AV3-F2460 L79/50 A9 92/8 M2 RS/LS MC 5014939 5014940 STV-AV3-F2460 L79/55 A9 92/8 M2 RS/LS MC 5030628 5030629 STV-AV3-F2460 L79/65 A9 92/8 M2 RS/LS MC 5014881 5014880 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 16 STV-AV3-U2462 L79/45 A9 92/8 M2 RS/LS GR 5017257 5017258 STV-AV3-U2462 L79/45 A9 94/8 KABA M2 RS/LS MC 5009975 5009976 STV-AV3-U2462 L79/45 A9 92/10 M2 RS/LS MC 5023003 5023004 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 17 5015506 5015505 specifications STV-AV3-U2488 L79/35 A9 92/8 M2 RS/LS MC 5014946 5014947 STV-AV3-U2488 L79/35 A9 92/8 M2 RS/LS GR 5014918 5014930 Accessories Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 18 If the automatic door drive is triggered at another point of time, malfunctions can be caused. • If the main hook is unlocked manually, the door may not be actuated electrically. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 19 Timber/Composite entrance doors. Select the respective keeps according to the profile systems in the current program manual (see program overview - group 2). Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 20 Latch plate (accessory/spare part) STV-LATCH PLATE A-9/91 TAFA FA MC (standard) 5011393 STV-LATCH PLATE A-10/9 TAFA FA MC 5011392 (less pressure) Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 21 PVCu/plastic or aluminum) conceals the routing for the required cable reserves to prevent possible cable damage. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 22 ALU (with fitting groove 24 mm), suitable for example for heroal D92 UD NOTICE! If no separable cable transition (eg. STV-KÜ M1188) or no Winkhaus cable transition is used, then the STV-cable 6 m for motor housing (2522881) must be used.
  • Page 23 Power supply Errors External power supply Troubleshooting Power supply unit for blueMatic EAV with 100 - 240 V, 50/60 Hz, 12 V DC, 2 A, to be installed on a top hat mounting rail Technical specifications STV-HT POWER SUPPLY 12 V DC/2A...
  • Page 24 Unless you are using a Winkhaus power supply unit, please keep in mind the following information: • exclusively for blueMatic EAV, 12 V DC (direct current), stabilized, min. 1,5 A • For further external loads (e.g. intercom, LED lighting, video systems etc.), sepa- rate or designed power supplies must be used.
  • Page 25 You have to connect the following parts directly with the door opener when using/ connecting a door opener: varistor at AC/free-wheeling diode at DC. Reason: Protection of the relay from wear. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 26: Installation

    Instructions blueMatic EAV 01/2017 Installation Routing details For installing the blueMatic EAV it is required to rout out for standard three-point lo- cking system and additionally the motor housing, as shown in the following diagrams. D = Backset G = Handle position...
  • Page 27 Errors Troubleshooting Technical Situation latch/ specifications daytime latch (TaFa) Accessories Situation motor housing Figure 3.1-2: installation situations for blueMatic EAV Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 28: Cable Transition Stv-Kü-T1 Ft (Sash- + Frame Part)

    Fasten the frame part 2 3 with the fitting screw 5 Ø 3 x 20 mm Figure 3.2-1: STV-KÜ-T1 FT with cover plate and frame part 1 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 29 Provide cable reserve of about 3 - 5 cm Fitting screw (includet in for the spring tension behind the sash part 1 of delivery from sash part) the cable transition. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 30 Frame part Sash part Cover plate F20 Figure 3.2-4: Routing dimensions for STV-KÜ-T1 FT and cover plate F16 or F20 (dimensions in mm) Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 31: Installations

    If the operating voltage has been applied (start-up), the motor brings the locking points into the neutral position. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 32: General Connection Diagram

    * with potential free contact systems * ** no necessary screened cable Figure 3.3.1-1: General connection diagram Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 33: Access Control System Transponderset

    Connect the cable of the antenna to the reader/control unit. • We recommend: Lay a reserve pipe from the antenna to the reader unit. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 34 12 V DC/2 A connection N PE 230 V/50 Hz Figure 3.4-2: Installation of the transponder reader Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 35: Access Control System Wireless Remote Control

    Connect “0 V DC” - with the brown wire of the cable transition “Auxiliary antenna/ANT” (not required) “Auxiliary antenna/GND” (not required) Figure 3.5.1-1: Terminal assignment of the wireless receiver Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 36 12 V DC/2 A box for cable connection L N PE 230 V/50 Hz Figure 3.5.1-2: Installing the wireless receiver Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 37: Wireless Receiver (Separate)

    Insert the circuit board of the remote according to figure 3.5.2-2 and connect it to the control of the additional application (for example to the garage door control unit). Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 38 • Deactivation by actuating the remote after about 1 sec. it will be deactivated control once more. automatically. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 39: Non-Winkhaus Access Control System

    Product • We recommend the Winkhaus power supply STV-HT NETZTEIL 12 V DC/2 A (Art.-No. description 2469777) or the frame power supply STV-NETZTEIL RAHM. 12 V DC 1,5 A (2 A/2 S) (Art.-No. 5038587) to use.
  • Page 40 Detail B: Connections frame part STV-KÜ-T1 RT Ka- bel 4M or signal line frame power supply 12 V DC Figure 3.6.2-1: Wiring blueMatic EAV and fingerprint ekey home integra (sash side) Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de...
  • Page 41 40 m extendable Detail B: Connections signal input frame power supply 12 V DC Figure 3.6.2-2: Wiring blueMatic EAV and Fingerprint ekey home integra and frame power supply Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de...

  • Page 42: Control Of Additional Applications (Only Integra 2)

    3.6.2.2 Control of swing door opener (integra 1 and 2) • By using of an blueMatic EAV with a swing door opener a second cable transition (e.g. STV-KABELÜBERGANG KÜ-T1-STV-FL 3,5M, Art.-No. 4990599 + STV-KÜ-T1 RT KABEL 4M, Art.-No. 5040503) have to be used.

  • Page 43: Sash Side Non-Winkhaus Access Control System (E.g. Fingerprint Idencom Biokey Inside Or Ekey Home Se Micro)

    5 with the Y-KABEL ZK FLÜGEL-EAV 3 . Errors CAUTION! Troubleshooting With the combination blueMatic EAV + access control, the power requirement must not to be fraught more than 2 A! Technical With the combination with frame power supply STV-NETZTEIL RAHM. 12 V DC specifications the power supply should be charged max.
  • Page 44 Detail A: Connections frame part STV-KÜ-T1 RT Kabel 4M or signal line frame power supply 12 V DC Figure 3.6.3-1: Wiring blueMatic EAV in connecting with sash side access control systems (e.g. Finger- print IDENCOM BioKey INSIDE or ekey home SE micro) Aug.
  • Page 45 Detail A: Connections signal input frame power supply 12 V DC Figure 3.6.3-2: Wiring blueMatic EAV in connecting with sash side access control systems (e.g. Finger- print IDENCOM BioKey INSIDE or ekey home SE micro) and frame power supply Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de...

  • Page 46: Non-Winkhaus Access Control System Fingerprint Sommer Entrasys Fd

    EAV 4 . CAUTION! With the combination blueMatic EAV + access control, the power requirement must not to be fraught more than 2 A! With the combination with frame power supply STV-NETZTEIL RAHM. 12 V DC the power supply should be charged max.
  • Page 47 Detail B: Connections frame part STV-KÜ-T1 RT Kabel 4M or signal line frame power supply 12 V DC Figure 3.6.4-1: Wiring blueMatic EAV and Fingerprint Sommer ENTRAsys FD (sash side) Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de...
  • Page 48 40 m extendable Detail B: Connections signal input frame power supply 12 V DC Figure 3.6.4-2: Wiring blueMatic EAV and Fingerprint Sommer ENTRAsys FD and frame power supply Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de...

  • Page 49: Operation/Programming

    Hold a programmed transponder chip within (0 - 8 cm) of the antenna. • Once the transponder chip is close enough to where it can read the information, communication is established contact free. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 50: 4.2.2 Programming

    If you do not swipe the transponder chip across the antenna for a period of 5 seconds, the teach-in mode will be stopped. The reader unit returns to operating mode. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de...
  • Page 51 Keep the programming cards at a safe place to prevent any kind of misuse. If you lose the cards, the reader unit will have to be exchanged in its entirety! Please contact customer service in such a case. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 52: Bluematic Eav With Wireless Remote Control

    If no remote control has been programmed (for example after “delete-all” function), it would apply to all remote controls. The teach-in mode can be started with any remote control. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 53 3) Press buttons A and B n n n short, 3 times is “completely deleted” (of a programmed remote (non programmed remote control) simultaneously control) Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 54 Display Memory full: The memory has been filled to capacity (max. 85 buttons), if the teach-in button of a new wireless remote control is used and both LED displays of the receiver flash simultaneously. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 55 Keep the button pressed until the LED goes off. • Then release the button immediately. The display is a binary code: LED green = 1, LED red = 0 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 56: Wireless Receiver For Additional Applications (E.g. Garage Door Control Units)

    Now it is not possible to save additional wireless remote controls. This condition is in- dicated in the teach-in mode by both LED displays flashing simultaneously three times. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de...

  • Page 57: Maintenance And Care

    • Clean electronic parts only in a dry state. Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 58: Errors/Causes/Troubleshooting

    • Operating forces too • check installation (keep high, faulty installation alignment, air gap, etc.) Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 59 • Remote battery dead • Replace battery in remote with remote control, control red LED is not illumi- Technical specifications nating. Accessories Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 60: Technical Specifications

    Data memory: max. 250 transponder chips Reader technique: Prox reader (EM 4102, Hitag) Power consumption: max. 100 mA Voltage: 12 V DC Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 61: Wireless Remote Control

    Wireless receiver (separate) Receiver type: Superheterodyne Modulation: AM/ASK Frequency: 433.92 MHz Frequency of the local oscillator: 6.6128 MHz Intermediate frequency: 10.7 MHz Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 62: Cable Transition Stv-Kü-T1 Ft

    STV-KÜ-T1 RT KABEL 4 M with 4 m cable and cable end sleeves • STV-KÜ-T1 RT KABEL 0,6 M RNT with 0.6 m cable and plug for frame power supply Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 63 Connection cable 3 m (3 x 0,25 mm²) 1. cable end with 3-pole plug for receiver ENTRAsys FD 2. cable end with plug for motor housing EAV Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...

  • Page 64: Accessories

    Use for motor blueMatic EAV as alternative too STV-KÜ-T1 FT 2M or STV-KÜ-T1 FT 3,5M. STV-HT CABLE 6 M FOR MOTOR 2522881 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 65 U ≥ 22 x 5 mm 94 mm RZ Errors NOTICE! Troubleshooting Suitable for fire and smoke protection doors (with steel latch). Technical specifications Accessories Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 66 Systems or systems for the evaluation and inspection of the performance reliability of the construc- tion product in accordance with Annex V of the Construction Products Regulation (CPR): System 1 Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 67 4. Signed for and on behalf of the manufacturer by: Meiningen, 17/02/2015 ppa. Dr. D. Warnow ppa. A. Dinkelborg Technical Director Director of Product Management Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de Subject to technical changes...
  • Page 68 Aug. Winkhaus GmbH & Co. KG Berkeser Straße 6 D-98617 Meiningen T + 49 (0) 3693 950-0 F + 49 (0) 3693 950-134 www.winkhaus.de tuerverriegelung@winkhaus.de...
