SPHINX Myth 9

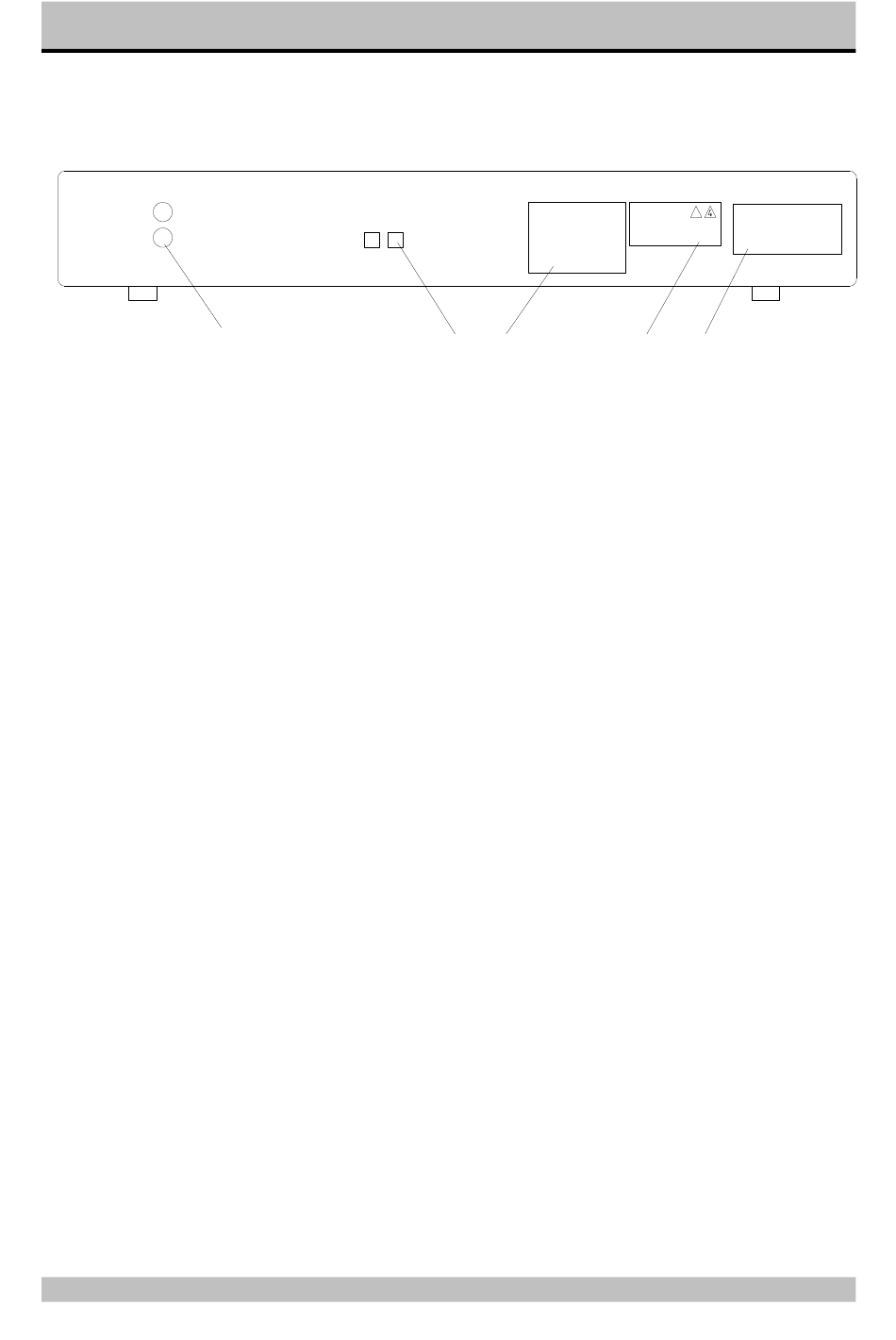

Rear panel

OUTPUT
L
R
1. OUTPUT L and R: Connect this to the CD input
of the amplifier.
2. Control IN and OUT: To connect the optical
cable from the pre-amplifier and to the next
Sphinx component (e.g. tuner).
3. Manufacturer's label: This shows important
data for the component, such as serial number
and mains power voltage.
CONTROL
IN OUT
1
Service Manual
AC Voltage: 230V/60Hz.
Fuse: 0,5 AT
Max. Power: 40 W
Made in The Netherlands
Manufactured by :
Sphinx Laboratories
2 3
4. Warning!: This shows important information
about the safety regulations for the Myth 9.
5. AC Power: Connect the mains cable to a mains
power outlet (100 - 240 VAC). Mains power
switch for the CD player.
The mains fuse is placed behind the cover.
Warning!
!
Do not open!
High voltage inside!
Do not expose this unit
to rain or moisture.
4
5
5
