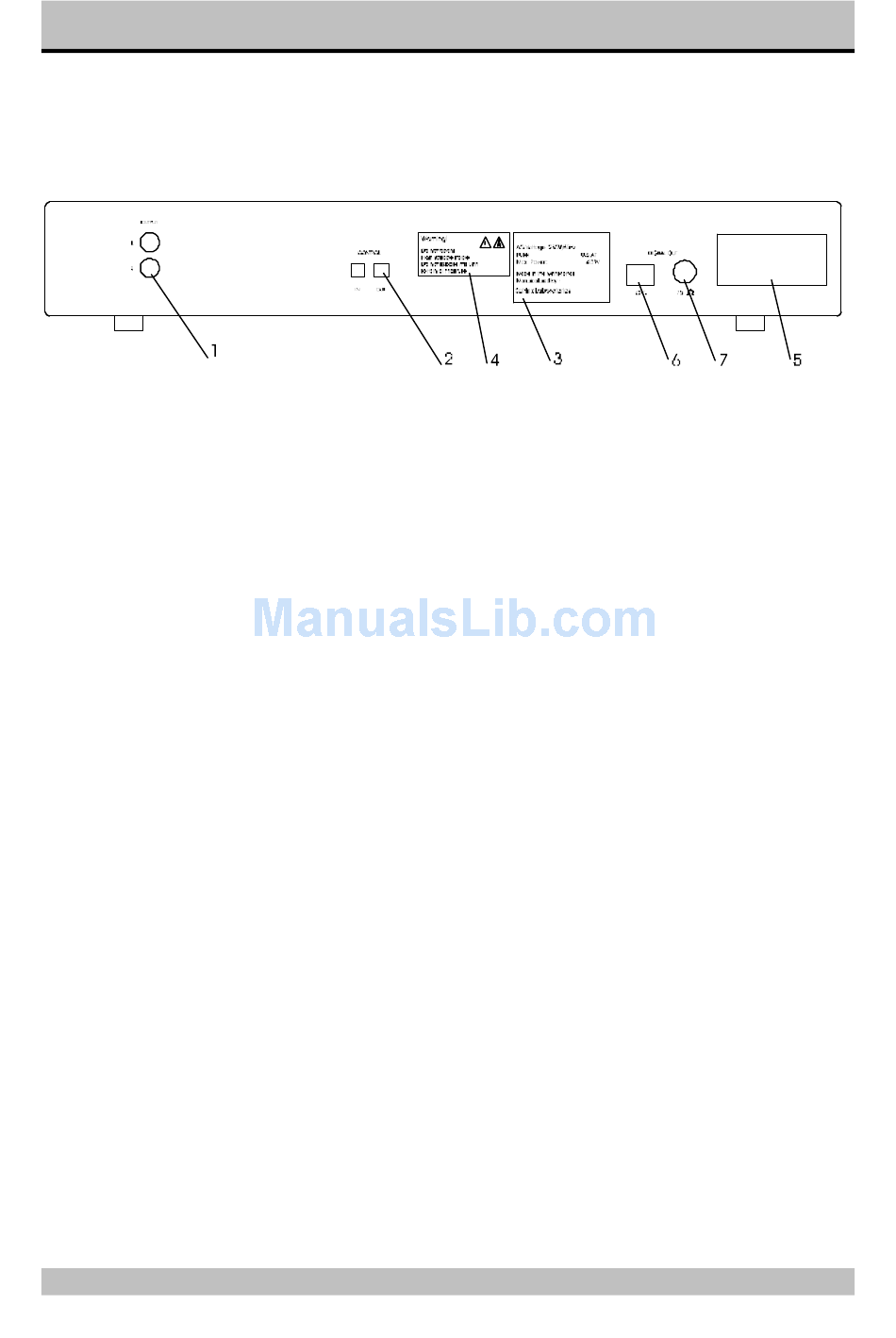

Rear panel

1. OUTPUT L&R: Connect this to the left en right
CD inputs of the amplifier.
2. Control IN & OUT: To connect the optical cable
from the pre-amplifier and to the next Sphinx
component (e.g. tuner).
3. Manufacturer's label: This shows important
data for the component, such as serial number
and mains power voltage.
4. Warning!: This shows important information
about the safety regulations for the Myth 9 Mk2.
SPHINX
5. AC Power: Connect the mains cable to a
mains power outlet (100 - 240 VAC).
The mains fuse is placed behind the cover.
6. Digital out: TOSHLINK digital output (optical)
for digital interlink with a separate DAC
module.
7. Digital out: COAX digital output (75 Ohm) for
digital interlink with a separate DAC module.
