Summary of Contents for Safety 1st onBoard 35

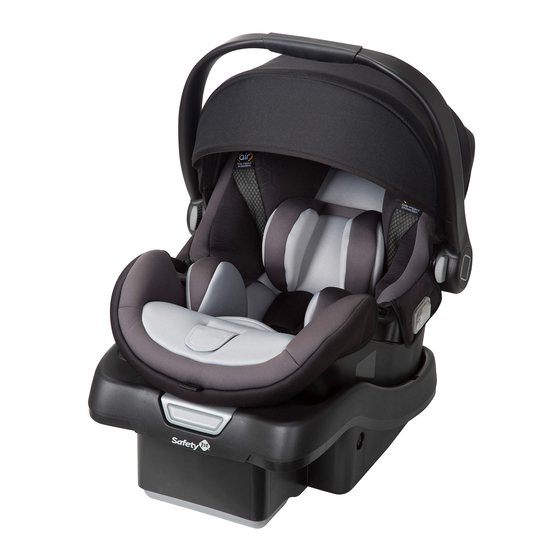

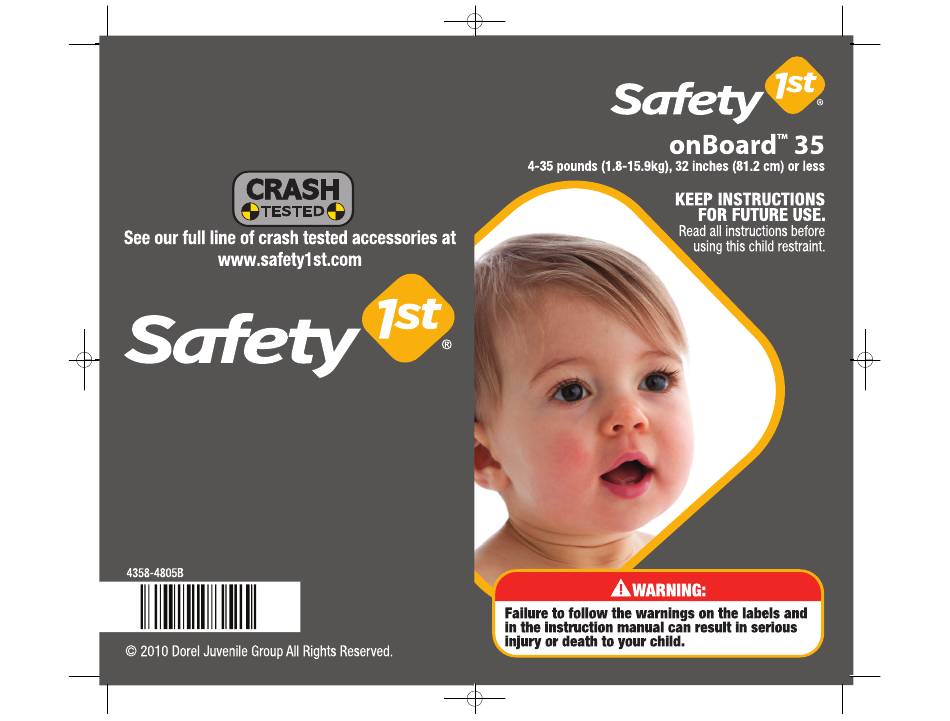

  • Page 1 4358-4805B US onBoard 35 11/22/10 3:25 PM Page 1...
  • Page 2 4358-4805B US onBoard 35 11/22/10 3:25 PM Page 3 A. Before You Begin ....Pages 3-8 D. General Vehicle Installation . . .Pages 31-38 A-1 Thank You...

  • Page 3: Registration And Safety Notices

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 5 A-2 Registration and Safety Notices A-1 Thank You... Thank you for choosing this car seat, referred to throughout Please complete the postage-paid registration card that this manual as a child restraint. The DJG family is committed came with your child restraint, and send it to us.
  • Page 4 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 7 Back View A-3 Understanding Your Child Restraint Front View Handle Adjustment Base Release Handle Lever Carrier (shell) Handle Lock Indicator Removable Base Angle Indicator Harness System Detail Chest Clip Harness Straps...
  • Page 5 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 9 Bottom of Carrier Top of Base Base Belt Path LATCH Storage Door Openings LATCH Belt Base/Carrier Lock Bar (under storage door) Base Release Lever Harness Tightening Strap Harness Slots Harness Straps...

  • Page 6: Vehicle Seating Position

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 11 B-3 Child Restraint Use Failure to follow these warnings can result in the This child restraint must only be used when serious injury or death of your child. To help you the child weighs between 4-35 lbs.
  • Page 7 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 13 C-1 Remove and Install the Carrier to Base C-2 Reclining the Base (on select models) Depending on your model, the base may have 2 recline To Remove Carrier from positions. Use any of these to help you achieve the recline Base angle needed for the weight of your child.

  • Page 8: Carrier Use

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 15 WARNING: C-3 Carrier Use Read ALL instructions before using child restraint as To Adjust Carrying Handle a carrier. NEVER use carrier unless child is properly secured. Squeeze both adjustment levers on each side of For use as a carrier by children weighing less than 35 handle.

  • Page 9: Child Restraint To Fit Child

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 17 C-4 Child Restraint Use C-5 Preparing Child Restraint to Fit Your Child This child restraint is to be used rear-facing with children weighing 4-35 lbs (1.8-15.9 kg) AND 32 inches (81.2 cm) tall Make these adjustments with your child in the child or less.
  • Page 10 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 19 Unbuckle Harness Choose new location and push the metal clip Press red button. Pull buckle through pad and carrier. tongues out. Place harness Make sure the buckle is straps over sides of child facing out.
  • Page 11 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 21 Check Harness Height From the bottom, pull the metal clip through the With child in the child carrier and insert it into the restraint, check the location middle slot. of the harness slot.

  • Page 12: Securing Child In Child Restraint

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 23 Rethread harness into new C-6 Securing Child in Child Restraint harness slot location. Make sure harness straps Position Harness do not twist. Straps Over the Child’s Shoulders. From the back of the child...

  • Page 13: Removing Child From Child Restraint

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 25 Tighten Harness C-7 Removing Child From Child Restraint Pull on harness Loosen Harness tightening strap to tighten harness snugly. Press on harness release NOTE: A snug strap should lever while pulling on both not allow any slack.

  • Page 14: Removing Harness System

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 27 C-8 Removing Harness System C-9 Removing Pad for Cleaning Remove Harness Straps You must remove the harness system to remove the from Splitter Plate pad from the plastic shell. Fully loosen harness straps.
  • Page 15 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 29 Cleaning Pad C-10 Canopy Use and Installation Hand wash pad with warm sudsy water, rinse clean and air dry. Spot clean the harness straps. Do not use bleach or use Thread Plastic Strip other harsh cleaners.

  • Page 16: Infant Insert

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 31 C-11 Infant Insert C-12 Installing Harness System Thread the Harness To Remove Head/Hip Straps Roll Starting on the left side, Undo the fastening strips insert harness in the and pull the infant insert out...

  • Page 17: Understanding Your Vehicle

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 33 D-1 Understanding Your Vehicle D-2 Vehicle Seating Position Your vehicle’s features may be considerably different than Some seating positions in your vehicle may not be safe for those pictured here. Consult your vehicle owner’s manual to this child restraint.

  • Page 18: Choosing Latch Or Vehicle Belts

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 35 Not all vehicle belts will work with this child restraint. This D-3 Choosing LATCH or Vehicle Belts child restraint must be tightly locked in place at all times, during travel. You must determine if your vehicles belts are...

  • Page 19: Using The Locking Clip

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 37 • Switchable retractor These vehicle belts switch from ELR to ALR (Automatic Locking Retractor). You must have the vehicle belts in the Do not use both the LATCH belt and vehicle locking mode to use them.
  • Page 20 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 39 Attach Locking Clip D-6 Installing on Aircraft Thread both portions of the This restraint is certified vehicle belt onto the locking for aircraft use. clip, as close to the latch plate as possible.

  • Page 21: With Latch

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 41 E-1 Rear-Facing Installation with Base E-2 Preparing to Install Base with LATCH Remove LATCH from Storage Open storage door and remove the LATCH system. Thread LATCH Belt Thread the LATCH belt through belt path as shown.
  • Page 22 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 43 Hook LATCH to Vehicle LATCH Anchor Failure to securely attach carrier to base can Fasten one LATCH belt hook result in serious injury or death. to the anchor in the vehicle...
  • Page 23 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 45 Tighten Vehicle Belt E-4 Installing Base with Vehicle Belts Push down firmly on the base and pull up on the shoulder belt to tighten Do not use the LATCH system along with the vehicle lap or lap/shoulder belt.
  • Page 24 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 47 Check for Proper E-5 Rear-Facing Installation without Base Recline Check the angle indicator. The ball should be between the two marks on the indicator that matches the weight of your child. Adjust base if needed.
  • Page 25 4358-4805B US onBoard 35 11/22/10 3:26 PM Page 49 Check the Angle E-6 Installing Carrier with Indicator Vehicle Belts The ball should be between the two marks on Place Child Restraint in the indicator that matches Vehicle Rear-Facing the weight of your child.

  • Page 26: Warranty

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 51 Warranty Dorel Juvenile Group, Inc. (DJG) warrants this product to the original retail purchaser as follows: This product is warranted against defective materials or workmanship for one year from the date of original purchase. An original receipt is required to validate your warranty.

  • Page 27: Replacement Parts Order Form

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 53 Replacement Parts Order Form Complete the form below. Your model number with color code and manufacturer date code MUST be included on the form to ensure proper replacement parts. Your model number with color code and the date code can be found on a sticker on the side of child restraint.

  • Page 28: Replacement Parts List

    4358-4805B US onBoard 35 11/22/10 3:26 PM Page 55 Replacement Parts List NOTE: If requested color is not available, similar color will be substituted. Part Cost Quantity Total Cost Buckle Strap/Buckle . .$6.99 X ______= $ ______________ Harness Strap ..$2.00 X ______= $ ______________ Pad Set .
