Siemens RUGGEDCOM ANT1995-4MM Operating Instructions

Antenna for global navigation satellite systems.
Hide thumbs


Advertisement

RUGGEDCOM
Operating Instructions
ANT1995-4MM
Antenna for global navigation satellite systems
RUGGEDCOM antenna for use in GPS, GLONASS and Galileo sys-
tems.
Order number: 6GK6000-8NS01-1AA0
For use with:
RUGGEDCOM RX1400
Copyright © Siemens Canada Limited 2016
All rights reserved
The reproduction, transmission or use of this document or its con-
tents is not permitted without express written authority. Offenders
will be liable for damages. All rights, including rights created by
patent grant or registration of a utility model or design, are re-
served.
Disclaimer of Liability
We have checked the contents of this manual for agreement with
the hardware and software described. Since deviations cannot be
precluded entirely, we cannot guarantee full agreement. However,
the data in this manual are reviewed regularly and any necessary
corrections included in subsequent editions. Suggestions for im-
provement are welcome.
Technical data subject to change without prior notice.
Siemens Canada Limited
Industry Sector
300 Applewood Crescent
Concord, Ontario
Canada, L4K 5C7
Classification of Safety-Related Notices
This manual contains notices which you should observe to ensure
your own personal safety, as well as to protect the product and
connected equipment. Notices relating to your personal safety are
highlighted by a warning triangle; notices relating to property dam-
age only do not have a warning triangle. Warnings in descending
order according to the degree of danger are shown as follows.
Danger
indicates that death or severe personal injury will result if
proper precautions are not taken.
Warning
indicates that death or severe personal injury can result if
proper precautions are not taken.
Caution
with a warning triangle indicates that minor personal injury
can result if proper precautions are not taken.
Caution
without a warning triangle indicates that damage to prop-
erty can result if proper precautions are not taken.
Notice
indicates that an undesirable result or status can occur if
the relevant notice is ignored.
A5E39415407A-AA
Release 07/2018
English
1
Overview

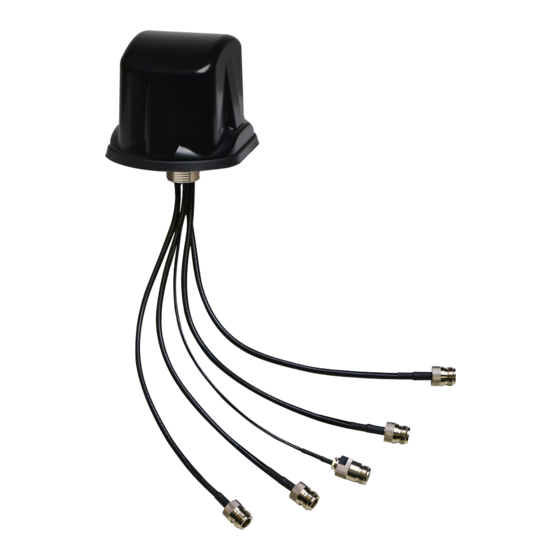

The ANT1995-4MM antenna is a compact multi-
band LTE MIMO and IEEE 802.11 antenna with
GPS/GLONASS. It is ideal for vehicles with limited
mounting space, as well as other machine-to-
machine applications.
Features
 Dual 4G LTE, IEEE 802.11 Wi-Fi and GPS L1/GLONASS
frequencies
 Quick, easy installation/replacement
 UV resistant housing
2
General safety notices
Warning
Devices installed outdoors must be within the area cov-
ered by a lightning protection system. Make sure all con-
ducting systems entering from outdoors can be protected
by a lightning protection potential equalization system.
When implementing a lightning protection concept, make
sure to adhere to the VDE 0182 or IEC 62305 standard.
Warning
The device (and its components) may only be used for the
application described in the catalog or operating instruc-
tions. It may only be combined with devices or compo-
nents of other manufacturers that have been approved
and released by Siemens.
Correct and safe operation of the device is guaranteed
only when it is transported, stored, set up, installed, used
and maintained according to the recommendations.
3
Qualified personnel
Only qualified personnel should be allowed to install and
work on this equipment. Qualified persons in the sense of the
safety-related notices in this manual are defined as persons
who are authorized to commission, to ground, and to tag cir-
cuits, equipment, and systems in accordance with estab-
lished safety practices and standards.
4
Components of the Product
The following components are supplied with the ANT1995-
4MM:
1 x ANT1995-4MM Antenna
1 x Slotted lock nut
1 x Operating Instructions
Make sure the consignment received is complete. If it is not
complete or there are signs of external damage, contact the
supplier or a local Siemens office.
5
Recycling and Disposal
For environmentally friendly recycling and disposal of this ac-
cessory, contact a facility certified to dispose of waste electri-
cal and electronic equipment. Disposal must be done in ac-
cordance with local regulations.

Advertisement

Table of Contents

   Summary of Contents for Siemens RUGGEDCOM ANT1995-4MM

  • Page 1 RUGGEDCOM RX1400 When implementing a lightning protection concept, make sure to adhere to the VDE 0182 or IEC 62305 standard. Copyright © Siemens Canada Limited 2016 All rights reserved The reproduction, transmission or use of this document or its con- Warning tents is not permitted without express written authority.
  • Page 2 12. Make sure the outer seal  on the antenna is properly seated and has formed a proper seal between the mount- ing surface and antenna. 13. Connect the cables to the associated RUGGEDCOM RX1400. For more information, refer to the RUGGED- COM RX1400 Installation Guide [https://support.industry.siemens.com/cs/document/109 480955].
  • Page 3 Dimension Drawing Radiation Patterns All dimensions are in millimeters (mm). LTE 850 MHz LTE 1900 MHz LTE 2600 MHz...
  • Page 4 (SR). To locate a local hotline center, visit http://www.automation.siemens.com/mcms/aspa- db/en/automation-technology/Pages/default.aspx.  Mobile App Install the Industry Online Support app by Siemens AG on any Android, Apple iOS or Windows mobile device and be able to: Access Siemens' extensive library of support documentation, including FAQs and manuals...
