Raritan PXE Quick Setup Manual

Raritan PXE

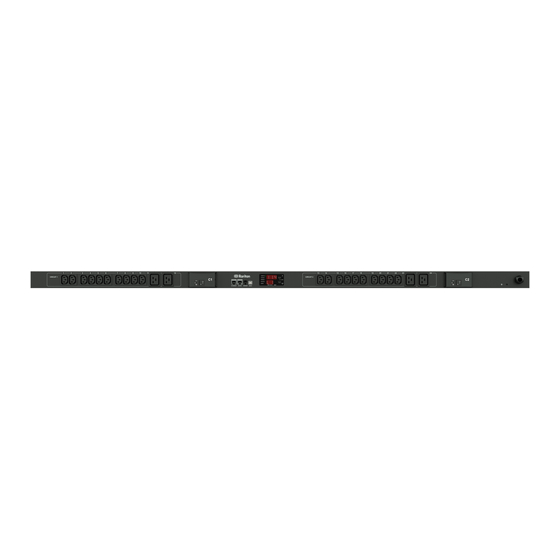

Thank you for purchasing the PXE intelligent power distribution unit (PDU).
The intended use of the PXE is distribution of power to information technology equipment such as computers and communication
equipment where such equipment is typically mounted in an equipment rack located in an information technology equipment room.
This Quick Setup Guide explains how to install and configure the PXE. For further details on using the PXE, access online help from
the application, or download the user guide from Raritan's
information on this release, see the latest release notes on the Support page.
Safety Precautions
WARNING! Read and understand all sections in this guide
before installing or operating this product. Failure to heed any
of the following WARNINGS may result in electric shock, fire,
personal injury and death. Prior to operating this product, the
user should read the online help and specifically the warnings
in the online help.
WARNING! Connect this product to an AC power source
whose voltage is within the range specified on the product's
nameplate.
WARNING! Connect this product to an AC power source that
is current limited by a suitably rated fuse or circuit breaker in
accordance with national and local electrical codes.
WARNING! Use this product in a dry location.
WARNING! Connect this product to a protective earth ground.
Never use a "ground lift adaptor" between the product's plug
and the wall receptacle.
WARNING! If this product is a model that requires assembly
of its line cord or plug, all such assembly must be performed
by a licensed electrician and the line cord or plugs used must
be suitably rated based on the product's nameplate ratings
and national and local electrical codes.
QS Rule
Unpacking the PXE
The PXE comes in Zero U and 1U sizes. The following
describes the equipment shipped with each size. Unpack the
components. If any pieces are missing or damaged, report
this to Raritan Technical Support, or contact the Raritan
partner where you purchased the product.
Zero U Size

One PXE

Mounting screws, brackets and/or buttons

Cable retention clips for outlets (optional)
Raritan PXE Quick Setup Guide
QSG-PXE-1C-v3.5.0-E  255-80-0007-00 RoHS
Support page http://www.raritan.com/support/
(
1U Size

One PXE

Mounting screws, brackets and/or buttons
QS Rule
Before You Begin
1. Prepare the installation site. Make sure the installation
area is clean and not exposed to extreme temperatures or
humidity. Allow sufficient space around the device for
cabling and outlet connections. Safety instructions are
provided in the PXE online help.
2. Fill out the Equipment Setup Worksheet found in the PXE
online help. Record the model, serial number, and use of
each IT device connected to the PDU's power outlets.
QS Rule
Mounting the PDU
Use one of the mounting methods to install your PXE as
appropriate.
Circuit Breaker Orientation Limitation
Usually a PDU can be mounted in any orientation. However,
when mounting a PDU with circuit breakers, you must obey
these rules:

Circuit breakers CANNOT face down. For example, do not
horizontally mount a Zero U PDU with circuit breakers on
the ceiling.

If a rack is subject to shock in environments such as boats
or airplanes, the PDU CANNOT be mounted upside down.
If installed upside down, shock stress reduces the trip
point by 10%.
Note: If normally the line cord is down, upside down
means the line cord is up.
QUICK SETUP GUIDE
). For more detailed
