ASSEMBLY, CARE AND USE INSTRUCTIONS
READ CAREFULLY
5 00 5 5 4 4
IMPORTANT:
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

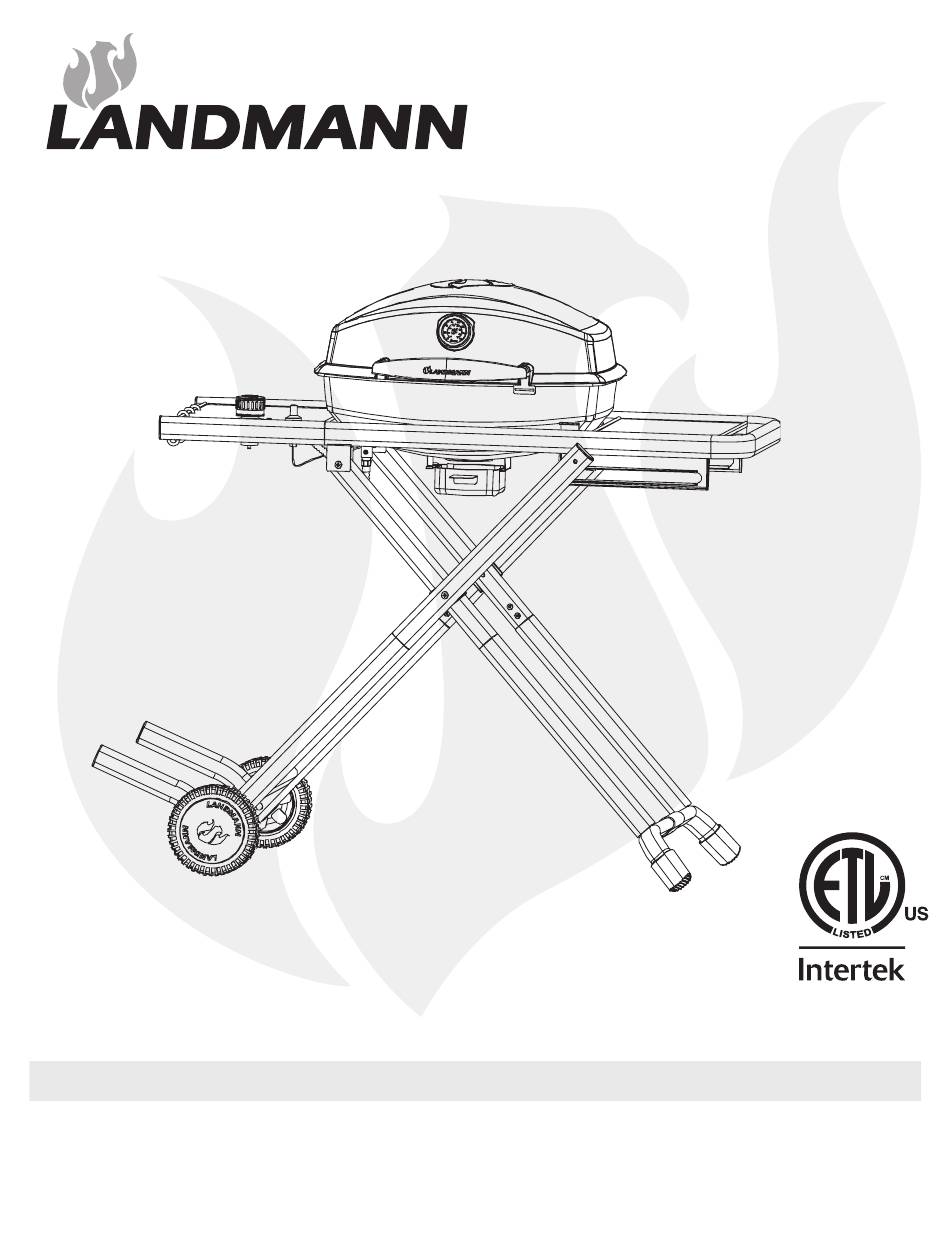

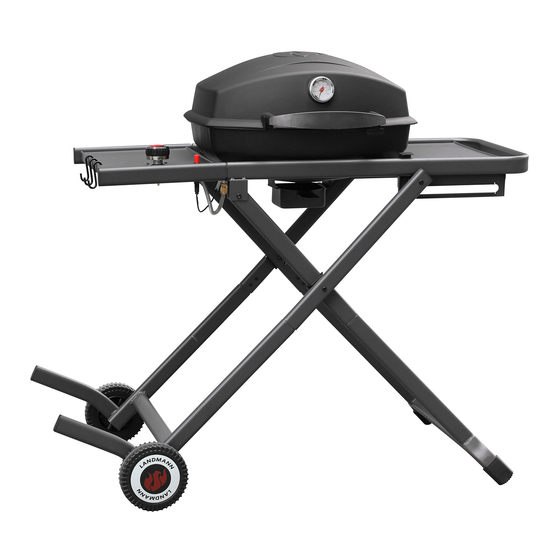

Pantera Portable
MODEL 42235/42255
Questions, problems, missing parts? Before returning to your retailer, call our custom-
er service department at: 1-800-321-3473 8:00 AM - 5:00 PM (EST) English Only,
or Email CustomerService@landmann-usa.com
1
Advertisement
Table of Contents
Related Manuals for Landmann 42255
Summary of Contents for Landmann 42255
- Page 1 5 00 5 5 4 4 IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE Pantera Portable MODEL 42235/42255 Questions, problems, missing parts? Before returning to your retailer, call our custom- er service department at: 1-800-321-3473 8:00 AM - 5:00 PM (EST) English Only, or Email CustomerService@landmann-usa.com...
-
Page 2: Table Of Contents
Heat Input: 10000BTU/h Category: Pressure regulated propane Fuel: 16.4 OZ. disposable propane cylinders Regulator: Landmann part #PT003 Assembler/Installer This instruction manual contains important information necessary for the proper assembly and safe use of this appliance. Read and follow all warnings and instructions before assembling and using this appliance. -
Page 3: Important Safety Information
Any requirements for a replacement regulator and hose assembly must be made through the manufacturer, LANDMANN-USA. DO NOT enlarge the valve orifices or burner • • This grill is an outside appliance and SHOULD ports when cleaning the valves or burners. - Page 4 Important Safety Information • If you see, smell or hear hissing of gas escaping Protable LP gas grill require a fuel delivery system from the LP gas cylinder, move away from the which is comprised of a regulator and an L.P. gas LP gas cylinder.
-
Page 5: Liquid Propane (Lp) Safety Information
Liquid Propane (LP) Safety Information Please review the below guidelines and safety information when using Liquid Propane (LP) gas. General Information • If the LP cylinder is kept in the grill between • This grill is designed certified by ETL for use with 16.4 uses, make sure to keep both the grill and ounce disposable propane cylinders. -
Page 6: Package Contents
Package Contents Part Description Quantity Lid Handle Cooking Grate Gas Grill Assembly Cart Stand Frame Tool Hook Left Side Shelf Assembly Regulator Mounting Bracket Grease Cup Cart Wheel Frame Wheel Wheel Hubcap... -
Page 7: Hardware Pack
Hardware pack A M5X10 mm Screw (x12) B M8 Nut (x2) C M4x10 mm Screw (x4) 5 Spring Washer (x10) 8 Flat Washer (x2) F Lid Handle Spacer (x1) G Lid Handle Strap Bracket (x1) Preparation Before beginning assembly of this grill, please remove all packing material and verify that all of the assembly parts are included (see Package Contents on page 6). - Page 8 Assembly Instructions Lock Lid strap B M8 Nut (x2) E Ø8 Flat Washer (x2)
- Page 9 Assembly Instructions Release Lid strap...
- Page 10 Assembly Instructions Pull and Lift up Step Lock...
- Page 11 Assembly Instructions M5x10mmScrew(x4) Ø5SpringWasher(x4) M5x10mmScrew(x4) Ø5SpringWasher(x4)
- Page 12 Assembly Instructions M5x10mmScrew (x2) Ø5SpringWasher(x2)
- Page 13 Assembly Instructions M4x10mm Screw (x4)
- Page 14 Assembly Instructions...
-
Page 15: Connecting Gas Cylinder
Connecting Gas Cylinder Installing 16.4 ounce disposable propane To prevent fire or explosion hazard cylinder when testing for a leak: NOTE: Your protable Pantera is set up from factory 1. ALWAYS perform the 'leak test' to use a 16.4 ounce disposable propane cylinder. before lighting the grill and each time the cylinder is connected for use. -
Page 16: Operation
Operation Prior to the first use, it is important to clean your grill Clean and remove the grease tray before moving with heat. This will clean the internal parts by burning the grill to prevent spills. off any residue and odor from the manufacturing Collapse the grill before moving. - Page 17 Operation SET UP Release Lid strap Pull and Lift up Step Lock Attach...
- Page 18 Operation FOLDING Remove Lift lock Lift and slowly lower grill Step Lock Lid strap...
-
Page 19: Care And Maintenance
Care and Maintenance Please use the following guidelines to keep your grill Checking the Flame clean and looking new. Before any cleaning, make The flame coming out of the burner should be a blue / sure the control knob is in the OFF position and grill yellow combination and between one to two inches tall is cool to the touch. -
Page 20: Cooking Methods And Grilling Tips
Cooking Methods And Grilling Tips Before Grilling During Grilling • Make sure that the food items are completely • The temperature gauge on the lid indicates the thawed before grilling. cooking temperature inside the grill. • With the grill lid closed, heat the grill on high for •... -
Page 21: Troubleshooting
Troubleshooting Cause Solution Problem Grill will not light. 1. Propane cylinder gas level is low. 1. Replace propane cylinder. 2. Spider webs or insect nest in venturi. 2. Clean venturi. 3. Burner ports, orifices have blockage. 3. Clean the components. 4. -
Page 22: Replacement Parts
Replacement Parts... -
Page 23: Replacement Parts
Replacement Parts Part Description Quantity Part # Parts Not Shown Temperature Gauge PT0001 Hardware Kit PT0042 Temperature Gauge Bezel PT0002 Instruction Manual PT0043 PT0003 Lid Handle Lid Strap PT0004 Grill Lid PT0005 Cooking Grate PT0006 Lid Hinge Pin PT0007 Lid Hinge Bracket PT0008 Grill Firebowl PT0009... -
Page 24: Warranty
Our customer service department can be reached at 1-800-321-3473 8:00 AM - 5:00 PM (EST) English Only, or Email CustomerService@landmann-usa.com Please note for the United States, that some state states do not allow the exclusion or limitation of incident or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
