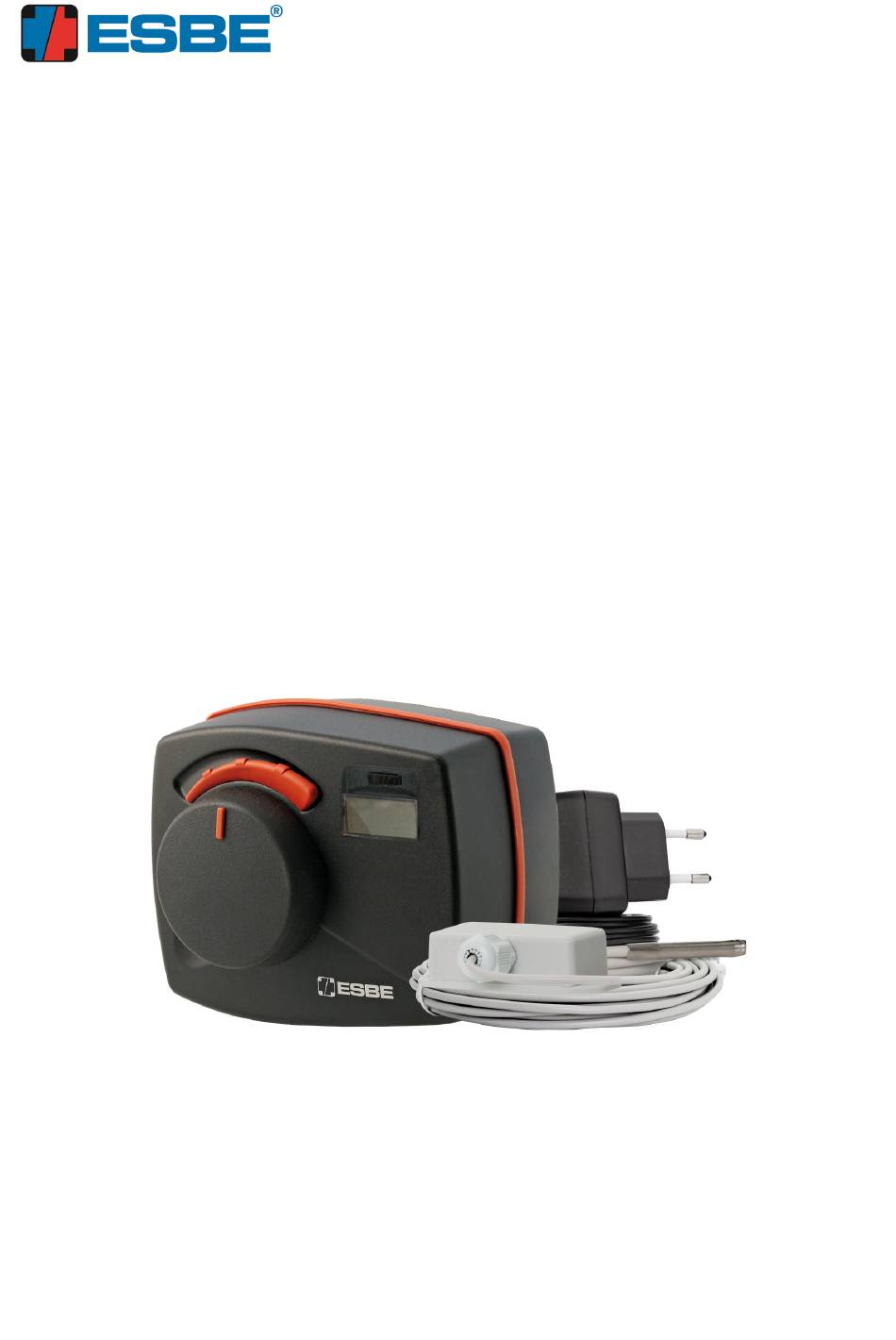

  • Page 1 CRC110 Technical description...
  • Page 2 +5ºC. This problem is taken care of in the new CRC110 there the adjustment of the curve is only made on the part of the curve that reflects the specific outside temperature. The new controller also has the possibility to use a time constant for applications where changes of the outside temperature takes several hours before affecting the indoor temperature but changes of heating supply affect the indoor climate more quickly.
  • Page 3 BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...
  • Page 4 (CRA111) after 10 minutes. The set temperature in constant temperature mode will be the last calculated flow temperature during outdoor sensor mode. SUITABLE MIXING VALVES The controller is supplied complete with an adaptor kit for easy fitting onto the following ESBE rotary mixing valves: • Series VRG100 •...
  • Page 5 BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...
  • Page 6 SELECTION INFO The CRC110 controller is the simple version of an outdoor sensor based controller in the ESBE assortment of controllers. The CRC110 is recommended for the following applications: There are advantages and disadvantage of both indoor sensor based and outdoor sensor based controllers.
  • Page 7 A change of the curve setting will affect the complete curve. The CRC110 is made different and a change of the flow temperature will only affect a part of the curve and the user doesn´t need to think about curve settings or split points. On the following pages the settings of the CRC110 will be presented and also how the different settings affect the curve.
  • Page 8 MENU The following menu is active if an outdoor sensor is connected to the controller CRC110. If the outdoor sensor is not connected it will work according to specification for CRA110. If the outdoor sensor is disconnected the controller will use the last measured outdoor temperature for the following 10 minutes and after that change mode to constant temperature controller and work according to specification for CRA110.
  • Page 9 BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...

  • Page 10: Advanced Settings Setup Menu

    BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...
  • Page 11 BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...
  • Page 12 BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...
  • Page 13 BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...
  • Page 14 BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...
  • Page 15 BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...
  • Page 16 BRUKSGATAN 22 SE-330 21 REFTELE TEL: +46 (0)371 570 000 FAX: +46 (0)371 570 010 SALES@ESBE.SE WWW.ESBE.SE · · · · VAT.NO. SE556269631901 BANK: NORDEA ACCOUNT: 4217-101200-1 SWIFT NDEASESS IBAN: SE65 3000 0000 0421 7101 2001 Technical description CRC110 rev A...
  • Page 17 Art nr: 1620 07 00 Denomination: ESBE ARA801, Auxiliary switch kit ARA600/ARA500 GSM module GSM module for activation/deactivation of offset / parallel adjustment by a cellphone. Perfect option for example for a summer house since this gives the possibility to change the characteristic heating curve from a distance.

  • Page 18: Spare Parts

    ADAPTOR KIT: Adaptor kit for different type of valves. Type: Reference: Art nr: ARA802 ESBE Series MG, G, F, BIV, H, HG 1600 04 00 ARA803 ESBE Series VRG, VRB 1600 05 00 ARA805 Meibes 1600 06 00 ARA806 Honeywell Centra Corona, Series V5433A, V5433G, V5442A,...
