STEP FUNCTIONS / COMPONENT(S)
1 All Components OFF; All Lights OFF
2 Ref Compressor ON
3 Ref Evaporator Fan ON (Comp stays ON)
4 Condenser Fan ON (Comp/Evap fan stays ON)
Drawer Fan(s) ON (Comp/Evap/Cond fan
5
switch OFF)
6 Drawer Fan(s) OFF
7 Air Purifier Light & Fan ON
8 Everything OFF (Light relay ON/Lights OFF)
9 Main Lights ON
10 Accent/Display Lights ON
EXIT Normal ON Mode
STEP FUNCTIONS / COMPONENT(S)
1 All Components OFF; All Lights OFF
2 Fre Compressor ON
3 Fre Evap Fan ON (Comp stays ON)
4 Condenser Fan ON (Comp/Evap fan stays ON)
5 Defrost Heater ON
6 Defrost Heater ON; Evap Fan ON
7 All Components OFF; All Lights OFF
8 All Lights ON
EXIT Normal ON Mode
TABLE NOTES:
The LCD will show Celsius temperatures during this mode if the appliance has been set to display Celsius units of
measure.
c
"-84 F " or "-64 " will appear in place of temperature if the thermistor is open or missing. Which one appears depends
on whether the appliance is set to display Fahrenheit or Celsius units of measure.
Previous Page
Main Menu
Built-In (BI) Series
Built-In (BI) Series

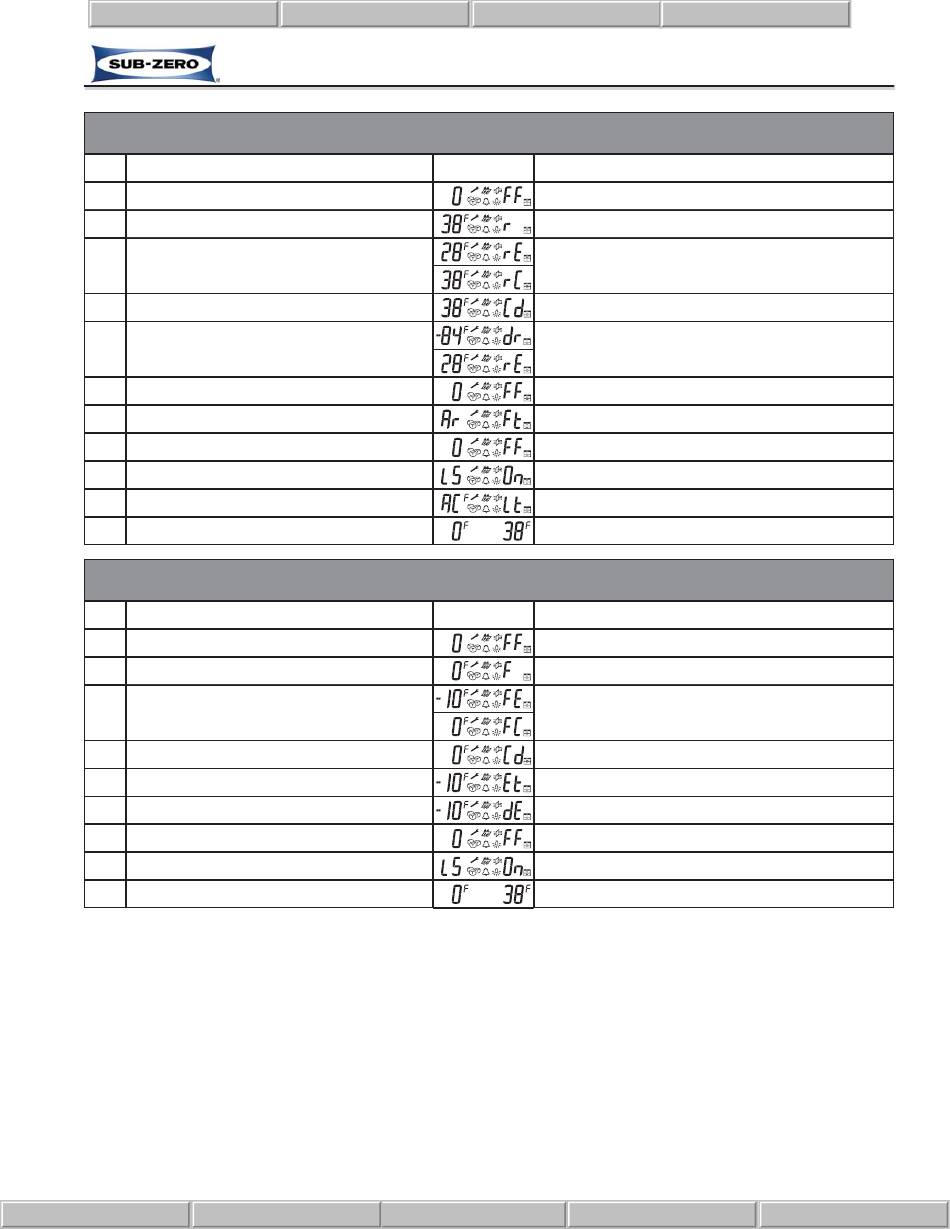

REFRIGERATOR ZONE MANUAL COMPONENT ACTIVATION TABLE
FREEZER ZONE MANUAL COMPONENT ACTIVATION TABLE
Main Menu Built-In Series Menu
Built-In Series Menu
Electronic Control System
LCD VIEW
OFF Displayed; All Lights OFF
Zone Temp & r Displayed; Actual temps will vary
Alternate Evap Temp & rE / Zone Temp & rC Display at
5 second intervals; Actual temps will vary
Zone Temp & Cd Displayed; Actual temps will vary
Alternate -84 (-64 if set Celsius) & dr / Evap Temp & rE
Display at 5 second intervals; Actual temps will vary
OFF Displayed; All Lights ON
Ar & Ft Displayed
OFF Displayed; All Lights OFF
LS & On Displayed; Main Lights ON; All else OFF
AC & Lt Displayed; All Lights ON
Press POWER to exit, or let time out
LCD VIEW
OFF Displayed; All Lights OFF
Zone Temp & F Displayed; Actual temps will vary
Alternate Evap Temp & FE / Zone Temp & FC Display
at 5 second intervals; Actual temps will vary
Zone Temp & Cd Displayed; Actual temps will vary
Evap Temp & Et Displayed; Actual temps will vary
Evap Temp & dE Displayed; Actual temps will vary
OFF Displayed; All Lights OFF
LS & On Displayed; All Lights ON
Press POWER to exit, or let time out
