Sub-Zero Built-In Series Quick Start Manual

Built-In Series Overlay Door Panel Retro-Fit Kit - For Over/Under Models
CONTAINS: QTY
2
1
1
2
2
1

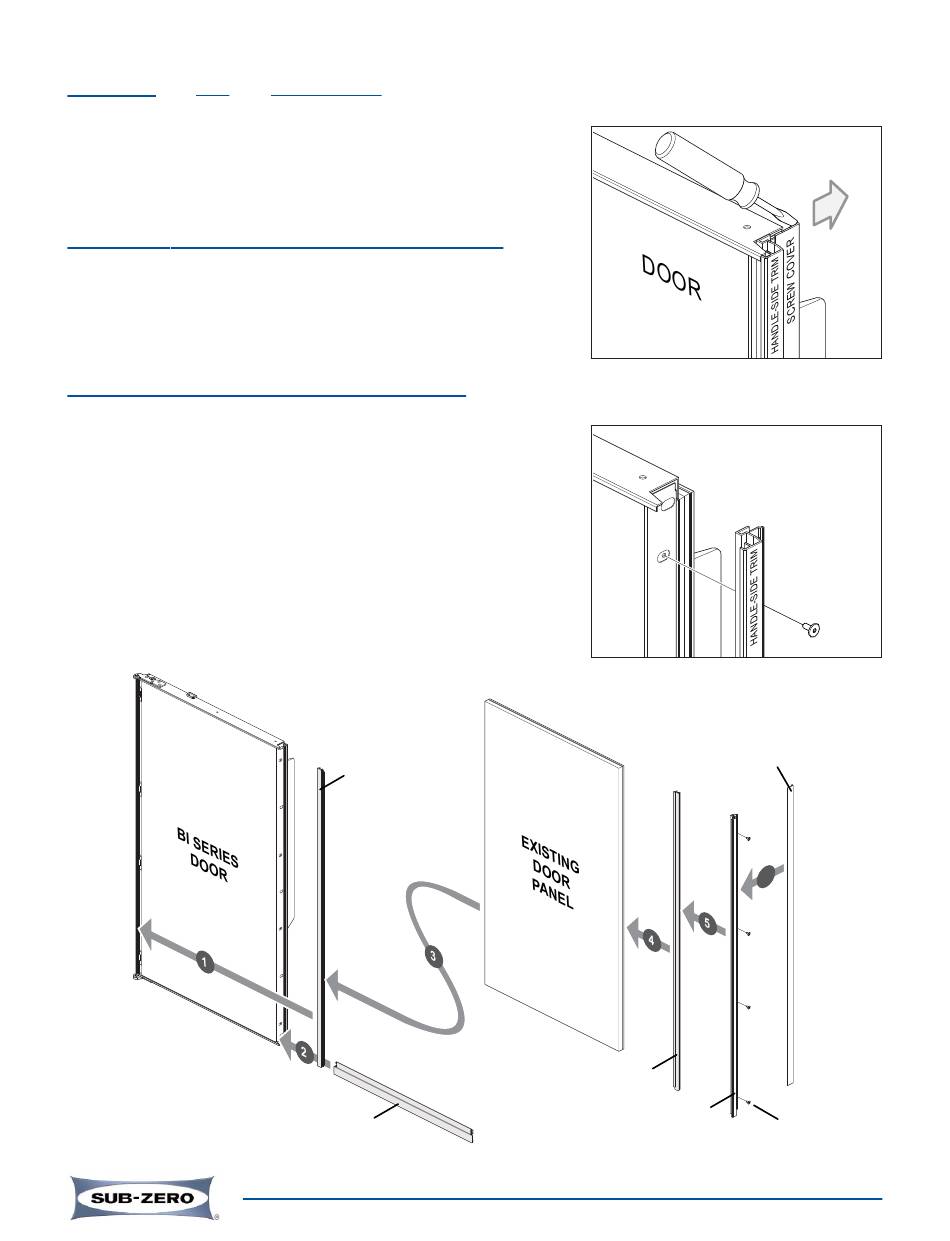

REFRIGERATOR DOOR HANDLE-SIDE TRIM REMOVAL:
1. At the top of the door, insert a flat blade screwdriver into the chan-
nel of the screw cover and push the cover away form the handle-
side trim, disengaging it from the trim (See Figure 1).
2. With a T-20, 6-lobe Torx type bit, extract the handle-side trim
mounting screws and pull the trim from the door (See Figure 2).
DOOR COMPONENTS INSTALLATION PROCEDURE(See Figure 3):
1. Install one Refrigerator Door Side Trim Filler so that it overlaps the
hinge side door trim.
2. Install the Refrigerator Door Bottom Trim Filler so that it overlaps
the bottom door trim and hooks behind the Trim Filler on the hinge
side, then secure the ends with masking tape until after the panel
is installed.
3. Install the existing 600 series door panel, then remove the tape as
mentioned in step 2 above.
4. Install the other Refrigerator Door Side Trim Filler over the edge of
the door panel on the handle side of the door.
5. Reattach the handle-side door trim.
6. Reinstall the screw cover.
BOTTOM TRIM FILLER
(7003402, 7003403)
DESCRIPTION
Refrigerator Door Side Trim Filler
Refrigerator Door Bottom Trim Filler
Freezer Drawer Bottom Trim
Freezer Drawer Side Trim Filler
Panel Grille Side Trim Filler
Instruction Sheet
HINGE SIDE
TRIM FILLER
Figure 3. Door Component Installation
Page 1 of 3
Figure 1. Screw Cover Removal
Figure 2. Handle.Side Trim Removal
HANDLE SIDE TRIM FILLER
HANDLE-SIDE TRIM
SCREW COVER
6
SCREWS
7007804 / Rev A / January, 2008
