CONTROL PANEL LAYOUT (AKA USER INTERFACE MODULE)

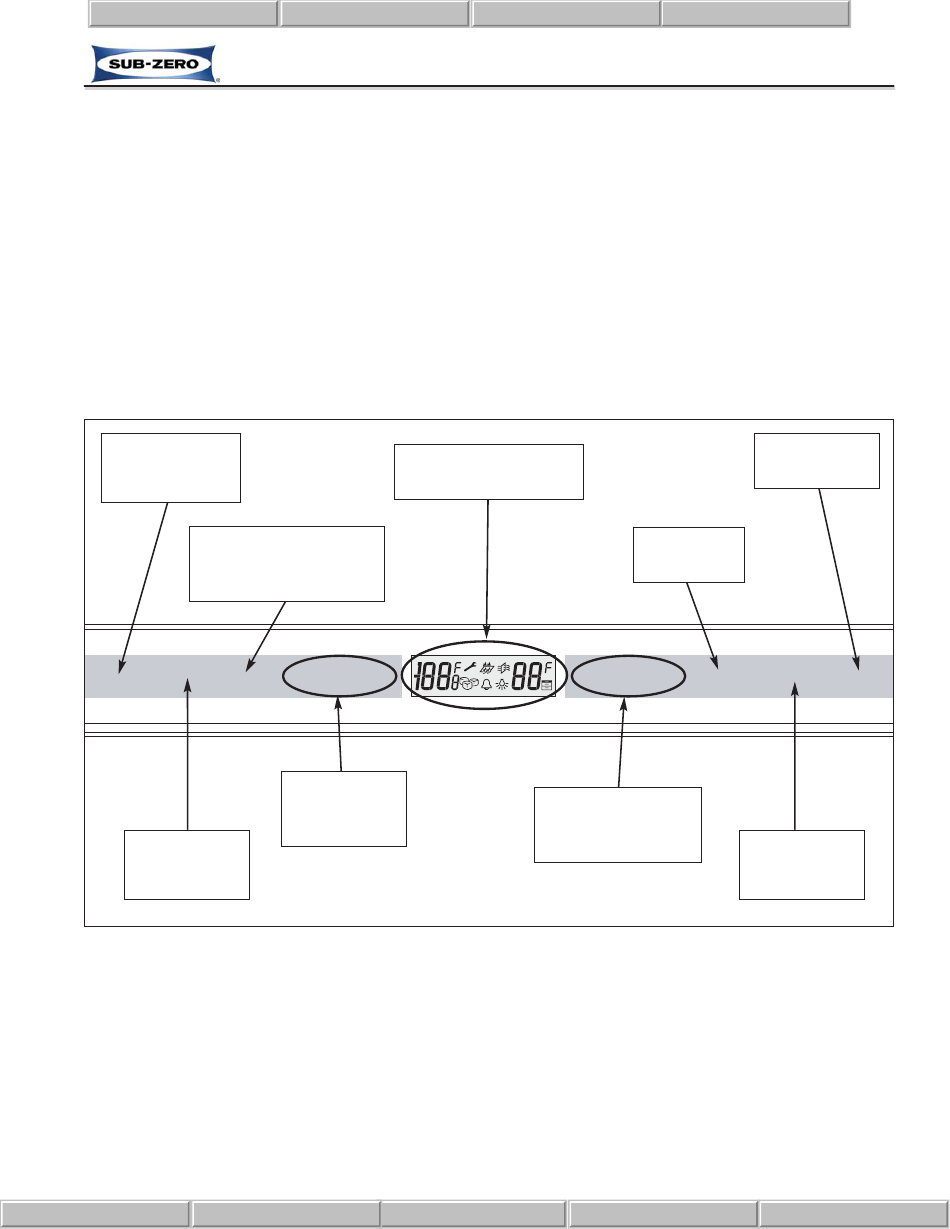

Figure 3-4 below shows the layout of the control panel assembly.
NOTES:
• Not all keys are present on all models:
- If the unit does not have a glass refrigerator door, the control panel will not have the accent LIGHTS on/off key.
- The control panel in an all-refrigerator model does not have the freezer zone COLDER and WARMER keys, nor
the ICE MAKER and MAX ICE keys.
- The control panel in an all-freezer model does not have the refrigerator zone COLDER and WARMER keys, nor
the PURE AIR key.
• The control panel keys are "capacitance touch sensitive", so even though the words "press" is used throughout
this section to indicate what to do to the keys, they actually only need to be "touched" to operate.
• Whenever a key is touched the electronic control will emit a beep.
ACCENT LIGHTS
ON/OFF KEY
units with glass
doors only
PRODUCTION ON/OFF KEY
speeds ice production
LIGHTS ICE MAKER
ICE MAKER
SYSTEM ON/OFF
KEY
Previous Page
Main Menu
Built-In (BI) Series
Built-In (BI) Series
MAXIMUM ICE
by up to 40%
MAX ICE COLDER WARMER
FREEZER ZONE
SET-POINT
ADJUSTMENT
KEYS
Figure 3-4. Control Panel Layout
Main Menu Built-In Series Menu
Built-In Series Menu
LCD
(Liquid Crystal 'Display)
COLDER
REFRIGERATOR ZONE
SET-POINT
ADJUSTMENT
3-5
Next Page
Electronic Control System
UNIT / POWER
ON/OFF KEY
AIR PURIFIER
ON/OFF KEY
WARMER PURE AIR ALARM
DOOR AJAR
KEYS
ALARM ON/OFF
#7019014 - Revision A - October, 2010
