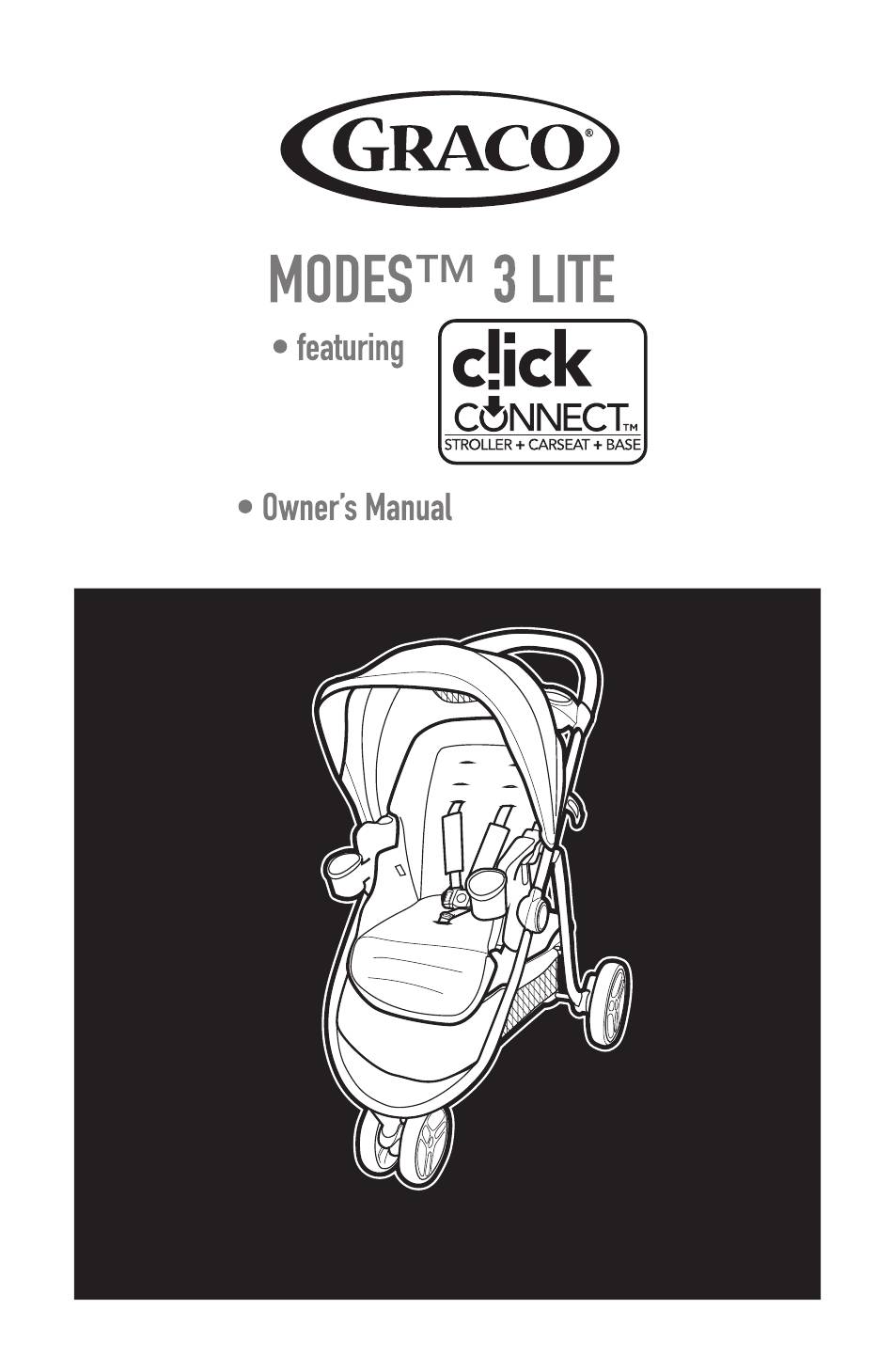

  • Page 1 MODES™ 3 LITE • featuring • Owner’s Manual ©2015 Graco PD320992A 5/15...
  • Page 2 4- 4- D ToRecline Front Seat Brakes Swivel Wheels 4-H To Attach Graco® Infant Car Seat to Toddler Seat To Attach Graco® Infant Car Seat to Stroller Frame To Fold Stroller Frame without Toddler seat To Fold Stroller with Toddler seat attached...
  • Page 3 Always use the handle (other than approved seat belt or infant carseat Graco stroller bags). Never harness. After fastening buckles, place anything on the canopy. adjust belts to get a snug fit TO PREVENT A HAZARDOUS, around your child.
  • Page 4 CAREGIVER MUST always carseat may result in serious ensure the brakes are engaged injury or death. when placing child into stroller. See Graco infant carseat owners USING GRACO® INFANT manual for maximum size of CARSEAT WITH STROLLER: child. TO AVOID INJURY TO YOUR CHILD: THIS STROLLER IS ONLY COMPATIBLE WITH GRACO®...
  • Page 5 MODES 3 LITE™ Use Positions...
  • Page 6 2-B Parts List This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service. No tools required. All models On certain models Harness covers...
  • Page 7 To Open Stroller Be sure to place stroller on top of a piece of cardboard or some other protective cover to prevent any damage to floor. 1. Open stroller lock. 2. Lift handle of stroller up.
  • Page 8 3. CHECK that the stroller is completely latched open every SNAP! time you open the stroller and before continuing with the rest of the assembly steps.
  • Page 9 Rear Wheels 1. Brake levers point toward rear of stroller. 2. Press down on brake assemblies SNAP! until they snap into place. CHECK that both brake levers are pushed down as shown.
  • Page 10 3. Insert axle rod through axle opening. Axle key must line up with key holes. 4. Place wheel on axle.
  • Page 11 5. Push straight side of pin through axle hole. Pin will separate around the axle. Curved end of pin MUST face up as shown. 6. Snap hubcap over pin as shown. Repeat steps 4-6 (Rear Wheels) on other side. SNAP!
  • Page 12 Front Wheels 1. Press and hold the spring button located in the bottom of the wheel hub down. 2. Attach front wheels to post as shown. SNAP!
  • Page 13 2. Check that wheels are securely attached by pulling on wheel assembly.
  • Page 14 Parent’s Tray 1. Insert tray into slots. 2. Make sure parent tray is snapped securely into slots on each side of the frame.
  • Page 15 To Attach/Remove Toddler Seat To Attach Toddler Seat 1. To attach seat, place seat on mounts as shown until they lock into place on both sides of the stroller. Seat may be placed on stroller in either direction. See warnings for additional information.
  • Page 16 2. MAKE SURE seat mounts are securely attached to the stroller on both sides as shown. SNAP!
  • Page 17 To Remove Toddler Seat 1. Squeeze buttons on both sides of the seat and pull up as shown.
  • Page 18 Canopy 1. Fasten hook and loop tape on the rear of canopy as shown. MAKE SURE canopy is always fastened with the hook and loop tape when used with infant carseat or when toddler seat is in use. 2. Pull forward to open canopy.
  • Page 19 3. Push backwards to close canopy. 4. Pull flap forward to open and backwards to close canopy window. 5. Pull canopy visor out for use, push back under rim of canopy when not in use.

  • Page 20: Point Harness

    To Secure Child WARNING Falling Hazard: Always use the seat belt. 5 Point Harness 1. To open, press button on buckle to release the waist straps. 2. To close, slide shoulder strap connectors onto waist straps and insert into buckle.
  • Page 21 3. Use slide adjuster at shoulder and waist for tighter adjustment. To Use slide adjuster at shoulder and change shoulder harness slots, waist for further adjustment. see page 31. Repeat on other side. Utilisez le régulateur coulissant à l'épaule et à la taille pour un ajustement plus précis.
  • Page 22 3 Point Buckle 1. To open, press button on buckle to release the waist straps. 2. Slide shoulder strap connectors off of waist straps. 3. Remove shoulder straps from stroller.
  • Page 23 4. Attach waist straps to harness buckle as shown. 5. Use slide adjuster at waist for tighter adjustment. 6. To open, press button on buckle to release the waist straps.
  • Page 24 Adjusting Shoulder Harness position Shoulder harness anchor—larger child Shoulder harness anchor—smaller child Slide adjuster...
  • Page 25 1. Push harness anchor through the front of the seat then re-insert through desired slots at the same height level. Use either shoulder harness anchor in the slots that are closest to child’s shoulder height. Use slide adjuster for further adjustment.
  • Page 26 To Recline WARNING When making adjustments to the stroller seat, make sure child’s head, arms, and legs are clear of moving seat parts and stroller frame. 1. To recline push button down and pull seat towards the rear. 2. To raise, pull both straps up.
  • Page 27 Brakes WARNING Always apply both brakes. CHECK that brakes are on by trying to push stroller. 1. Push down on brake to lock brakes. SNAP! 2. Push up on brake to unlock brakes. SNAP!
  • Page 28 Swivel Wheels Front swivel wheels lock for use on uneven surfaces such as grass, stones or gravel. 1. To lock, press down. SNAP! 2. To unlock, press up. SNAP!
  • Page 29 Use only a Graco® SnugRide® Click Connect™ carseat with this stroller. This stroller is only compatible with Graco® SnugRide® infant car seats with Click Connect™. Only use with Graco® infant car seats that have the Click Connect™ logo. Improper use of this product with a car seat may result in serious injury or death.
  • Page 30 3. Find mounts in toddler seat. 4. Insert carseat into stroller and push down on car seat until the latches snap into the Click Connect™ mounts. SNAP!
  • Page 31 5. Check that infant car seat is securely attached by pulling up on it. 6. To remove car seat: squeeze release handle at back of car seat, and lift car seat out of the stroller.
  • Page 32 To Attach Graco Infant Car Seat to Stroller ® Frame 1. Infant car seat can be inserted in stroller frame rear and forward facing. 2. Insert car seat into stroller and push down on car seat until the latches snap into the Click Connect™...
  • Page 33 3. Check that infant car seat is securely attached by pulling up on it. 4. To remove car seat: squeeze release handle at back of car seat, and lift car seat out of the stroller.
  • Page 34 To Fold Stroller Frame without Toddler seat 1. Before folding stroller: (a) remove infant carseat if in use (b) lock brakes SNAP! 2. Pull up on release strap.
  • Page 35 3. Rotate handle down. 4. CHECK that the storage latch is secure.
  • Page 36 To Fold Stroller with Toddler seat attached 1. Before folding stroller: (a) remove infant carseat if in use (b) lock brakes SNAP! 2. Pull fold strap located under the pocket in the seat.
  • Page 37 3. Rotate handle down. 4. CHECK that the storage latch is secure.
  • Page 38 FROM TIME TO TIME CHECK YOUR STROLLER for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco replacement parts. EXCESSIVE EXPOSURE TO SUN OR HEAT could cause fading or warping of parts.
