154
Detailed Repair Procedures
9.
10. Back off half a turn.
11. With ball catch adjusted and rod
12. Remove the rod and check that

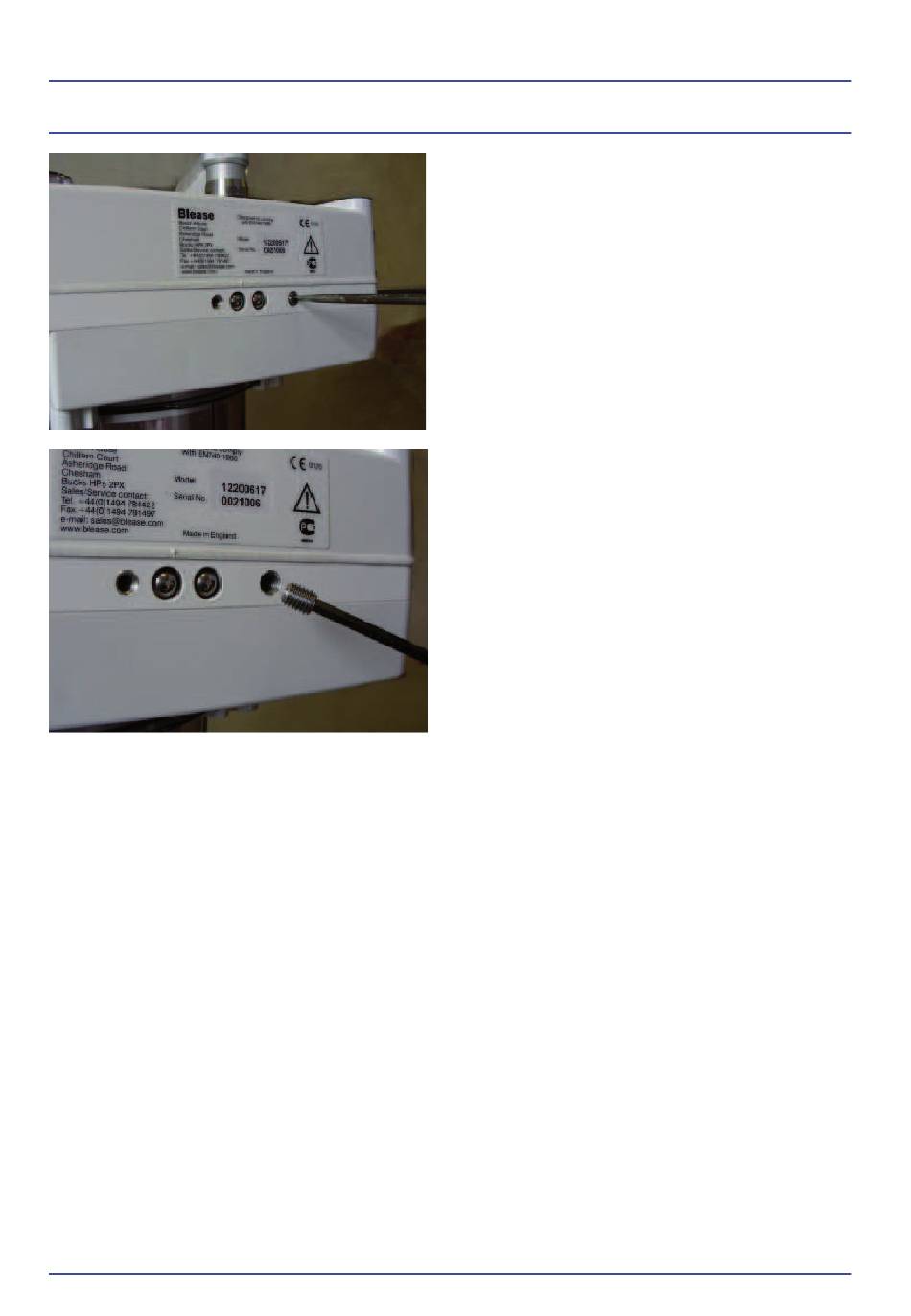

Figure 113 - Lock Screw Insertion

Screw in the ball catch until it stops
against the rod.
inserted, screw in the lock screw
until tight.
when the rod is inserted (pointed
end fi rst) that positive lock is
achieved on machine groove.
