Detailed Repair Procedures

5.12.2 Absorber Interface Manifold Assembly

Spacer
PN 13600248
Casting
PN 13600036
Gasket
PN 13600069

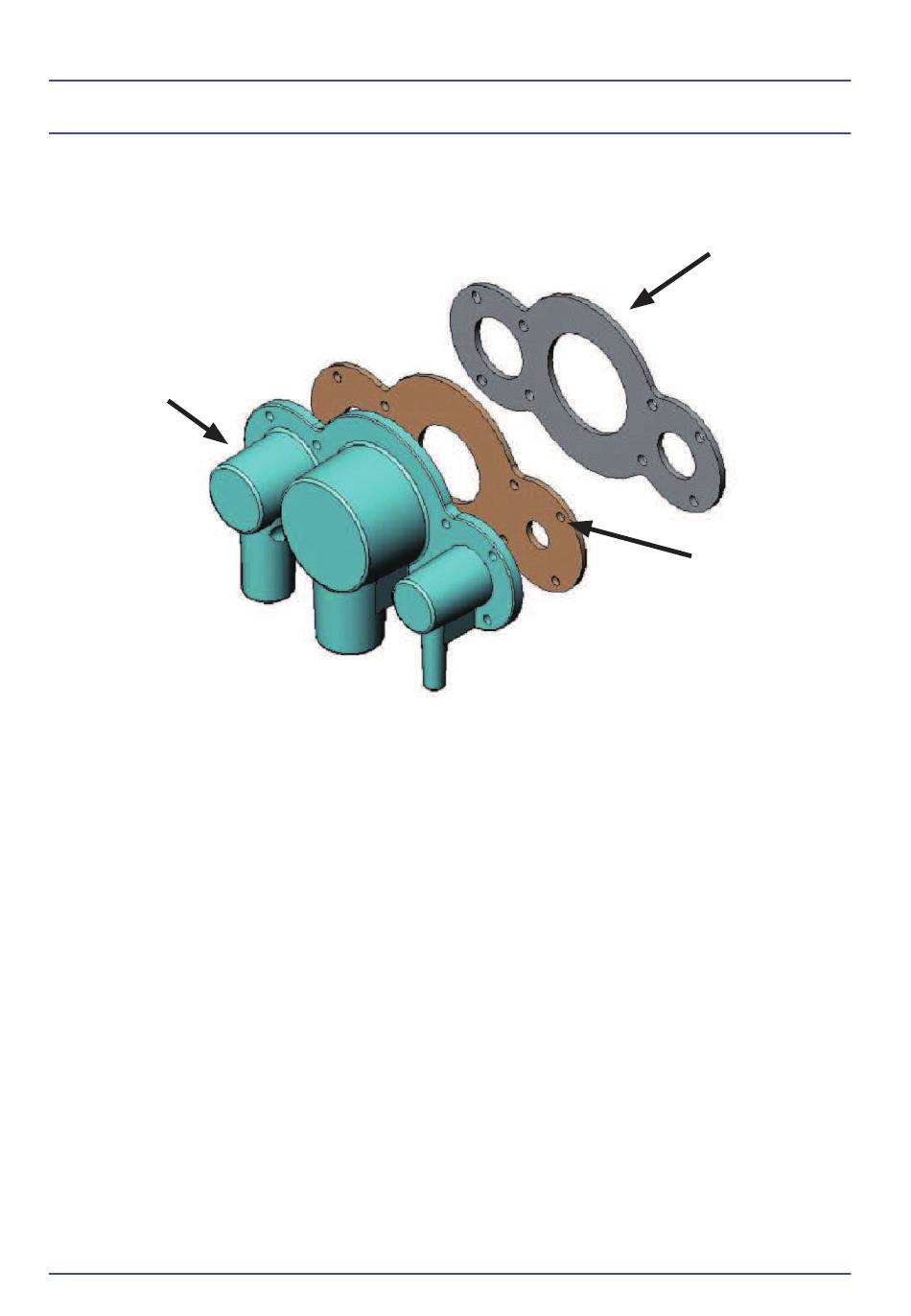

Figure 108 - Absorber Interface Manifold Assembly

The three components are held in place in the main molding with 8 M3 screws.
Do not over-tighten these screws or the threaded inserts in the molding may be
damaged.
If the pipes are removed from the casting (they are different diameters so they
cannot be interchanged before refi tting), the mating surface of the casting
should be lightly smeared with a silicone sealant to ensure a gas-tight seal to
the casting.
150
