H o t F o o d D r o p - I n W e l l s
®
E l e c t r i c
Models:
100-HW
200-HW
300-HW
400-HW
500-HW

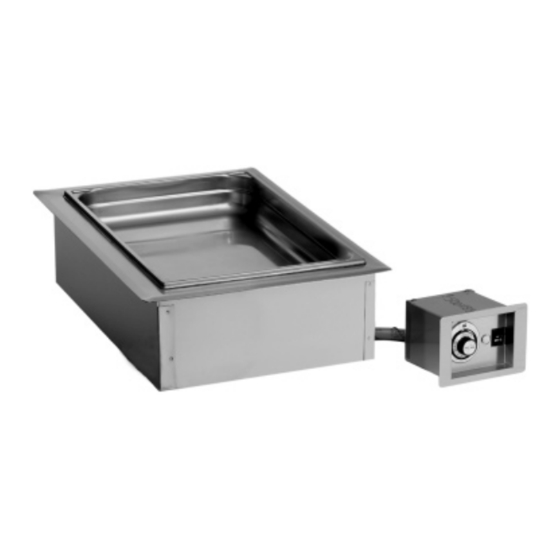

100-HW
pans not included
300-HW
• I N STALLATION
• OPERATION
• MAI NTENANCE
W 1 6 4 N 9 2 2 1 Wa t e r St r e e t • P. O. Box 450 • Menomonee F alls, Wisconsin 53052-0450 U SA
PHONE:
262.251.3800 • 800.558.8744
/
FAX:
262.251.7067 • 800.329.8744
.
.
.
USA
CANADA
U
S
A
ONLY
WEBSITE: www.alto-shaam.com
#808 - 2/07
.
.
.
P R I N T E D I N U
S
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100-HW and is the answer not in the manual?

Questions and answers

Related Manuals for Alto-Shaam 100-HW

Summary of Contents for Alto-Shaam 100-HW

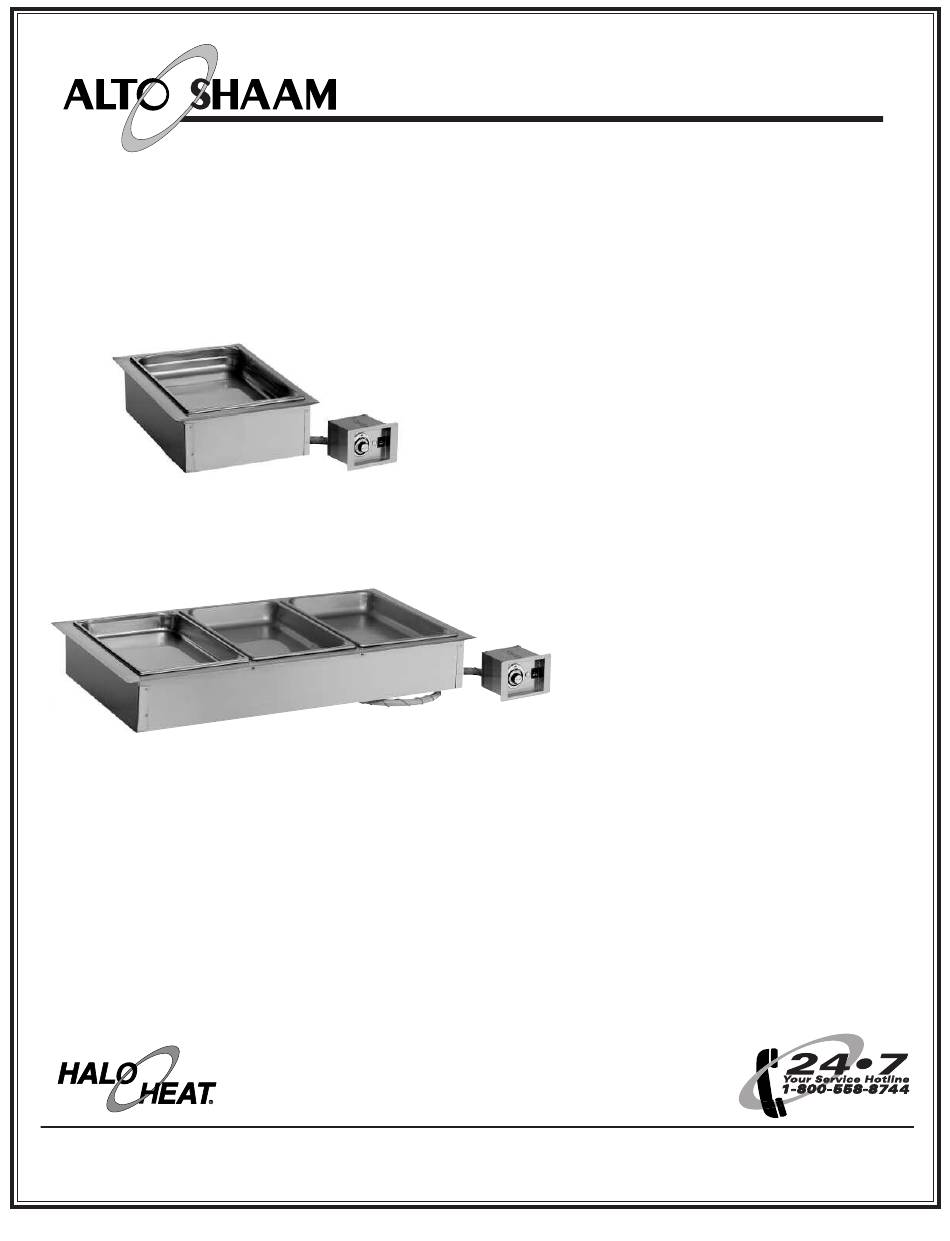

  • Page 1 H o t F o o d D r o p - I n W e l l s ® E l e c t r i c Models: 100-HW 200-HW 300-HW 400-HW 500-HW 100-HW pans not included 300-HW • I N STALLATION •...
