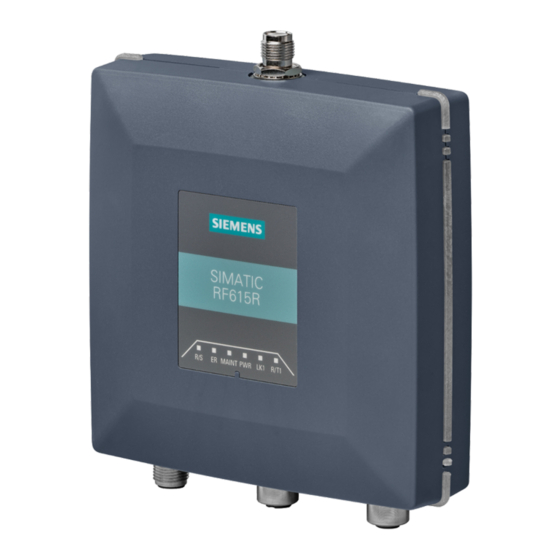

Siemens SIMATIC RF600 System Manual
  1. Manuals
  2. Brands
  3. Siemens Manuals
  4. Other
  5. Simatic RF600
  6. System manual
Siemens SIMATIC RF600 System Manual

Siemens SIMATIC RF600 System Manual

Rfid system in the uhf frequency range
Hide thumbs Also See for SIMATIC RF600:
Table of Contents

Advertisement

Quick Links

Download this manual See also: System Manual
RFID SYSTEMS
SIMATIC RF600
System Manual · 05/2012
SIMATIC Ident
Answers for industry.

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC RF600

Summary of Contents for Siemens SIMATIC RF600

  • Page 1 RFID SYSTEMS SIMATIC RF600 System Manual · 05/2012 SIMATIC Ident Answers for industry.
  • Page 3 ___________________ SIMATIC RF600 Introduction ___________________ Safety Information ___________________ System overview SIMATIC Ident ___________________ RF600 system planning RFID systems ___________________ SIMATIC RF600 Readers ___________________ Antennas System Manual ___________________ Transponder/tags ___________________ Integration into networks ___________________ System diagnostics ___________________ Accessories ___________________ Appendix 05/2012...
  • Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 5: Table Of Contents

    Safety distance between transmitter antenna and personnel............19 2.3.2 Minimum distance to antenna in accordance with ETSI..............20 2.3.3 Minimum distance to antenna in accordance with FCC (USA)............21 System overview............................23 RF System SIMATIC RF600......................23 3.1.1 Application areas of RF600......................25 3.1.2 System components (hardware/software) ...................26 3.1.3 Features ............................29...
  • Page 6 Minimum mounting clearances of two readers ................99 5.1.2.2 Antenna diagram for RF620R (ETSI)..................100 5.1.2.3 Antenna diagram for RF620R (FCC) ..................103 5.1.2.4 Interpretation of directional radiation patterns................106 5.1.2.5 Antenna/read point configurations .................... 106 5.1.3 Installing/Mounting ........................107 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 7 Pin assignment for Industrial Ethernet interface ................144 5.3.1.8 Grounding connection........................144 5.3.2 Planning the use ........................145 5.3.2.1 Selecting the antenna ........................145 5.3.2.2 Internal antenna .........................145 5.3.2.3 External antenna........................153 5.3.3 Installing / mounting ........................153 5.3.4 Configuration/integration......................154 5.3.5 Technical data..........................155 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 8 Alignment of transponders to the antenna ................194 6.2.8 Antenna patterns........................197 6.2.8.1 Antenna pattern ETSI........................ 197 6.2.8.2 Antenna pattern FCC ........................ 200 6.2.8.3 Interpretation of directional radiation patterns................203 6.2.9 Read/write ranges ........................203 6.2.10 Technical data........................... 207 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 9 Parameter settings of RF660A for RF640R/RF670R ..............252 6.5.6 Antenna patterns........................253 6.5.6.1 Antenna pattern .........................253 6.5.7 Interpretation of directional radiation patterns ................256 6.5.8 Technical data..........................257 6.5.9 Dimension drawing ........................258 6.5.10 Approvals & certificates ......................259 6.5.10.1 CE mark .............................259 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 10 7.4.6.2 Electrical data..........................293 7.4.6.3 Memory specifications....................... 294 7.4.6.4 Environmental conditions ......................294 7.4.7 Certificates and approvals......................295 7.4.8 Dimension drawing........................295 SIMATIC RF620T........................296 7.5.1 Characteristics .......................... 296 7.5.2 Ordering data ..........................297 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 11 Optimum antenna/transponder positioning with plane mounting of the transponder on metal ............................329 7.7.3.2 Reading range when mounted on flat metallic carrier plates.............332 7.7.3.3 Influence of conducting walls on the reading range..............332 7.7.3.4 Directional radiation pattern of the transponder.................334 7.7.4 Mounting instructions .........................335 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 12 7.9.3.6 Directional radiation pattern of the transponder on metallic surfaces........370 7.9.4 Mounting instructions ........................ 371 7.9.5 Memory configuration of the transponder ................. 371 7.9.6 Technical specifications ......................372 7.9.6.1 Mechanical data ........................372 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 13 Technical specifications ......................397 10.1.7 Pin assignment of DC outputs and mains connection ...............399 10.1.8 Dimension drawing ........................400 10.1.9 Certificates and approvals ......................401 Appendix..............................403 Certificates and approvals ......................403 Service & support........................405 Glossary ..............................407 Index..............................421 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 14 Table of contents SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 15: Introduction

    Scope of this documentation This documentation is valid for all supplied variants of the SIMATIC RF600 system and describes the products supplied as of May 2012. If you are using older firmware versions, please refer to the 08/2011 edition of the documentation.

  • Page 16: Abbreviations And Naming Conventions

    Abbreviations and naming conventions The following terms/abbreviations are used synonymously in this document: Read/write device (SLG) Reader Mobile data memory, MDS, data carrier, Transponder, tag smart label Interface module, ASM Communications module, CM SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 17: Navigating In The System Manual

    System overview Overview of all RF identification systems, system overview of SIMATIC RF600. RF600 system planning Information about possible applications of SIMATIC RF600, support for application planning, tools for finding suitable SIMATIC RF600 components.
  • Page 18 Introduction 1.3 Navigating in the system manual SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 19: Safety Information

    Contact your technical support team or where you purchased your device to find out which system expansion devices may safely be installed. CAUTION If you cause system defects by improperly installing or exchanging system expansion devices, the warranty becomes void. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 20: Safety Instructions For Third-Party Antennas As Well As For Modifications To The Rf600 System

    Contact your technical support team or where you purchased your device to find out which system extensions may safely be installed. CAUTION Loss of warranty If you cause defects on the SIMATIC RF600 system by improperly installing or exchanging system expansions, the warranty becomes void. NOTICE Loss of validity for type tests and certificates SIMATIC RFID products comply with the salient safety specifications to VDE/DIN, IEC, EN, UL and CSA.

  • Page 21: Safety Distance To Transmitter Antenna

    User responsibility for modified product As a user of the modified product, you accept responsibility for use of the complete RFID product comprising both SIMATIC RF600 components and third-party RFID components. This particularly applies to modification or replacement of: • Antennas •...

  • Page 22: Minimum Distance To Antenna In Accordance With Etsi

    If the transmitter power is set lower than the highest permissible value (2 watts ERP), the "safety distance" reduces correspondingly. The values for this are as follows: Radiated power ERP [W] Safety distance to transmitter antenna [m] 0.24 0.17 0.12 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 23: Minimum Distance To Antenna In Accordance With Fcc (Usa)

    Feld strength [V/m] % of limit value 10.9 If the transmit power is set lower than the highest permissible value (4 watts EIRP), the "safety distance" reduces correspondingly. The values for this are as follows: SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 24 The SIMATIC RF630R (FCC) reader has a maximum transmit power of 0.5 W. The radiated power therefore depends on the antenna cable and the type of antenna used, but must not exceed the 4 W EIRP. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 25: System Overview

    System overview RF System SIMATIC RF600 SIMATIC RF600 is an identification system that operates in the UHF range. UHF technology supports large write/read distances with passive tags. The SIMATIC RF670R readers (write/read devices), fitted for example on the gates of a warehouse, automatically record every movement of goods, and signal these to the higher- level systems.
  • Page 26 System overview 3.1 RF System SIMATIC RF600 Global Integration ONS oder EDI Business administration control Production control Control level RFID Data & Device Management Acquisition level Stationary Stationary read/write devices read/write devices mobile handheld terminals Stationary read/write devices Figure 3-1 System overview of SIMATIC RF600 ●...

  • Page 27: Application Areas Of Rf600

    System overview 3.1 RF System SIMATIC RF600 ● Production control The Manufacturing Execution System (MES) closes the gap between the data that arise in the automation environment (control level) and the logistical and commercial processes of the company (business administration control). MES solutions are used, for example, for defining and performing production processes.

  • Page 28: System Components (Hardware/Software)

    System overview 3.1 RF System SIMATIC RF600 3.1.2 System components (hardware/software) RF600 products Description Due to its compact format and high degree of protection, the RF670R reader is ideally suited to applications in production logistics and distribution. The integrated data processing makes it easier to use in complex scenarios and reduces the IT integration costs.
  • Page 29 System overview 3.1 RF System SIMATIC RF600 RF600 products Description The RF630R reader creates with its connection to a SIMATIC controller optimum preconditions for production-related application scenarios and/or production-related logistics applications by RFID. It has 2 connections for external antennas.
  • Page 30 System overview 3.1 RF System SIMATIC RF600 RF600 products Description SIMATIC RF642A is a linear antenna of medium size for environments where a lot of metal occurs. Depending on the application, up to 4 antennas can be connected to the RF670R reader and up to two antennas can be connected to the RF630R reader.

  • Page 31: Features

    System overview 3.1 RF System SIMATIC RF600 3.1.3 Features The RF600 identification system has the following performance features: RFID system RF600 Type Contactless RFID (Radio Frequency IDentification) system in the UHF band RF620R reader Transmission frequency 865-868 MHz (EU, EFTA, Turkey) 902-928 MHz (USA) 920.125 - 924.875 MHz (CHINA)
  • Page 32 System overview 3.1 RF System SIMATIC RF600 RF680M mobile handheld terminal Transmission frequency 865-868 MHz (EU, EFTA, Turkey) 902-928 MHz (USA) Writing/reading range Europe < 2 m USA < 1 m Standards EPCglobal Class 1, Gen 2 Transponder/tags Version Tags / Smart Labels...

  • Page 33: Rf600 System Planning

    ● EMC Directives Possible system configurations The SIMATIC RF600 system is characterized by a high level of standardization of its components. This means that the system follows the TIA principle throughout: Totally Integrated Automation. It provides maximum transparency at all levels with its reduced interface overhead.

  • Page 34: Scenario For Material Handling Control

    The SIMATIC°RF630R reader reads the information from the tags on the transport containers and transfers it via a communication module to the SIMATIC S7 controller which controls the process in accordance with the tag information. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 35 Feature Single-tag Multi-tag Read velocity Max. 2 m/s Orientation of the RFID tag Not defined Carrier material of the tag Metal or non-metal Reading range Approx. 1 m Reader density High Interference High SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 36: Scenario For Workpiece Identification

    SIMATIC S7 controller via a communication module. Depending on the stored tag information, the SIMATIC-S7 performs different control tasks, for example, automatically providing a suitable tool for an industrial robot at the correct time. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 37 Features Single-tag Multi-tag Reading velocity Not applicable Orientation of the RFID tag Same alignment for all the tags Carrier material of the tag Metal Reading distance Approx. 1 m Reader density High Interference High SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 38: Scenario For Intra Logistics

    In this example scenario. items must be distributed to the correct storage location in a transport container via a separating filter. The RFID tags of type SIMATIC RF630L are directly attached to the item. The maximum transport velocity of the conveyor is 2 m/s. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 39 Single-tag Multi-tag Reading velocity Max. 2 m/s Orientation of the RFID tag Same alignment for all the tags Carrier material of the tag Metal Reading range Approx. 1 m Reader density High Interference High SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 40: Scenario Incoming Goods, Distribution Of Goods And Outgoing Goods

    There is a separator at the end of the conveyor belt that determines the output gate to which the goods should be directed. The separator is set according to the results from the reader and the goods are distributed. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 41: Antenna Configurations

    RF670R. The antennas are positioned at the height at which the tags are expected which are to be identified. The maximum width of the portal that is recommended for reliable operation is 4 m. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 42 RF600 system planning 4.3 Antenna configurations The diagram shows a configuration with three antennas. Up to four antennas can be used depending on the local conditions. Figure 4-1 Example of an antenna configuration with three antennas SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 43: Possibilities And Application Areas For Antenna Configurations

    This antenna configuration is possible with the following readers: RF670R with one antenna • RF640R with integrated or with • external antenna RF630R with one antenna • RF620R with integrated or with • external antenna SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 44 ① This antenna configuration is possible with the following readers: RF670R with two antennas • RF630R with two antennas • SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 45 2 for reliable tag identification. ① This antenna configuration is possible with the following readers: RF670R with four antennas • SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 46 A relatively high reading reliability is achieved due to the use of four antennas. ① This antenna configuration is possible with the following readers: RF670R with four antennas • SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 47: Tag Orientation In Space

    The following diagram shows the specified minimum and maximum spacings for mounting antennas: A minimum spacing of 50 cm is necessary between the antenna and liquids or metals. The distance between the antenna and the floor should also be at least 50 cm. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 48 The distance between two antennas mounted alongside each other or one above the other that are operated be one reader should be at least 20 cm, but a distance of more than 50 cm is better. Figure 4-3 Antennas mounted adjacently horizontally or vertically SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 49 A portal spacing of up to 10 m is possible. The probability of a read must be checked. The specified distances are recommended minimum or maximum values for configuration. See also Mutual interference of readers (antennas) (Page 48) SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 50: Mutual Interference Of Readers (Antennas)

    (RF670R with RF660A = 2000 mW ERP; RF640R with RF660A = 2000 W ERP; RF620R/RF630R = 500 mW ERP) and the antenna alignment. Figure 4-5 Antenna distances for different readers and identical frequencies SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 51 Minimum spacing required = D RF620R with internal antenna Back to back 0.4 m Pointing at each other 5.8 m Side by side (long side) 1.4 m Side by side (short side) 1.8 m SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 52 ● The readers have been rotated through 90° around the z axis. The table below provides you with an overview of the minimum spacing to be maintained at a radiated power of 27 dBm with a maximum number of reachable transponders: SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 53: Read And Write Range

    The aperture angle (horizontal) • The aperture angle (vertical) • You will find detailed information about the reading range of the individual readers in the "Technical specifications" in the sections for the various readers. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 54: Static/Dynamic Mode

    In addition, the transmitter power of the readers can be reduced down to the minimum at which the tags are still just detected accurately. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 55: Optimization Of Robustness Of Tag Data Accesses For Readers That Are Operated Simultaneously

    Regulations for UHF frequency bands in the USA (Page 81)). In China, one reader operates on at least 2 channels, e.g. 16 channels of 2 W (see Section Regulations for UHF frequency bands in China (Page 76)). SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 56: Guidelines For Selecting Rfid Uhf Antennas

    4.3.9.3 General application planning Overview of the total SIMATIC RF600 system and its influencing factors The following graphic shows the design of the total SIMATIC RF600 system and the factors which have an influence on the total system. SIMATIC RF600...
  • Page 57 In line with the application, you must take into consideration the mechanical loads (shock and vibration) as well as environmental demands such as temperature, moisture, UV radiation. The device could be damaged if these factors are not considered. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 58 Always proceed in the following order during your considerations and the practical implementation: 1. Consider which third-party components you wish to use in the SIMATIC RF600 system. 2. Depending on the third-party component required, refer either to Section Auto-Hotspot or Section Auto-Hotspot for the important criteria for selection of your components.

  • Page 59: Antennas

    Types of antenna and properties Basically all types of directional antennas can be considered as third-party antennas for integration into the SIMATIC RF600 system. Directional antennas have a preferred direction in which more energy is radiated than in other directions.
  • Page 60 If the transmitted power is not applied directly but via a cable with loss a , this loss should be compensated such that the same radiated power is obtained. If the loss is not appropriately compensated, the radiated power is too small. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 61 P1 and P2 of the same type. This ratio is defined by the following equation: Example If P1 = 200 W and P2 = 100 mW, how large is the ratio a in dB? SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 62 4 W EIRP will not be reached. ● If the gain is > 6 dBi(L)*, the difference is compensated in accordance with the directives by reducing the transmitted power. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 63 Since the impedance at the antenna connection is frequency-dependent, mismatching automatically occurs with broadband use. This mismatching can be reflected by two parameters: ● The voltage standing wave ratio VSWR ● The return loss SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 64 Specifications UHF transponders usually have a receive characteristic similar to that of a dipole antenna which is linearly polarized. Horizontal or vertical polarization is then present depending on the transponder mounting. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 65 (AR), which is frequently specified as a logarithm. Axial ratio Ideal 0 dB Real 2-3 dB Figure 4-7 Circular polarization of antenna system and transponder SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 66 Specifications Requirement: The front-to-back ratio must be ≥ 10 dB. This requirement also applies to spurious lobes illustrated by the following graphics in Section Half-value width (Page 65). SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 67 The following graphics show examples of the directional radiation pattern of an antenna in polar and linear representations for which both the horizontal and vertical planes must be considered. Directional radiation pattern in polar representation ① Beam width ② Spurious lobe SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 68 The dBr values correspond to the difference between the maximum dBi value and a second dBi value. Deviation from maximum antenna gain [dBr] Read/write range [%] SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 69 Depending on the mechanical mounting and the ratio ① ② between the vertical beam width and the horizontal beam width , read areas result as shown in the following graphic: SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 70: Antenna Cables

    Antenna cable loss In order to be able to transmit the available UHF power from the RF600 reader to the antenna(s), the antenna cable loss must not exceed a value of approx. 4 dB. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 71 RF600 reader interface. The figure below shows the standard for a suitable thread: You can find more information in the catalog data of your cable vendor. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 72: Application Example

    RF600 system reader. In the example, it is assumed that you want to use your SIMATIC RF600 system with your third-party components in Germany (ETSI EN 302 208 V1.3.1).

  • Page 73: Environmental Conditions For Transponders/Tags

    4. You must subsequently have your desired system requirements measured and verified according to EN 302 308 in an absorber chamber. You may only use your SIMATIC RF600 system with the new third-party components when this has been carried out.

  • Page 74: The Response Of Electromagnetic Waves In The Uhf Band

    The effect of metal on the electromagnetic field can be prevented as follows: ● Do not mount tags on metal. ● Do not place metallic or conducting objects in the propagation field of the antenna and transponder. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 75: Influence Of Liquids And Non-Metallic Substances

    If a DECT station that is transmitting in the 2 GHz band, for example, is located in the receiving range of an antenna of the RF600 system, the performance of the write and read accesses to the transponder will be affected. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 76: Regulations Applicable To Frequency Bands

    ● The UHF band from 865 to 868 MHz with 4 RFID channels occupies: Validity Note that readers are operated with this setting since November 4, 2008 (publication of the standard in the Official Journal of the European Union). SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 77: Regulations For Uhf Frequency Ranges In Argentina

    4.6.5 Regulations for UHF frequency ranges in Canada Regulations for UHF frequency ranges in Canada are identical to the Regulations for UHF frequency bands in the USA (Page 81). SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 78: Regulations For Uhf Frequency Bands In China

    2000 mW (ERP) and with 20 channels that can be used simultaneously at up to 100 mW, the probability of two readers operating on the same frequency is reduced. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 79: Regulations For Uhf Frequency Ranges In India

    ● The UHF band from 865 to 866 MHz is occupied with 10 RFID channels: 4.6.8 Regulations for UHF frequency ranges in Mexico Regulations for UHF frequency ranges in Mexico are identical to the Regulations for UHF frequency bands in the USA (Page 81). SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 80: Regulations For Uhf Frequency Ranges In Russia

    ● Number of channels: 8 – 866,1 – 866,3 – 866,5 – 866,7 – 866,9 – 867,1 – 867,3 – 867,5 Channel assignment ● The UHF band from 866 to 867 MHz is occupied with 8 RFID channels: SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 81: Regulations For Uhf Frequency Bands In Singapore (866-869 Mhz Band)

    866.1 to 867.9 MHz 0.5 W ERP 4.6.11 Regulations for UHF frequency ranges in South Africa Regulations for UHF frequency ranges in South Africa are identical to the Regulations for UHF frequency bands in Europe (Page 74). SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 82: Regulations For Uhf Frequency Ranges In South Korea

    ● Number of channels: > 6 (max. 16) Channel assignment ● The UHF band of 917.3 to 920.3 MHz is occupied with up to 16 RFID channels of which at least 7 channels must be used: SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 83: Regulations For Uhf Frequency Bands In Thailand

    This technique is intended to prevent mutual interference between readers. The reader changes its transmission channel in a random or programmed sequence (FHSS). 50 available channels mean that the probability is low that two readers will be operating on the same frequency. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 84: Guidelines For Electromagnetic Compatibility (Emc)

    The higher the degree of automation, the greater the risk of interaction between devices. Electromagnetic compatibility (EMC) is the ability of an electrical or electronic device to operate satisfactorily in an electromagnetic environment without affecting or interfering with the environment over and above certain limits. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 85: Basic Rules

    ● Protect the device against external interference by installing it in a cabinet or housing. The housing or enclosure must be connected to the chassis ground. ● Use metal plates to shield against electromagnetic fields generated by inductances. ● Use metal connector housings to shield data conductors. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 86 ● Connect the filter housing to the cabinet chassis using a large-area low-HF-impedance connection. ● Never fix the filter housing to a painted surface. ● Fix the filter at the control cabinet inlet or in the direction of the source. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 87: Propagation Of Electromagnetic Interference

    Magnetic field Electrical motor Collector Electrical field Winding Magnetic field Electric welding device Contacts Electrical field Transformer Magnetic field, system disturbance, transient currents Power supply unit, switched- Circuit Electrical and magnetic field, system mode disturbance SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 88 Coupling paths A coupling path has to be present before the disturbance emitted by the interference source can affect the system. There are four ways in which interference can be coupled in: SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 89: Prevention Of Interference Sources

    • Unfavorable cabinet configuration • 4.7.5 Prevention of interference sources A high level of immunity to interference can be achieved by avoiding interference sources. All switched inductances are frequent sources of interference in plants. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 90: Equipotential Bonding

    ● The equipotential bonding conductor must have a sufficiently large cross section (at least 10 mm ● The distance between the signal cable and the associated equipotential bonding conductor must be as small as possible (antenna effect). ● A fine-strand conductor must be used (better high-frequency conductivity). SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 91: Cable Shielding

    It is usually adequate to use cables with braided shields. In either case, however, correct connection is vital for effective shielding. Note An unconnected or incorrectly connected shield has no shielding effect. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 92 (high-frequency clamp) or secured using cable ties. Care should be taken to ensure that the connection allows good conductance. Figure 4-14 Connection of shielding bus The shielding bus must be connected to the PE busbar. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 93 Interruption of shielded cables If intermediate connectors, which do not have a suitable shield connection, are used, the shield must be continued by fixing cable clamps at the point of interruption. This ensures a large-area, HF-conducting contact. SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 94 RF600 system planning 4.7 Guidelines for electromagnetic compatibility (EMC) SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 95: Readers

    30 dBm 30 dBm 27 dBm 27 dBm ETSI and CMIIT 0.5 W 0.5 W max. transmit power 31 dBm 31 dBm 29 dBm 29 dBm 1.25 W 1.25 W 0.5 W 0.5 W SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 96: Rf620R Reader

    SIMATIC S7 controller via an ASM interface module. The degree of protection is IP65. Pos. Description TNC-reverse interface for connection of ANT LED status indicator RS 422 interface (8-pin M12 connector) SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 97: Ordering Data

    – RS 422 5.1.1.1 Ordering data Ordering data RF620R Product Order number RF620R (ETSI) reader for EU, EFTA, Turkey 6GT2811-5BA00-0AA0 6GT2811-5BA00-0AA1 RF620R (FCC) reader for North America 6GT2811-5BA00-1AA0 6GT2811-5BA00-1AA1 RF620R (CMIIT) reader for China 6GT2811-5BA00-2AA1 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
  • Page 98 Set of protective caps 6GT2898-4AA00 Contains 3 protective caps for antenna output and one protective cap for digital I/O interface (required for IP65 degree of protection when some connectors are unused) RFID DVD "Software & Documentation" 6GT2080-2AA20 SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 99: Status Display

    • A tag is used, that is not compatible with the reader protocol (EPC Global Class 1 Gen 2). • Tag is defective • Reader or antenna has a defect • Tag is not in the field of radiation of the transmit antenna SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...

  • Page 100: Pin Assignment Of The Rs422 Interface

    RS 422 - on reader side M12 pin Core color Pin assignment View of M12 socket white 24 VDC brown TX neg green yellow TX pos Gray RX pos pink RX neg blue Not assigned Earth (shield) SIMATIC RF600 System Manual, 05/2012, J31069-D0171-U001-A13-7618...
