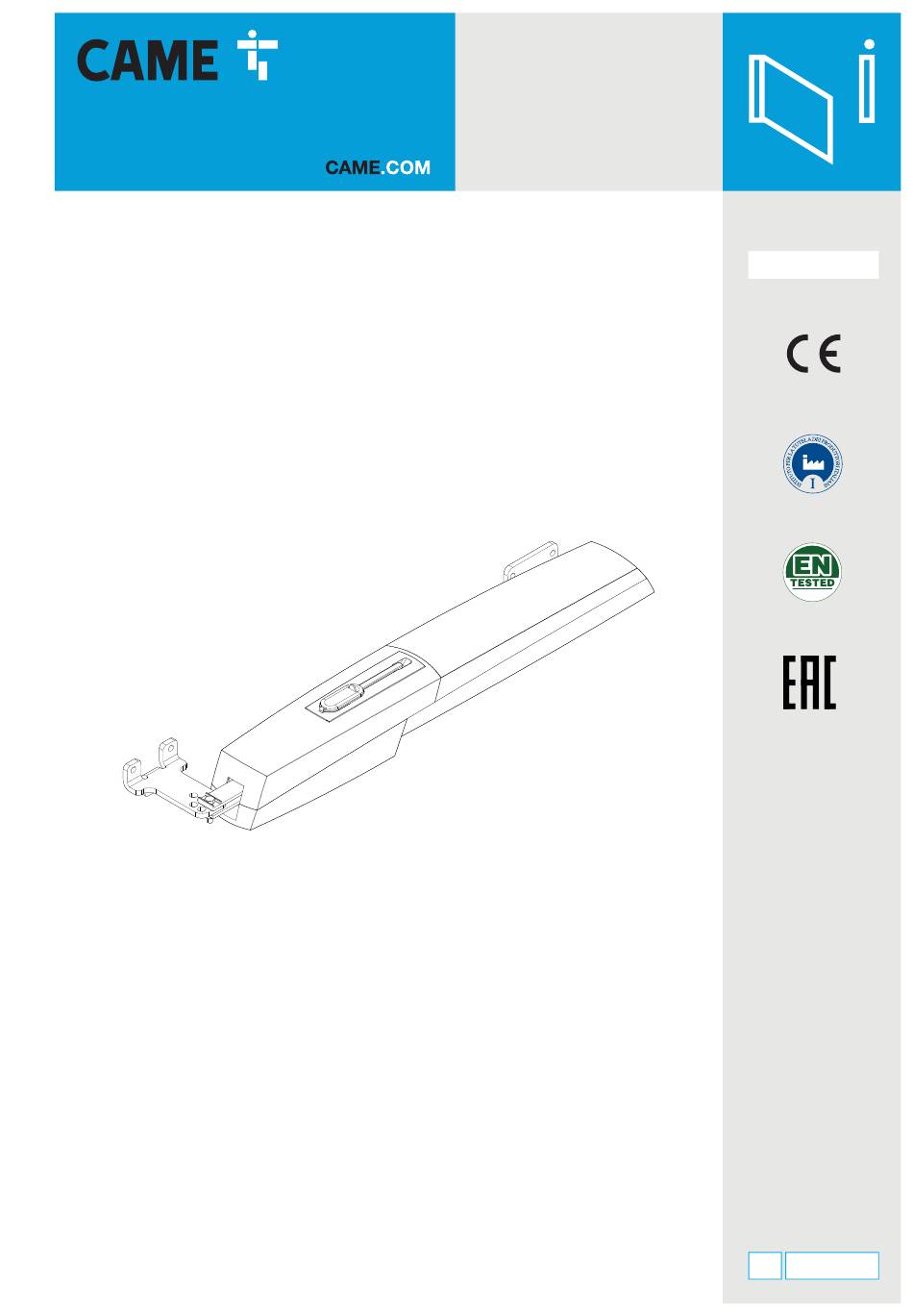

- Page 1 Gear motor for swing gates FA01086-EN OPP series OPP001 EN English INSTALLATION OPERATION AND MAINTENANCE MANUAL...
- Page 2 =============== Hand these instructions to the end user =============== MANUALLY RELEASING THE GEAR MOTOR ⚠ Manually releasing the gate may cause an uncontrolled movement of the gate due to possible mechanical anomalies or unbalancing. RELEASE (fi gure - Open the hatch, fi t the trilobe key and turn it - Take out the release tab.
- Page 4 GENERAL PRECAUTIONS FOR INSTALLERS ⚠ WARNING! Important safety instructions. Follow all of these instructions. Improper installation can cause serious bodily harm. Before continuing, also read the general precautions for users. HIS PRODUCT MUST ONLY BE USED FOR ITS SPECIFICALLY INTENDED PURPOSE NY OTHER USE IS DANGEROUS S.P.A.
- Page 5 THE NEXT FIGURE SHOWS THE MAIN HAZARD POINTS FOR PEOPLE Danger of high voltage Danger of foot crushing Danger of hand entrapment...
-
Page 6: Intended Use
This gearmotor is designed to power and operate swing gates in private homes and apartment blocks. Any installation other than what is detailed in this manual is prohibited. LIMITS TO USE Type OPP001 Maximum gate-leaf length (m) Maximum gate-leaf weight (kg) TECHNICAL DATA... -
Page 7: Dimensions (Mm)
DIMENSIONS (MM) DESCRIPTION OF PARTS 1. Gear motor 2. Gate bracket and fastening screw 3. Post bracket and fastening screw 4. Bushing for post bracket ⑦ 5. Locking key 6. Cover 1 ② 7. Cover 2 ④ ⑥ ① M8 x 35 ⑤... -
Page 8: Standard Installation
STANDARD INSTALLATION 1. Gear motor 2. Control panel 3. Transmitter 4. Key-switch selector 5. Flashing light ⑥ 6. Photocells 7. Junction pit 8. Mechanical gate stops ⑥ ⑤ ① ⑧ ⑥ ④ ① ② ③ ⑧ ⑥ ⑦ GENERAL INSTALLATION INDICATIONS ⚠... - Page 9 CABLE TYPES AND MINIMUM SECTIONS cable length Connection < 20 m 20 < 30 m Input voltage for 230 V AC control board 3G x 1.5 mm 2 3G x 2.5 mm 2 (1P+N+PE) 2 x 0.5 mm 2 Signaling devices 2 x 0.5 mm 2 Command and control devices (TX = 2 x 0.5 mm 2 )
-
Page 10: Installation
INSTALLATION The following illustrations are mere examples in that the space for anchoring the operator and accessories varies depending on the installation area. It is up to the installer to find the most suitable solution. CORRUGATED TUBE LAYING Set up the junction boxes and corrugated tubes you will need to make connections coming from the junction pit. To connect the gearmotor we suggest a Ø... - Page 11 Fasten the bracket to the post ❶using suitable anchors and screws. If the post is made of metal, the bracket can be welded to it. Note: the holes on the bracket are for further opening angle variations of the gate leaf. Fasten or weld the bracket to the gate ❷...
- Page 12 Open the gate leaf (the grub screws on the mechanical stops are loose) and fi t the pin into the gate bracket. Fasten using the UNI6593 washer Ø 10 and the supplied UNI 5739 M10 X 10 bolt b ESTABLISHING THE LIMIT-SWITCH POINTS Before establishing the endstop points, you need to: release the gearmotor (see paragraph on manually releasing it) and remove covers 1 and 2 while carefully following the illustrations.
- Page 13 ⚠ DO NOT REMOVE cover 2 without fi rst sliding it. ❻ ❹ ⚠ ❺ For opening For closing Reach the gate leaf opening point you want and take Close the gate leaf completely and rest it against the the mechanical stop to rest using the slide guide. mechanical stop using the slide guide.
- Page 14 CONNECTING TWO GEARMOTORS M1 N1 ENC1 M2 N2 ENC2 Gearmotor with encoder (M2) 24 V DC, delayed when closing. Gearmotor with encoder (M1) 24 V DC, delayed when opening. CONNECTING ONE GEARMOTOR M2 N2 ENC2 Gearmotor with encoder (M2) 24 V DC CONNECTION FOR OPENING OUTWARDS ⚠ Establish the quotas A and B.
-
Page 15: Final Operations
Make the necessary electrical connections as shown in the figure. M1 N1 ENC1 M2 N2 ENC2 Gearmotor with encoder (M1) 24 V DC, delayed when closing. Gearmotor with encoder (M2) 24 V DC, delayed when opening. FINAL OPERATIONS FASTENING THE COVERS Once you have completed all electrical connections and commissioning, fit the covers as shown here ⚠... -
Page 16: Dismantling And Disposal
UNI EN ISO 14001 standard to ensure the environment is safeguarded. Please continue safeguarding the environment. At CAME we consider it one of the fundamentals of our operating and market strategies. Simply follow these brief disposal guidelines:...
