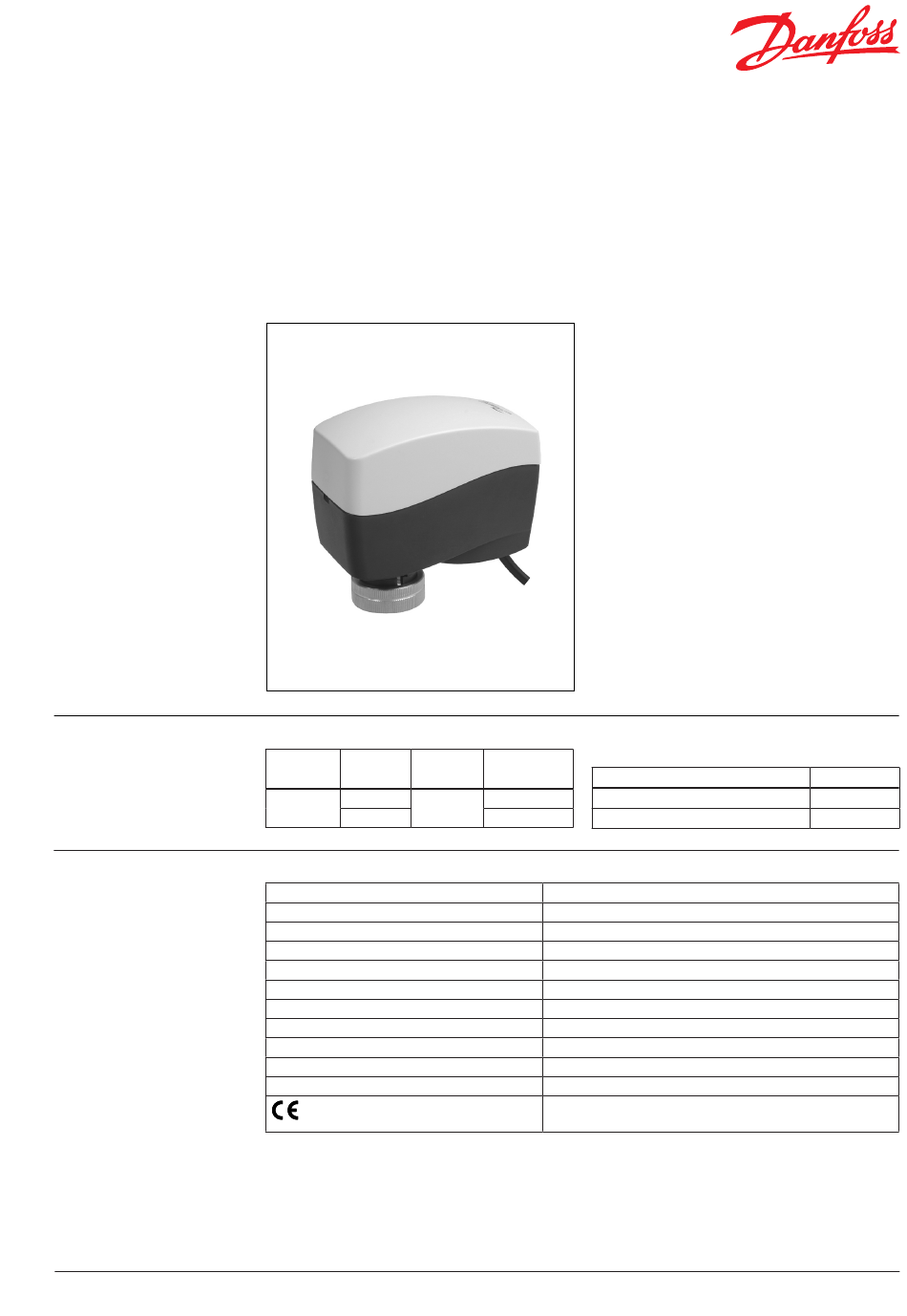

Danfoss AMI 140 Datasheet

Data sheet
Description
Ordering
Technical data
DH-SMT/SI
AMI 140
Actuator for two point control
Supply
Type Speed
voltage
24 V~
AMI 140 12 s/mm
230 V~
Power supply
Power consumption
Frequency
Close of force
Stroke
Speed
Max. medium temperature inside the pipe
Ambient temperature
Storage and transport temperature
Protection code
Weight
- marking in accordance with standards
VD.KH.B1.02
© Danfoss 03/2008
AMI 140 is 2 point 3 wires actuator used with
AB-QM (DN 10-32) and VZ, VZL, VRBZ valves.
The actuator can be used with fan coil units,
induction units, small re-heaters, re-coolers and
zone applications in which hot/cold water is the
controlled medium. The actuator provides with
factory default setting (actuators spindle fully
stem up):
- normally closed function for AB-QM and
- normally open function for VZ, VZL, and VRBZ
Note: it is possible to change setting from normally closed
to normally open function (see "Wiring" part jumper
setting, page 2.
Main data:
• 2-point 3 wires versions
• Force switch-off at stem down position
prevents overload of actuator and valve
• No tools required for mounting
• Maintenance free during lifetime
• Low noise operation
• Supplied with 1.5 m cable.
Spare parts
Code No.
Type
Cable (5m) - 24 V
082H8048
082H8049 Cable (5m) - 230 V
24 Vac, 230 Vac; +10 to –15%
1 VA - 24 Vac; 8 VA - 230 Vac
50 Hz / 60 Hz
200 N
5.5 mm
12 s/mm
130 °C
0 ... 55 °C
–40 ... +70 °C
IP 42
0.3 kg
Low Voltage Directive 73/23/EEC, EMC-Directive 2006/95/EEC:
- EN 60730-1, EN 60730-2-14
Code No.
082H8052
082H8053
1
