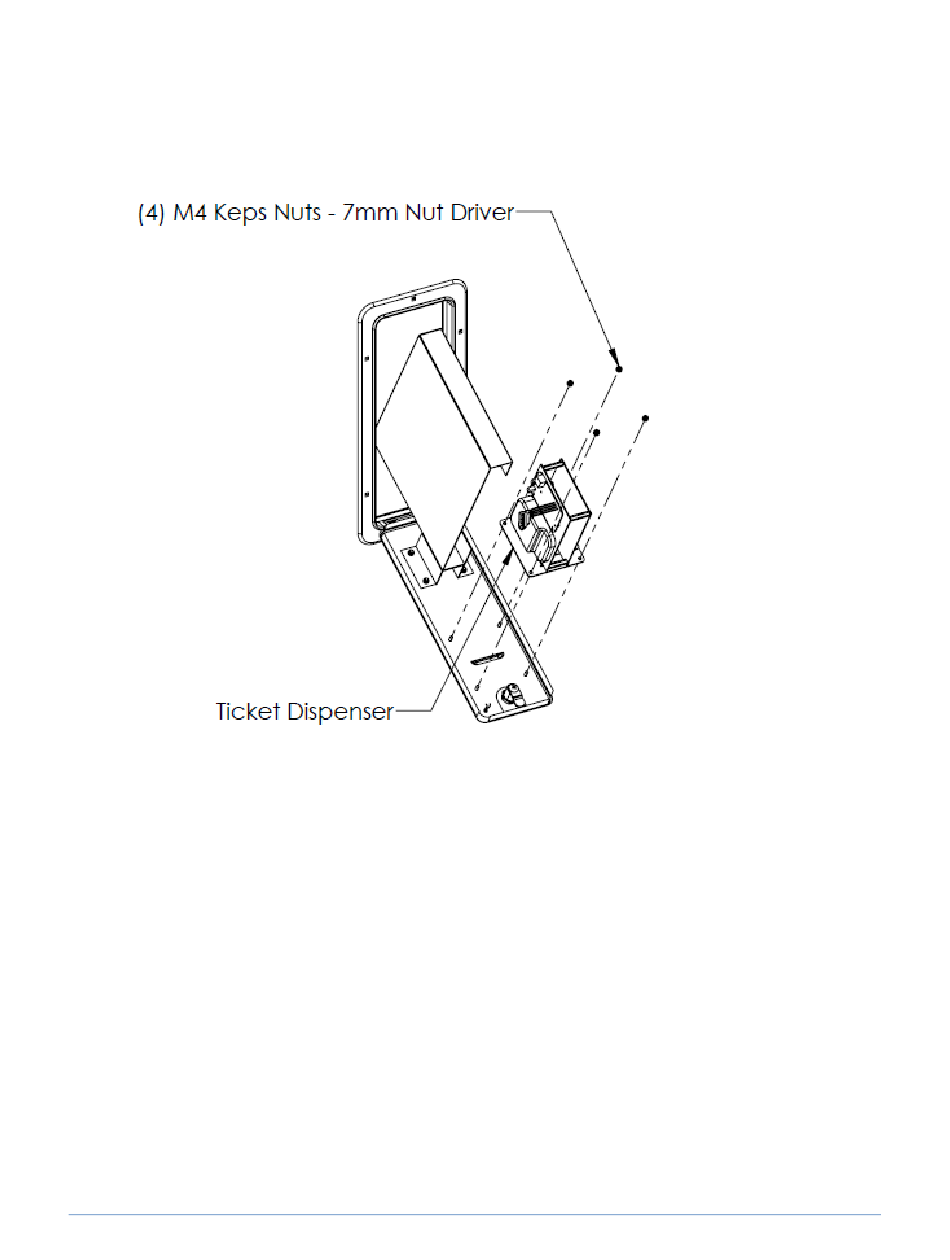

Locate ticket dispensers (boxed in kit) and attach to upper studs on inner surface of ticket doors with (4) M4
keps nuts using 7mm nut driver (or wrench), being sure to not crush dispenser wires or wires from bundles
attached to ticket door.
Route wire bundle attached to ticket door through the space between ticket bin mounts, as most of the wires
will be tucked into this wireway during operation. From this bundle, locate (2) FASTON terminals and (1) 2
position male connector in this bundle. Locate ticket door related cabinet harness (can be identified by
tracing previously mentioned ground wire ring terminals from mounting ticket bin). Locate the following
connectors on cabinet harness: (1) 2 position female connector and (1) 4 position female connector.
