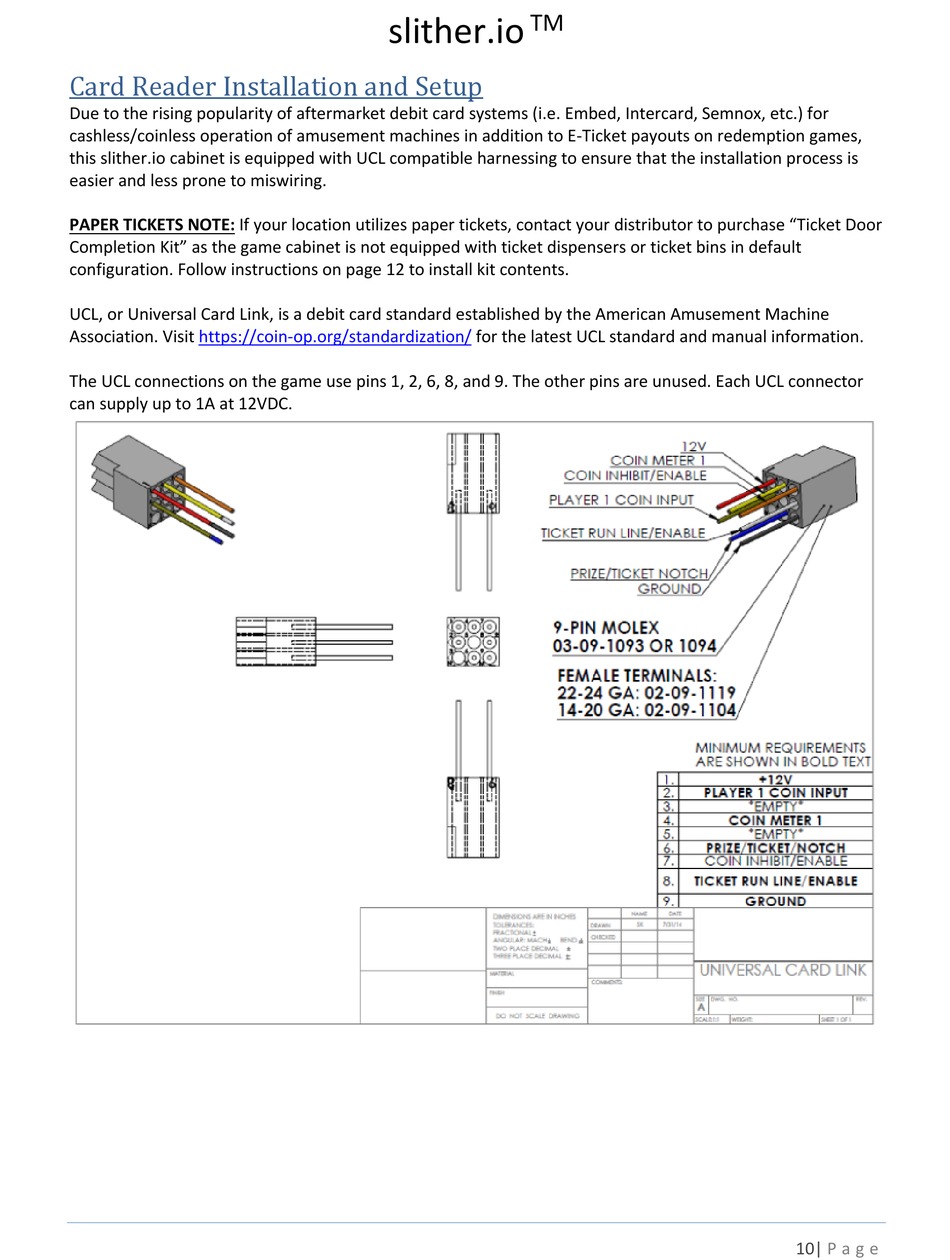

Card Reader Installation and Setup

Due to the rising popularity of aftermarket debit card systems (i.e. Embed, Intercard, Semnox, etc.) for
cashless/coinless operation of amusement machines in addition to E-Ticket payouts on redemption games,
this slither.io cabinet is equipped with UCL compatible harnessing to ensure that the installation process is
easier and less prone to miswiring.
PAPER TICKETS NOTE: If your location utilizes paper tickets, contact your distributor to purchase "Ticket Door
Completion Kit" as the game cabinet is not equipped with ticket dispensers or ticket bins in default
configuration. Follow instructions on page 12 to install kit contents.
UCL, or Universal Card Link, is a debit card standard established by the American Amusement Machine
Association. Visit https://coin-op.org/standardization/ for the latest UCL standard and manual information.
The UCL connections on the game use pins 1, 2, 6, 8, and 9. The other pins are unused. Each UCL connector
can supply up to 1A at 12VDC.
