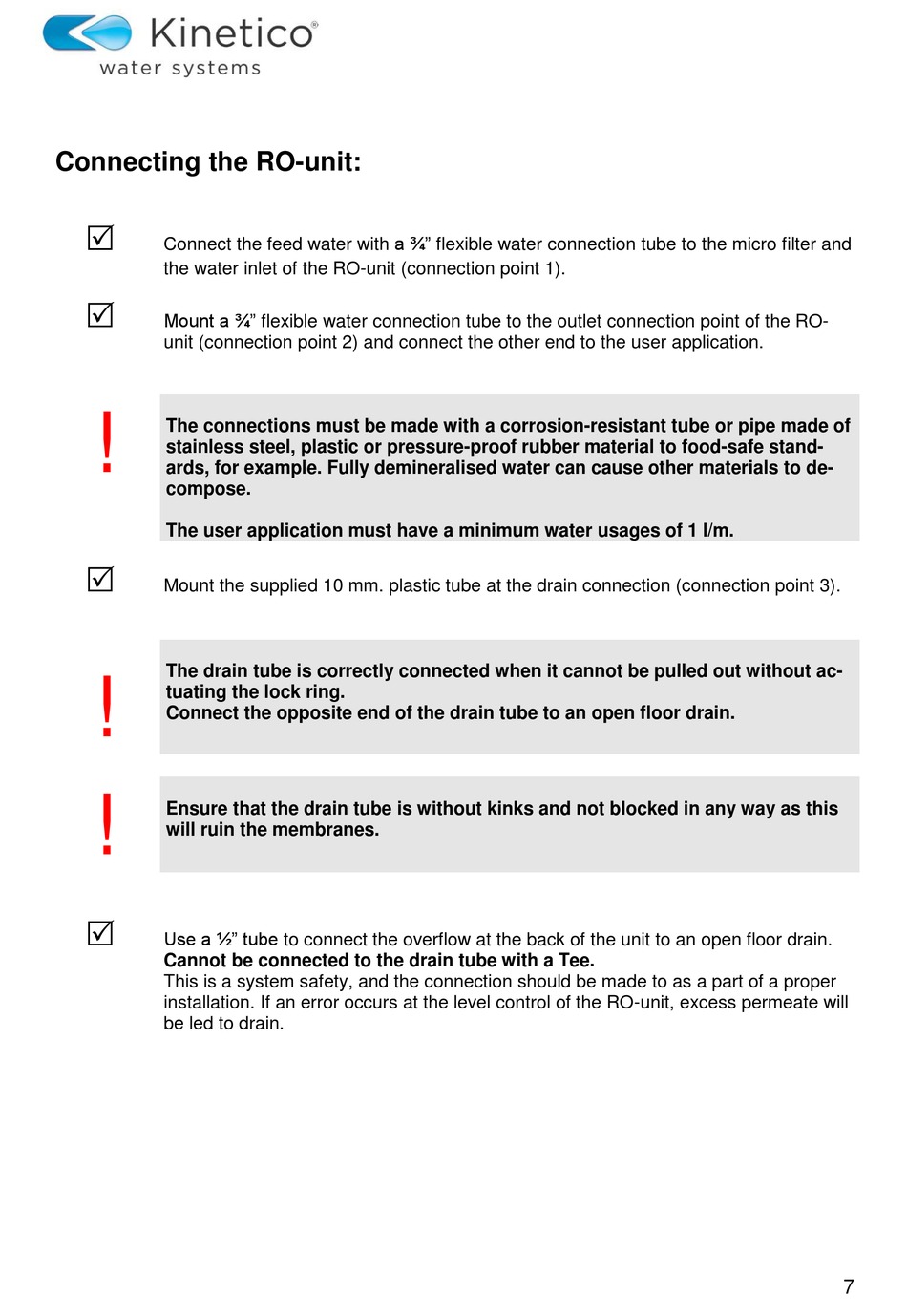

Connecting the RO-unit:

Connect the feed water with a ¾" flexible water connection tube to the micro filter and
the water inlet of the RO-unit (connection point 1).

Mount a ¾" flexible water connection tube to the outlet connection point of the RO-
unit (connection point 2) and connect the other end to the user application.
!
The connections must be made with a corrosion-resistant tube or pipe made of
stainless steel, plastic or pressure-proof rubber material to food-safe stand-
ards, for example. Fully demineralised water can cause other materials to de-
compose.
The user application must have a minimum water usages of 1 l/m.

Mount the supplied 10 mm. plastic tube at the drain connection (connection point 3).
The drain tube is correctly connected when it cannot be pulled out without ac-
!
tuating the lock ring.
Connect the opposite end of the drain tube to an open floor drain.
!
Ensure that the drain tube is without kinks and not blocked in any way as this
will ruin the membranes.

Use a ½" tube to connect the overflow at the back of the unit to an open floor drain.
Cannot be connected to the drain tube with a Tee.
This is a system safety, and the connection should be made to as a part of a proper
installation. If an error occurs at the level control of the RO-unit, excess permeate will
be led to drain.
