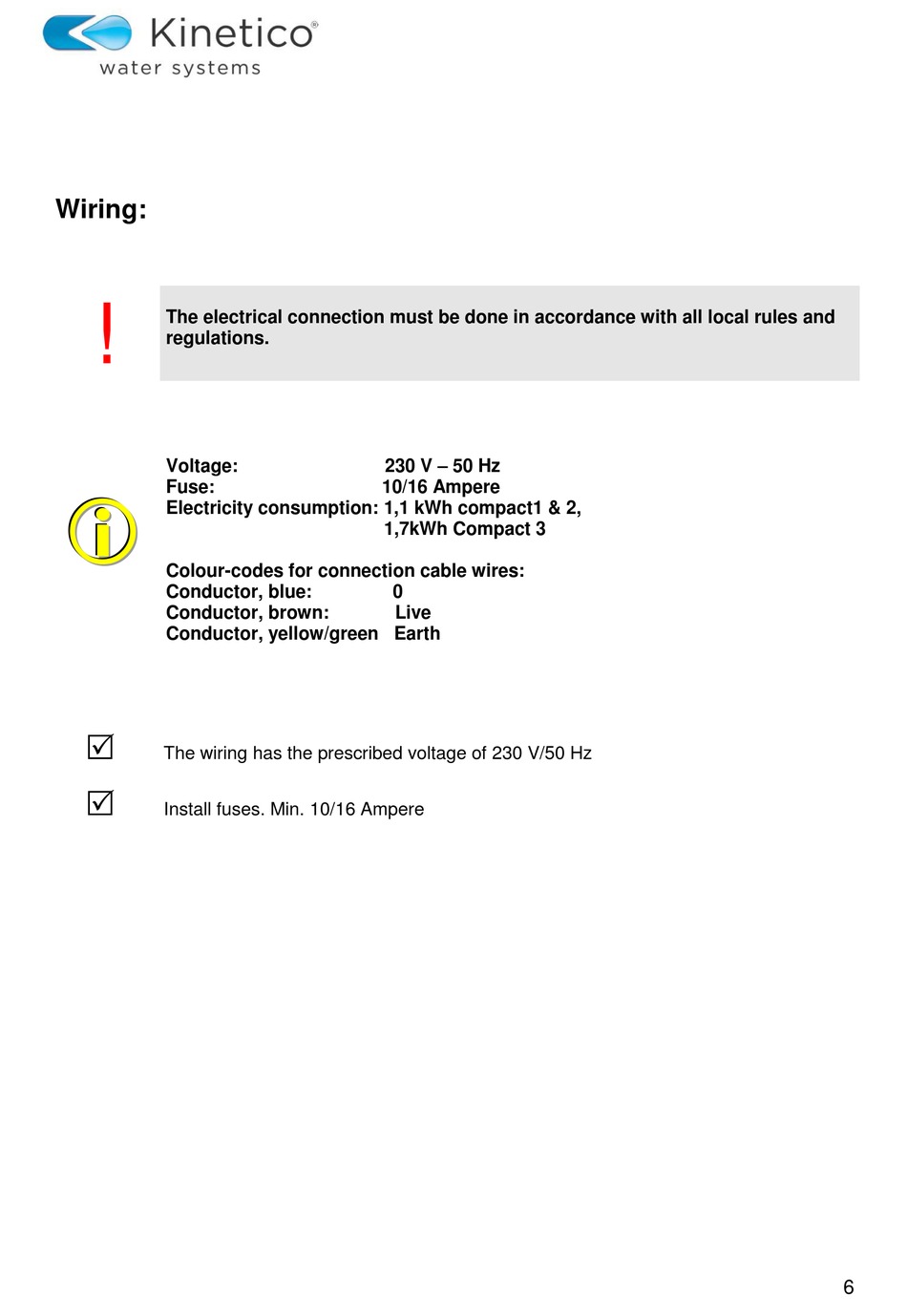

Wiring:
!
The electrical connection must be done in accordance with all local rules and
regulations.
Voltage:
Fuse:
Electricity consumption: 1,1 kWh compact1 & 2,
Colour-codes for connection cable wires:
Conductor, blue:
Conductor, brown:
Conductor, yellow/green Earth
The wiring has the prescribed voltage of 230 V/50 Hz
Install fuses. Min. 10/16 Ampere
230 V – 50 Hz
10/16 Ampere
1,7kWh Compact 3
0
Live
6
