Operating Instructions

Basic Operation

22.4°C
43.307mV
1052.50
HI
Diagnostic Thermocouple
RTD & Milliamp Calibrator
2, 3, 4 Wire Detection
Loop Leak Detect Transmitter Supply
HI MAX
READ
SET
MIN
LO
EZ-CHECK™ SWITCH
q

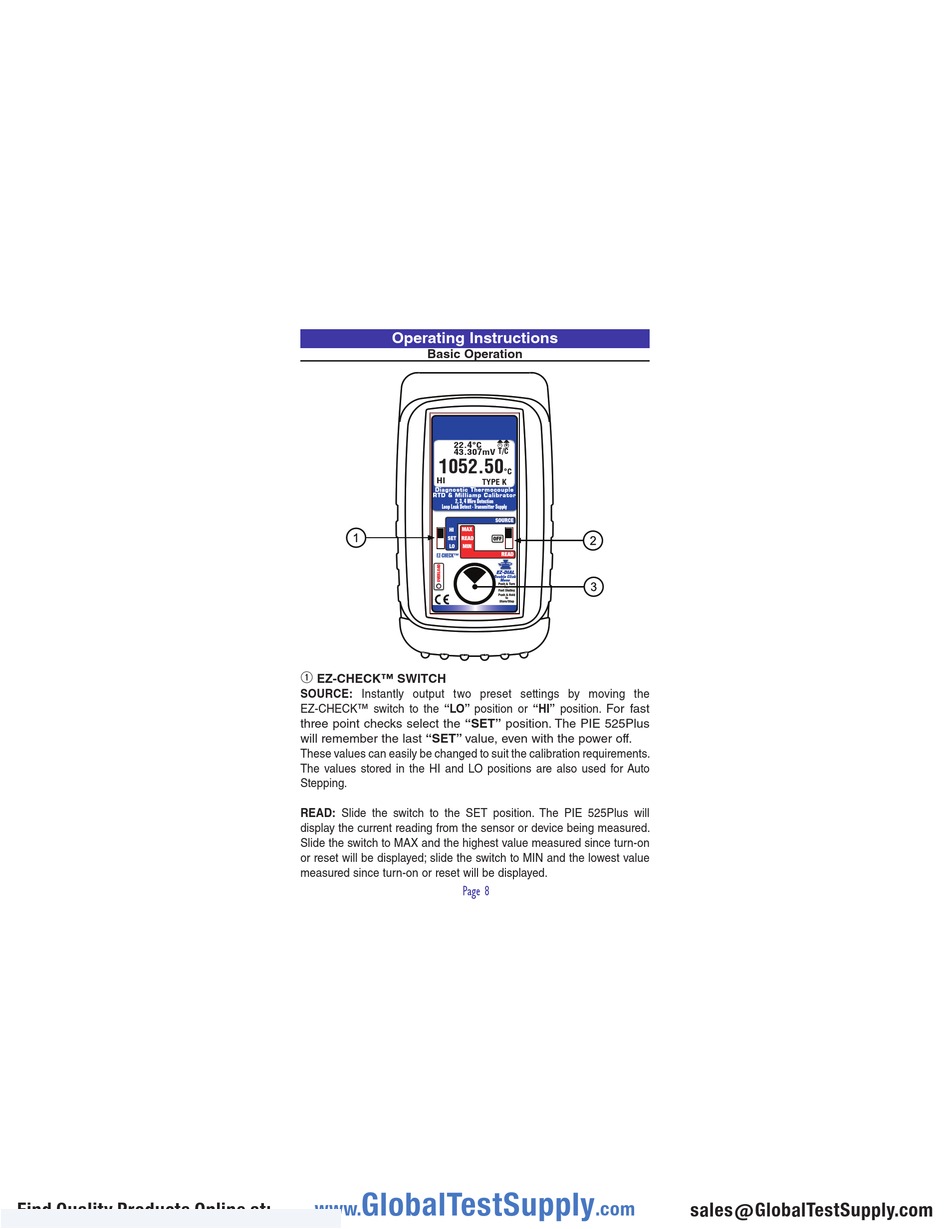

SOURCE: Instantly output two preset settings by moving the
EZ-CHECK™ switch to the "LO" position or "HI" position. For fast
three point checks select the "SET" position. The PIE 525Plus
will remember the last "SET" value, even with the power off.
These values can easily be changed to suit the calibration requirements.
The values stored in the HI and LO positions are also used for Auto
Stepping.
READ: Slide the switch to the SET position. The PIE 525Plus will
display the current reading from the sensor or device being measured.
Slide the switch to MAX and the highest value measured since turn-on
or reset will be displayed; slide the switch to MIN and the lowest value
measured since turn-on or reset will be displayed.
