• Easy to use
With the Model 541 you can check & calibrate all your frequency instruments and measure flow
sensors.
• Take it into the shop, plant or field
Carry it without worry - it comes with a carrying case and fits into your toolbox.
Accurate to ±0.005% of range.
• Calibrate in Hz, kHz , CPM and CPH
0.001 to 20.000 kHz
0.1 to 2000.0 Hz
0.01 Hz to 200.00 Hz
0.1 to 2000.0 CPM (Counts-per-Minute)
1 to 20000 CPH (Counts-per-Hour)
• Quickly output the frequency you need
Simulate vibration pickups and variable
speed drives with sine wave outputs and
flow meters and magnetic pickups with
square wave outputs. If you calibrate positive
displacement flow meters, Watt-hour meters
or slow rated integrators select frequencies
as slow as 1 CPH (0.0002777 Hz). Easily set
any value quickly to within 0.01 Hz with the
two speed adjustable EZ-Dial™ plus store
any three frequencies for instant recall with
the EZ-Check™ switch. Verify optical pickups
with the GATE TIME LED that is
synchronized with the output pulses.
• Match your instrument signal levels
Choose zero based or zero crossing square
or sine waves output from 0.1 V to 12 V
peak-to-peak. Measure from 0.1 V to 120 V
peak with X1 or X10 attenuation. Turn the
dial to adjust the output amplitude to the
level required.
• Read signals from flow meters
Measure flow meter, vibration, parts counter
and other process frequency signals from
0.1 V to 120 V. GATE TIME LED flashes with
received pulses indicating when the proper
input adjustment level is achieved.
• Calibrate totalizers without a stopwatch
Automatically output from 1 to 99999 pulses in 1 to 100 minutes. Easier and more accurate than
waiting around with the stopwatch to stop generating pulses at the correct time. Count input
pulses from 1 to 100 minutes to verify totalizer input signals.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

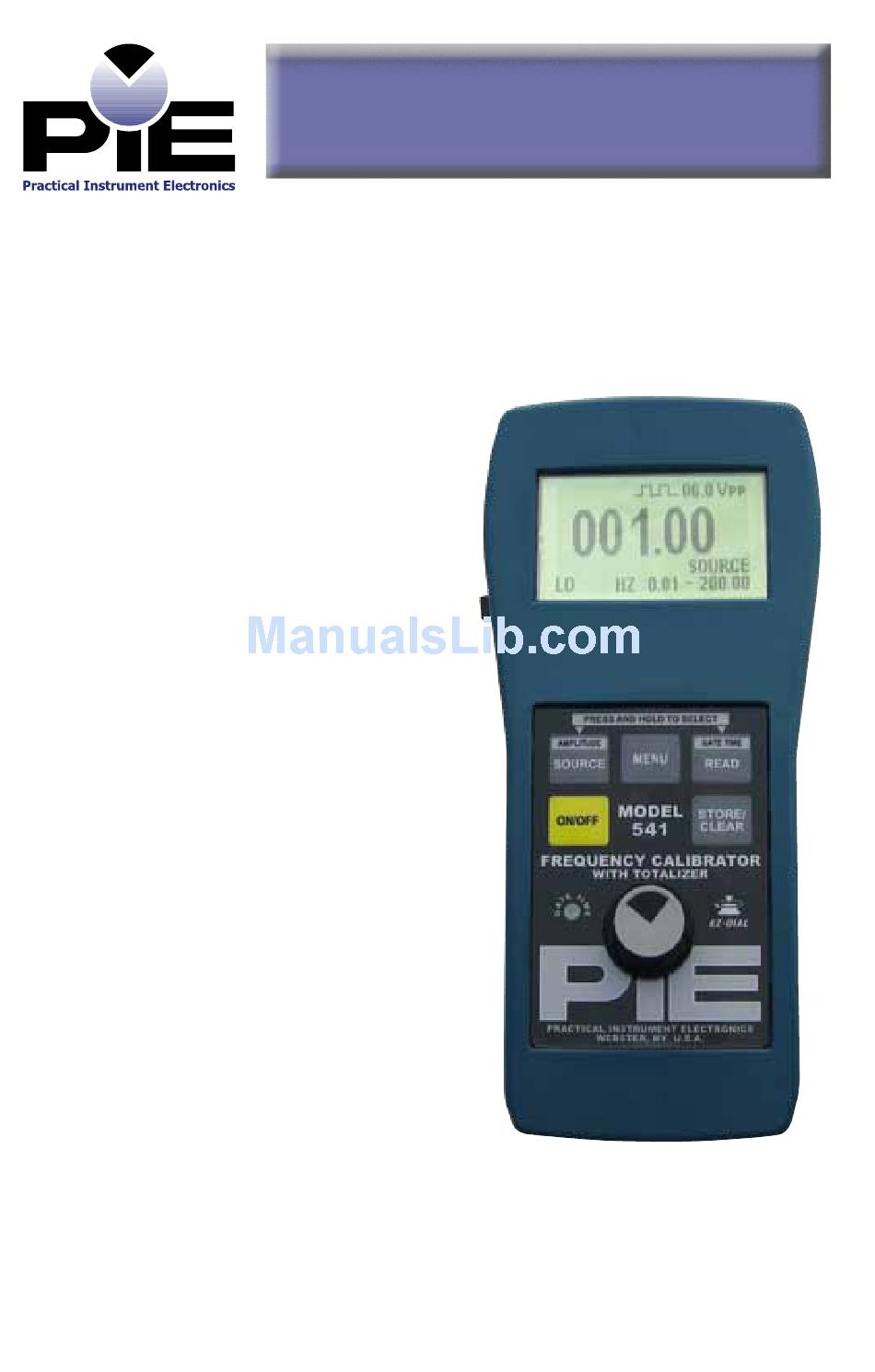

PIECAL Model 541
PIECAL Model 541
Frequency Calibrator with Totalizer
Frequency Calibrator with Totalizer
Operating Instructions
Operating Instructions
TestEquipmentDepot.com
Page 1
Advertisement
Related Manuals for PIE PIECAL 541
Summary of Contents for PIE PIECAL 541
- Page 1 PIECAL Model 541 PIECAL Model 541 Frequency Calibrator with Totalizer Frequency Calibrator with Totalizer Operating Instructions Operating Instructions • Easy to use With the Model 541 you can check & calibrate all your frequency instruments and measure flow sensors. • Take it into the shop, plant or field Carry it without worry - it comes with a carrying case and fits into your toolbox.
-
Page 2: Basic Operation
Basic Operation MENU Key Press and release the menu key to enable the configuration menu. This allows you to choose the settings for AUTO OFF, X1/X10, Zero Based/ 20000 Zero Crossing, EZ-Check HI/LO Readings, SOURCE SINE/SQUARE Wave output and reset to BASIC CPH 1 - 20000 CONFIGURATION. - Page 3 Configuration Configure the Calibrator 0 XING/BASED - pressing the knob will toggle between zero crossing and zero based output waveforms. Select zero crossing when the Press and release the ON/OFF Key to turn instruments you are calibrating require a the calibrator on then press and release the waveform that has both positive and negative MENU Key to enable the configuration menu.
- Page 4 Calibrating Frequency Instruments SOURCE Choose this function to provide a frequency 20000 signal into flow meters or any input devices that measure frequency signals. SOURCE CPH 1 - 20000 1) Disconnect the input signal from the device to be calibrated. 2) Press release SOURCE/...
- Page 5 Calibrating Totalizers Choose this function to provide a number of pulses for a set time into parts counters or totalizers. 1) Disconnect the input signal from the device to be calibrated. 2) Press and release the SOURCE/AMPLITUDE Key until TOTALIZER appears on the display. 3) Press and hold the READ/GATE TIME key to enable time adjustment.
- Page 6 Measuring Frequencies READ Choose this function to measure frequency from flow, vibration sensors or frequency outputs. 1) Disconnect the frequency sensor from any other device. 2) Press and release READ/GATE TIME Key step through the read ranges. 20000 3) Connect the 541 to the output of the device to be SOURCE calibrated.
- Page 7 Model 541 Specifications (Unless otherwise indicated all specifications are rated from a nominal 23 °C, 70 % RH for 1 year from calibration) General Accuracy ±0.005% of Range Ranges 0.001 to 20.000 kHz 0.1 to 2000.0 Hz 0.01 to 200.00 Hz 0.1 to 2000 CPM (Counts-per-Minute) 1 to 20000 CPH (Counts-per-Hour Operating Temperature Range...
-
Page 8: Additional Information
The equipment will be repaired, replaced or adjusted at our option. The liability of Practical Instrument Electronics (PIE) is restricted to that given under our warranty. No responsibility is accepted for damage, loss or other expense incurred through sale or use of our equipment.
