Black Box IC832A Manual

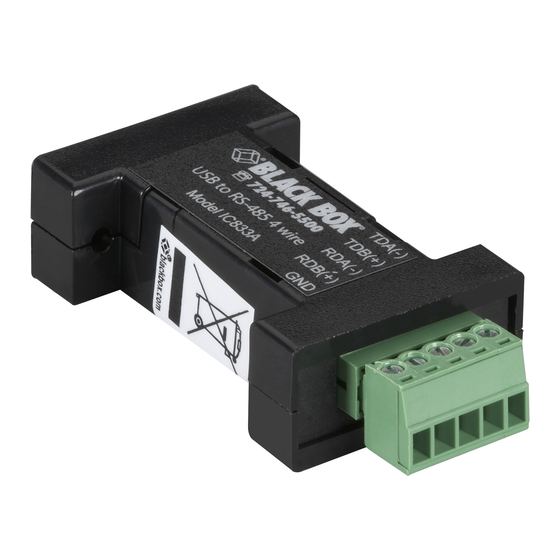

USB to RS-485 Mini Converter
Connect RS-485 devices to your USB port.
Just plug the converter into an available USB port on your computer or USB
hub and install the drivers (supplied on CD-ROM).

1. Specifications

Data Rate — USB: 12 Mbps;
Serial: Up to 921.6 kbps
MTBF — 1,869,313 hours
MTBF Method — Parts count reliability prediction
Software — Drivers included for Windows 98, Me, 2000,
and XP; and Windows Vista
Terminal Block Signals — RS-485 2-Wire: Data A(-),
Data B(+), Ground;
RS-485 4-Wire: TDA (-), TDB(+), RDA(-), RDB(+), Ground
Connector — USB: Type B female (high-retention);
Serial: Removable terminal block (28 to 16 AWG)
Standard — USB 2.0, backward compatible
Temperature Tolerance — Operating: 32 to 158° F
(0 to 70° C);
Storage: -40 to +185° F (-40 to +85° C)
Operating Humidity — 0 to 95%, noncondensing
Power — Source: USB port; Input Voltage: 5 VDC;
Consumption: Approximately 0.5 W (low-power device
draws less than 100 mA)
Customer
Support
Information
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
Size — 2.6"H x 1.3"W x 0.6"D (6.5 x 3.2 x 1.6 cm)
Weight — 0.23 lb. (104.3 g) with USB cable

2. Overview

2.1 Description

Universal Serial Bus (USB) has become the connectivity work-
horse of today's PCs, replacing the familiar serial ports.
However, many commercial and industrial devices still use the
RS-485 interface. To connect these devices to modern PCs, you
need a simple and reliable conversion solution. The IC832A and
IC833A offer this solution in a space-saving, USB-port-powered
package. Simply plug the converter into an available USB port
on your computer or USB hub and install the drivers supplied
on CD-ROM. The device will show up as an additional COM
port in the Windows Device Manager, which is fully compatible
with your Windows applications. A 3.2-ft. (1-m) USB cable is
included.

2.2 Features

• Connect RS-485 devices to your USB port.
• Perfect for field service applications.
• Small—fits easily into any laptop bag.
• USB port powered.
February 2010 IC832A
MT1000A-85-R4
IC833A
®
8024-0512
