- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Hikvision DS-3E2326P o cerca il tuo prodotto tra le migliori offerte di Switch 16/24-Port 100M Long-Range PoE Switch Quick Start Guide 16/24-Port 100M Long-Range PoE Switch Quick Start Guide...
-
Page 2: Table Of Contents
16/24-Port 100M Long-Range PoE Switch Quick Start Guide TABLE OF CONTENTS Chapter 1 Introduction ....................... 1 1.1 Overview ..........................1 1.2 Packing List ..........................1 1.3 Appearance ..........................2 1.3.1 Front Panel ........................2 1.3.2 Rear Panel ........................4 Chapter 2 Installation ......................... 5 2.1 Preventive and Cautionary Tips .................... - Page 3 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
- Page 4 16/24-Port 100M Long-Range PoE Switch Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 5 16/24-Port 100M Long-Range PoE Switch Quick Start Guide Applicable Models This manual is applicable to DS-3E03XXP series switches. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text.
-
Page 6: Chapter 1 Introduction
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Chapter 1 Introduction 1.1 Overview DS-3E03XXP series switches are layer 2 network switches used in the access of surveillance network. The switches provide 16/24 10/100M RJ45 ports, 1000M combos, and support long-range access up to 250 m. -
Page 7: Appearance

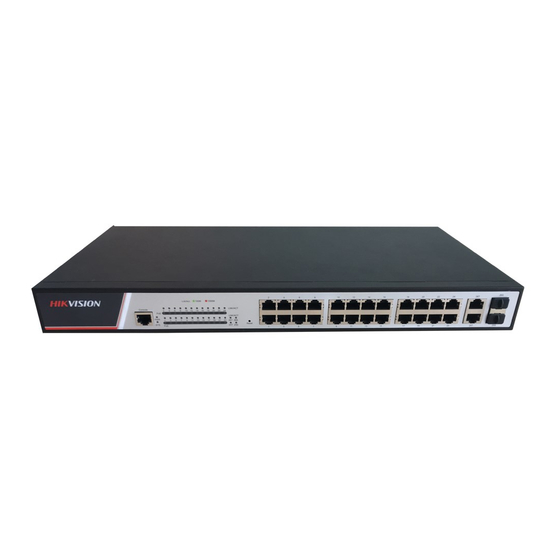

16/24-Port 100M Long-Range PoE Switch Quick Start Guide 1.3 Appearance 1.3.1 Front Panel Front panels of DS-3E0318P and DS-3E0326P are shown as below. Front Panel of DS-3E0318P Figure 1-1 DS-3E0318P Front Panel Front Panel of DS-3E0326P Figure 1-2 DS-3E0326P Front Panel Indicator Indicators are used to monitor the status of switches. - Page 8 16/24-Port 100M Long-Range PoE Switch Quick Start Guide Unlit No 1000M combo connected or connection is abnormal. LINK/ACT Solid The port is connected. indicator Flashing The port is transmitting data. Unlit The port is disconnected or connection is abnormal. PoE indicator Solid The switch provides power supply to PD normally.
-
Page 9: Rear Panel
16/24-Port 100M Long-Range PoE Switch Quick Start Guide When connected to both the network cable and optical fiber at the same time, the port works as a fiber optical interface. 1.3.2 Rear Panel Rear panel of DS-3E0318P and DS-3E0326P is shown as below. Rear Panel of DS-3E0318P and DS-3E0326P Figure 1-3 DS-3E0318P and DS-3E0326P Rear Panel Grounding Terminal... -
Page 10: Chapter 2 Installation
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Chapter 2 Installation 2.1 Preventive and Cautionary Tips Put on anti-static gloves before installation. During the installation, power off your switch. Use the attached power adapter or power cord to connect the switch to power supply. ... -
Page 11: Lightning Protection
16/24-Port 100M Long-Range PoE Switch Quick Start Guide 2.2.3 Lightning Protection In thunderstorm weather, a sudden strong current may damage the switch. To protect your switch from lightning strike or strong current, please: Make sure the switch, rack, installation desktop, and power socket on the wall all are well-grounded. -
Page 12: Grounding
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Figure 2-2 Fix Switch to Rack Do not place any heavy object on the switch in case of any incident. Make sure sound cooling and ventilation. 2.4 Grounding Purpose: Grounding is used to quickly release overvoltage and overcurrent induced by lightening for switch, and to protect personal safety. -
Page 13: Without Grounding Bar
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Figure 2-3 Grounding with Grounding Bar 2.4.2 Without Grounding Bar Purpose: If there is no grounding bar but earth is nearby and the grounding body is allowed to be buried, follow the steps below. Step 1 Bury an angle steel or steel pipe (≥... -
Page 14: Chapter 3 Physical Connection
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Chapter 3 Physical Connection 3.1 Connecting RJ45 Port Use a network cable to connect your switch to the RJ45 port of an opposite end device. The RJ45 port can connect with network camera, IP camera, NVR, switch, etc. Figure 3-1 RJ45 Port Connection 3.2 Connecting 1000M Combos This section uses dual-fiber SFP optical module as an example. -
Page 15: Checking The Cabling
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Step 1 Connect the two paired SFP optical module with an optical fiber. Step 2 Hold SFP optical module from one side, and smoothly plug it into the switch along with the SFP port slot until optical module and the switch are closely attached. - Page 16 16/24-Port 100M Long-Range PoE Switch Quick Start Guide UD11423B...
