To rack-mount devices:
1. Attach the brackets to the device using the screws provided in the
Bracket Mounting Kit.
2 1
2 2
2. Mount the device in the rack, using four rack-mounting screws (not
provided).

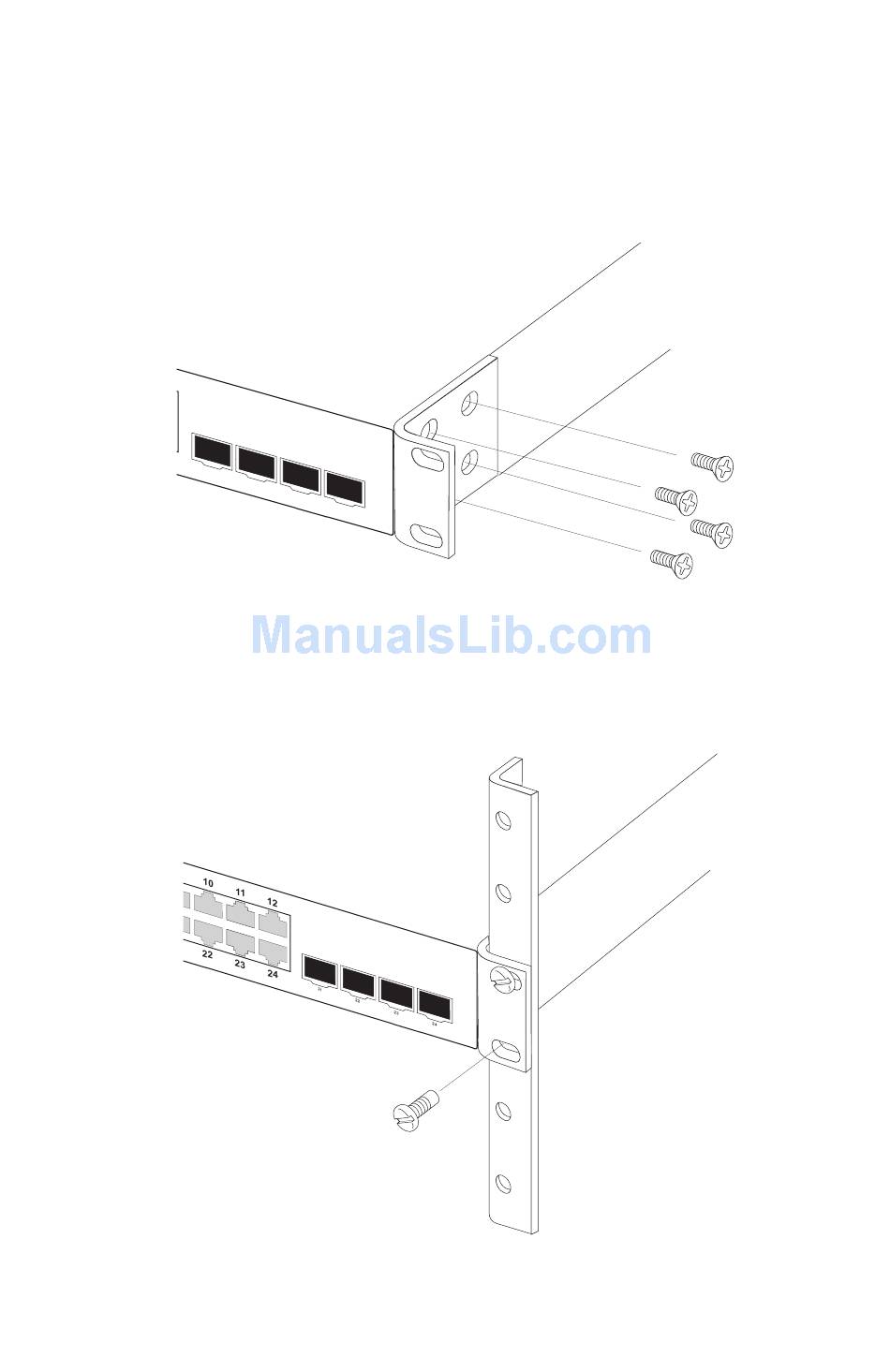

Figure 3-3 Installing the Switch in a Rack

2 3
2 4

Figure 3-2 Attaching the Brackets
