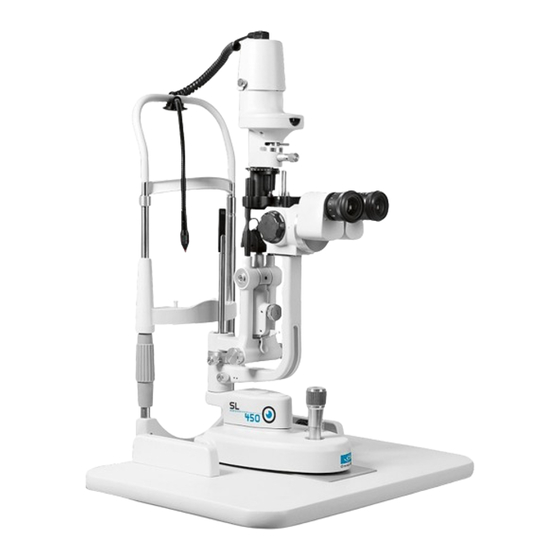

Summary of Contents for Essilor SL 350

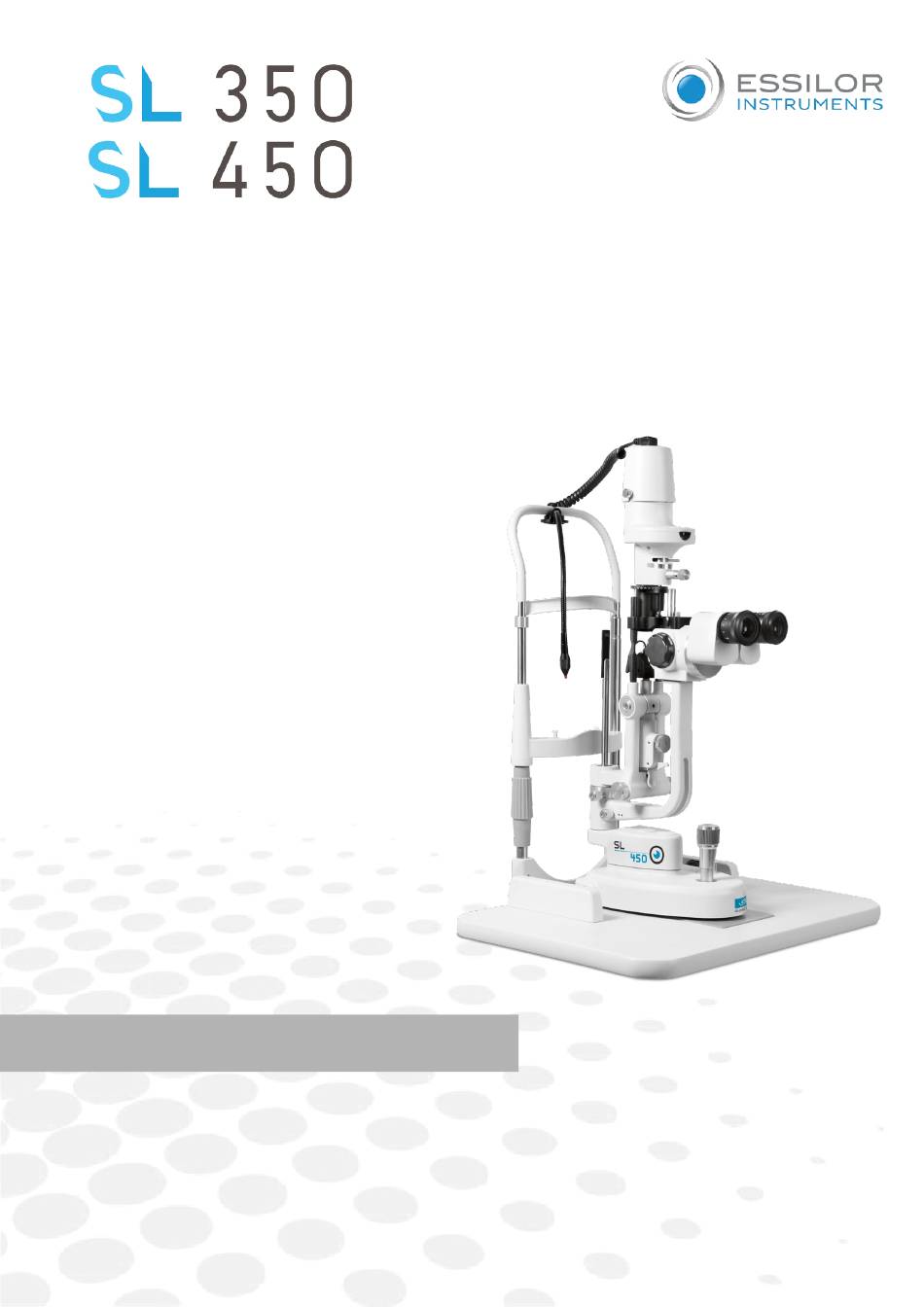

- Page 1 User manual www.essilor-instruments.com...
-
Page 2: Table Of Contents
> C SER MANUAL ONTENTS ONTENTS I. I NTRODUCTION 1. General description 2. Instrument classification 3. Specifications a. Microscope b. Slit illumination c. Base d. Chinrest e. Power f. Output voltage g. Dimension and weight h. Environmental conditions II. S AFETY AND PRECAUTIONS 1. - Page 3 > C SER MANUAL ONTENTS 1. Protection 2. How to adjust the slit width of the control knob 3. How to adjust the inclination of the illumination part 4. How to replace the fuse 5. How to replace the chinrest paper 6.
-
Page 4: Introduction
I. I NTRODUCTION... -
Page 5: General Description
> I. I SER MANUAL NTRODUCTION The complete user manual is available on a web space.To access, please scan the QR code below using a dedicated application. Le manuel utilisateur complet est disponible sur un espace web. Pour y accéder veuillez scanner le QR code ci-dessous à... -
Page 6: Specifications
> I. I SER MANUAL NTRODUCTION 3. S PECIFICATIONS a. Microscope ECHNICAL DATA ALUE Type Galilean type SL350L: Three positions revolving drum Magnification change SL450L: Five positions revolving drum Eyepieces 12.5X Angle between eyepieces 13° SL350L: 10X, 16X, 25X Total magnification ratio SL450L: 6X, 10X, 16X, 25X, 40X Pupillary adjustment 52 mm ~ 78 mm... -
Page 7: Power
> I. I SER MANUAL NTRODUCTION e. Power ECHNICAL DATA ALUE Input voltage 220V / 110V ~ ± 10% Input frequency 50Hz / 60Hz Power consumption 10VA (max) f. Output voltage ECHNICAL DATA ALUE Light 6V (continuously adjustable) Fixation g. Dimension and weight ECHNICAL DATA ALUE Dimension... -
Page 8: Safety And Precautions
II. S AFETY AND PRECAUTIONS... -
Page 9: Precautions
> II. S SER MANUAL AFETY AND PRECAUTIONS General requirements for safety Please read carefully about following precautions to avoid unexpected personal injury as well as the product being damaged and other possible dangers. 1. P RECAUTIONS 1. In case there is any trouble, please first refer to the trouble-shooting guide. If it still can't work, please contact with the authorized distributor or our repair department. -
Page 10: Safety Marks
> II. S SER MANUAL AFETY AND PRECAUTIONS 2. S AFETY MARKS The safety marks, icons and warning symbols stuck on this instrument. ESCRIPTION Type B Manufacturing date Class I The slit lamp is class I medical device Type B English form of B type WEEE mark: Please deal with the waste disposal produced by the machine following relevant laws and regulations. -
Page 11: Technical Specifications
> II. S SER MANUAL AFETY AND PRECAUTIONS 5. T ECHNICAL SPECIFICATIONS The slit lamp microscope is powered by network power supply. The following marks are required permanently affixed to the instruments according to IEC 60601-1 Standard. The following table lists the tips for your reference. -
Page 12: Installation And Working Condition
> II. S SER MANUAL AFETY AND PRECAUTIONS 8. I NSTALLATION AND WORKING CONDITION Slit lamps are network powered medical instrument. Please check pert the checking list after opening the carton and install the instrument according to this user manual. Test and ensure the instrument operating well before putting to use. -
Page 13: Nomenclature
III. N OMENCLATURE... - Page 14 > III. N SER MANUAL OMENCLATURE With: N° ESCRIPTION Main power switch. Brightness control knob: Avoid working continuously at high brightness or the service life of the bulb will be shortened. Joystick: Incline joystick to move the instrument slightly on the horizontal surface and rotate it to adjust the elevation of the microscope.
- Page 15 > III. N SER MANUAL OMENCLATURE The mark line on the ring of the microscope arm. Together with (7) to indicate the angle between the microscope and illumination unit. Magnification select dial: Five different magnifications are provided. Prism box: Separate the prism box to adjust the interpupillary distance. 12.5X eyepieces.
-
Page 16: Assembly
IV. A SSEMBLY... -
Page 17: Main Parts Check List
> IV. A SER MANUAL SSEMBLY All parts should be taken out with great care from the packing case before assembling. 1. M AIN PARTS CHECK LIST UANTITY MAGE Chinrest part Microscope part Illumination part Tabletop part Rail cover Breath shield Input power cable Focusing test bar Dust proof cover... -
Page 18: Assembly Procedure
> IV. A SER MANUAL SSEMBLY 2. A SSEMBLY PROCEDURE Open the box, and take out the tools: cross screw driver and spanner. A F1AL250V fuse has been inserted into the power box. Spare fuse are provided in the box. Remove "A team"... - Page 19 > IV. A SER MANUAL SSEMBLY 1. "Up & Down" switch 2. White adapters Remove the four screws of "B Team" with screw driver, and fix the chinrest part to the tabletop in the way as below. Take out the slit lamp part, put it on the rails of the tabletop, and echeck whether the wheels can be rolled steadily on the rails.
- Page 20 > IV. A SER MANUAL SSEMBLY Take out the binocular tubes of microscope part. Match the groove on the binocular tubes with the pin on the microscope body. Fasten the fixing screw on the body to the microscope. Don't touch the objective lens and eyepieces during assembling. 1.
- Page 21 > IV. A SER MANUAL SSEMBLY Brightness control knob socket Illumination lamp socket Fixation lamp socket Fuse box Power socket 110V / 220V voltage selector Check the voltage selector, this power box support working under the voltage of 110V and 220V. Please select the right voltage according to the voltage in your country.
-
Page 22: Checking Procedure
> IV. A SER MANUAL SSEMBLY 3. C HECKING PROCEDURE This instrument supplies a 3-wire cable. Please select a proper power socket as matched. Ensure that the instrument is grounded well. A 3 pin cable is supplied with this instrument. Correct plug is supplied as well. Ensure the instrument is grounded. - Page 23 > IV. A SER MANUAL SSEMBLY Turn OFF the main power and cover the instrument with the dust-proof cover after testing. SL350L / SL450L - Slit lamp microscope > V2 - 03-2018...
-
Page 24: Operation Procedures
V. O PERATION PROCEDURES... -
Page 25: Preparation For Diopter Compensation And Ipd Adjustment
> V. O SER MANUAL PERATION PROCEDURES 1. P REPARATION FOR DIOPTER COMPENSATION AND ADJUSTMENT Use the focusing test bar The bar is a standard accessory for accurate adjustment of the microscope. Insert it into the main shaft hole with the black flat surface facing the objective lens i.e. the direction of the operator. -
Page 26: V. O Peration Procedures
> V. O SER MANUAL PERATION PROCEDURES Adjustment of diopter compensation The focus of microscope is calibrated according to the emmetropia. If the operator is ametropia, he should adjust the eyepiece diopter (see picture below) according to the following procedures: Diopter adjustment ring Rotate the diopter adjustment ring counter-clockwise to the end. -
Page 27: Patient Position And Use Of The Fixation Point
> V. O SER MANUAL PERATION PROCEDURES 2. P ATIENT POSITION AND USE OF THE FIXATION POINT The patient should put chin on the chinrest and push forehead against the forehead belt. Position of the patient head Adjust the elevation of chinrest until the light of slit lamp projects to the correct position of patient's eye. 1. -
Page 28: Operation Of Illumination System
> V. O SER MANUAL PERATION PROCEDURES Horizontal fine adjustment Tilt the joystick to move the microscope slightly on the horizontal surface and watch though the eyepieces until a clear and sharp image appear on the field. Locking the base When finishing the adjustment, fasten the base locking screw to lock the base and prevent it from sliding. - Page 29 > V. O SER MANUAL PERATION PROCEDURES Changing the aperture and slit height Rotate the aperture and slit height dial to get four round light spots of different diameter sizes: 14 mm, 10 mm, 5 mm, 3 mm, 2 mm, 1 mm, and 0.5 mm. Besides the round spot, a wedge-shaped continuous slit spot will be got, whose length is from 1 mm to 14 mm.
- Page 30 > V. O SER MANUAL PERATION PROCEDURES Oblique illumination In order to ensure the possibility ofconducting a binocular fundusexamination in optical cross section, the anterior chamber lens should be used, the illumination unit is rotated through 90°with the aperture control knob and with thelatch in stages of 5° (the range: 0°-20°), the illumination unit and the microscope are turned to the center position.
-
Page 31: Tips Of Operation Process
> V. O SER MANUAL PERATION PROCEDURES From the left to the right: • No filter • Heat-absorbing filter • ND filter • Red-free • Cobalt blue The no filter is used for proofreading for the manufacturer. 5. T IPS OF OPERATION PROCESS •... -
Page 32: Cleaning
VI. C LEANING... -
Page 33: Method
> VI. C SER MANUAL LEANING The replaced waste materials should be treated as industrial,rubbish. 1. M ETHOD Cleaning the lens and reflecting mirror If there is any dust on the lenses or reflecting mirror, wipe it off with soft cotton dipped in absolute alcohol. -
Page 34: Cleaning Cycle
> VI. C SER MANUAL LEANING 2. C LEANING CYCLE It required that the slit lamp should be stored and used in a clean environment. For prolong the service life of the instrument please clean it regularly per as suggestions below. 1. -
Page 35: Maintenance
VII. M AINTENANCE... -
Page 36: Protection
> VII. M SER MANUAL AINTENANCE Correct and periodical protection and maintenance will prolong the service life of the slit lamp. The suggested maintaining cycle is once per two months. 1. P ROTECTION There are always dusts and physiological salt solution dropping into the main shaft hole of the illumination ram during the operation. -
Page 37: How To Adjust The Inclination Of The Illumination Part
> VII. M SER MANUAL AINTENANCE 3. H OW TO ADJUST THE INCLINATION OF THE ILLUMINATION PART If the inclination mechanism of the illumination part is too loose, fasten the screw on both sides of the pivot point with the screw driver. Screw 4. -
Page 38: How To Replace The Chinrest Paper
> VII. M SER MANUAL AINTENANCE 5. H OW TO REPLACE THE CHINREST PAPER Remove the two fixation bolts and place the new papers. 6. C ONSUMABLES 1. Fuse: F1AL250 2. Bulb: 6V20W halogen bulb The service life of the halogen bulb is 480 hours. However, it can still work beyond the time limit, while the brightness of the bulb might be lower. - Page 39 VIII. T ROUBLESHOOTING GUIDE...
-
Page 40: Troubleshooting Guide
> VIII. T SER MANUAL ROUBLESHOOTING GUIDE In case there is any trouble, please check according to the following table for reference. If it still cannot work, please contact the repair department of an authorized distributor. ROUBLE OSSIBLE CAUSE EMEDY The cable isn't connected correctly with Connect the power cable correctly the power socket... -
Page 41: Appendix
IX. A PPENDIX... - Page 42 > IX. A SER MANUAL PPENDIX Electrical circle drawing SL350L / SL450L - Slit lamp microscope > V2 - 03-2018...
- Page 43 Essilor Instruments USA 8600 W. Catalpa Avenue, Suite 703 Chicago, IL 60656 Phone: 855.393.4647 Email: info@essilorinstrumentsusa.com www.essilorinstrumentsusa.com...
