- Page 4 Overview WARNING: See safety information included with the device for warnings and precautions. To maximize battery life, plug in the navigation unit for the first 2 hours of use. Always make sure your GPS has a clear view of the sky. The first time you use the device, it may take up to 15 minutes for your GPS to connect to the satellites.
- Page 5 Power Key Battery Power Indicator PHOTO TO COME NOTE: Use the Reset button (located on the side of the device) to restore factory settings and restart the device.
-
Page 6: Install The Mount
Install the Mount NOTE: Follow all local regulations governing the placement of the mount. Select an area with a line of sight to the sky and GPS satellites to ensure reliable GPS information. Clean and dry the mounting area. Remove the suction cup protective film. Adjust the angle of the mount using the thumbscrew. - Page 7 Main Menu Enter truck information and access truck-specific use tools. Show location on the map and view navigation instructions. Change driver status. Choose a destination. Select TND™ and route preferences. Mute/unmute the speaker. Adjust speaker volume. Select the trailer load option. Indicates power status.
- Page 8 Enter Truck Information and Set Warnings Tap Truck Tools > Truck Info or Warnings. to view all options. Tap the option button to be changed. On the On the right, left, tap enter settings Enter new settings. on an for the option option Tap Back to save changes.
- Page 9 Route to a Destination (Continued) Enter the name of the city. (Note: As you type, the keyboard displays only the next possible letter. Prompts appear in the top bar. Tap the name to select. Or, tap List to view cities beginning with the letter(s) you entered.
- Page 10 Confirm Destination Window Destination address. Begin route to destination. Cross reference to printed Rand McNally Motor Carriers’ Road Atlas. Return to previous window. View the map. Change the starting address for a route to the location displayed on the map screen.
-
Page 11: Google Search
Find a Point of Interest (POI) Tap Choose Destination > Points of Interest. Select a search type (My Truck, City, My Route, End of Day or Destination). Select a category and, if necessary, a subcategory. Tap on the Point of Interest in the displayed list. Google Search Tap Choose Destination >... -
Page 12: Route Map Window

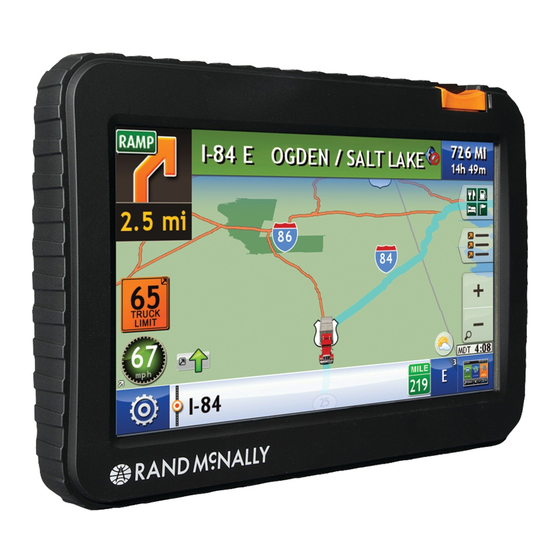

Route Map Window Repeat spoken next-maneuver instructions. Name of street you will turn onto next. Show arrival time and remaining distance. Directions list slideout. Zoom in/zoom out. Tap to view the Traffic Window. Current speed limit. Tap on the current speed to display the Virtual Dashboard. Additional current location or route options. -
Page 13: Junction View
Junction View When on a route, Junction View displays when you have an upcoming maneuver. Once past the maneuver, Junction View closes and the previous window displays. The highway you are currently on. The highway you will be on after the next maneuver. Number and direction of lanes for the next maneuver. - Page 14 Weather To view current weather information and the three-day forecast for your location, tap the Weather icon [show image?] on the Route Map Window. To view weather information at your destination, tap At Destination. [What about along the route?] Tap Map Overlay to choose from different weather types to display on the map as you drive.
-
Page 15: Virtual Dashboard
Virtual Dashboard When using the virtual dashboard on a route, the virtual dashboard closes and the Junction View displays an upcoming maneuver. Once past the maneuver, the virtual dashboard redisplays. Current direction of travel. Displays current time at the yard, current location and your destination. Sunrise/Sunset time based on vehicle location (latitude/longitude) and day. - Page 16 View Timers and Logs Countdown timers are controlled by the Driver Status (Driving, On Duty, or Off Duty) selected on the Main Menu. Truck Tools > Timers, Logs, Trails, Fuel Timers to view timers, odometer readings, and times. Tap on a field to change or reset the number. Logs to view a list of mileage logs by quarter.
- Page 17 View Trails and Fuel Truck Tools > Timers, Logs, Trails, Fuel Set Trails to record a “bread-crumb” path of GPS coordinates where your truck has traveled. Tap any record to view the trail, edit the name or set the color. Keep on Map to display the trail on the Route Map Window.
- Page 18 Set Routing and Device Options Tap Preferences. Tap the Truck, Route or Device tab. to view options. On the left, On the right, tap on an enter settings Tap the option button to be changed. option for the option Enter the new settings for the option. 10.
- Page 21 User must contact Rand McNally at 1-800-333-0136 for return authorization and instructions. User will be required to provide proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt. The consumer must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Rand McNally’s expense, if the product is repaired or replaced under warranty.
- Page 22 The User agrees to allow User-provided information to Rand McNally to be used for internal business evaluation purposes, including, but not limited to, evaluating the effectiveness of the services provided, methods to simplify or improve User experiences. Such information will not be used by third parties or in any way that discloses the identity of the User.
