LED Indicators

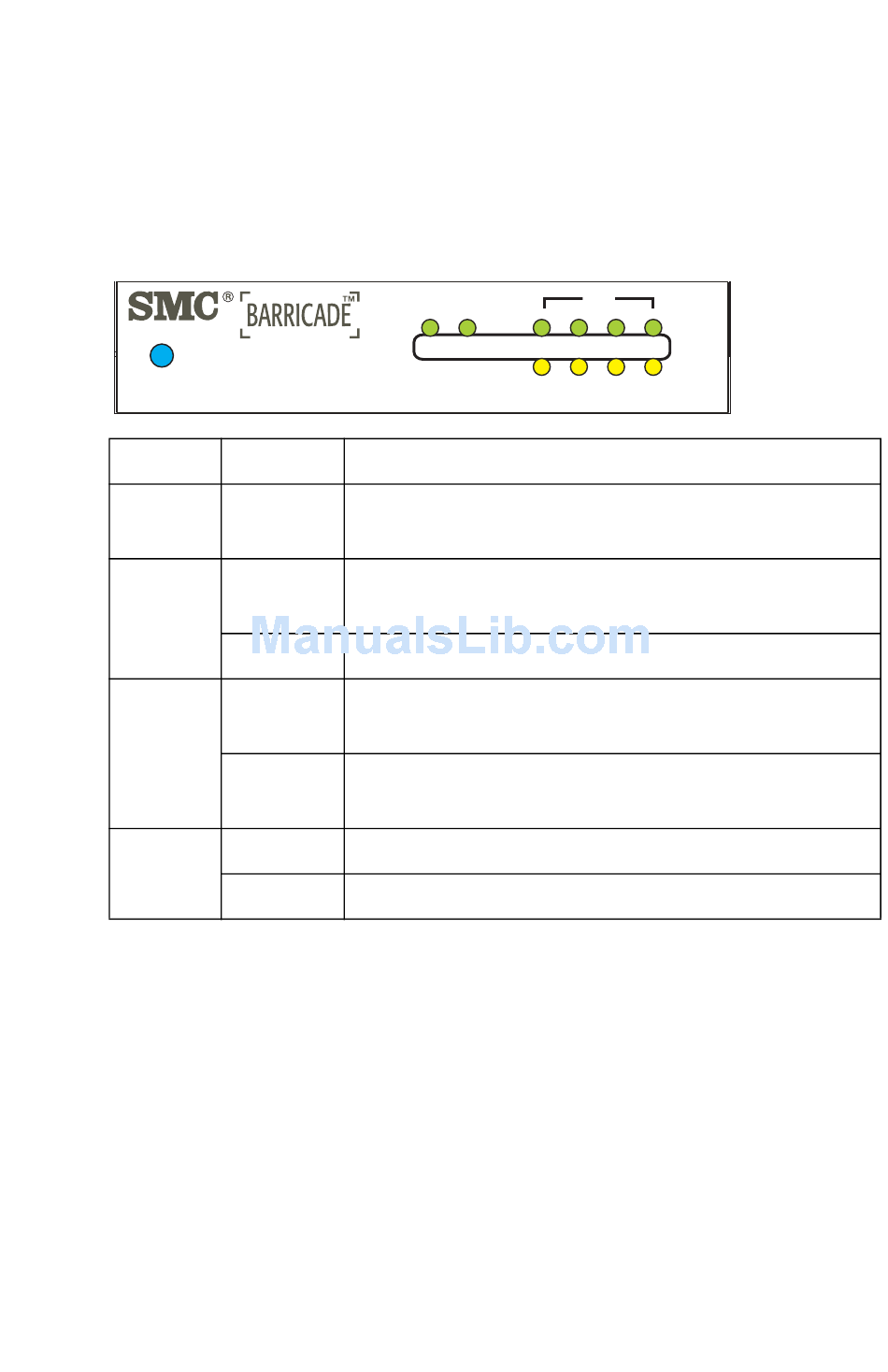

The SMC7004ABR includes comprehensive status LED
indicators, as described in the following figure and table.
SMC7004ABR
Reset
LED
Power
(Green)
WAN
(Green)
Link/Act
(Green)
10/100
(Amber)
Power
Status Description
On Barricade™ Router is receiving power.
On The WAN port has established a valid network
connection.
Flashing The WAN port is transmitting or receiving traffic.
On The indicated LAN port has established a valid
network connection.
Flashing The indicated LAN port is transmitting or receiving
traffic.
On The indicated LAN port is operating at 100 Mbps.
Off The indicated LAN port is operating at 10 Mbps.
LAN
WAN
1 2 3
LED Indicators
Link/Act
10/100
4
3
