Installing the Router
3. Connect your printer: Use standard parallel printer cable to
connect your printer to the printer port on the Barricade™
Router.
4. Power on: Connect the power adapter to the Barricade™
Router.
Internet

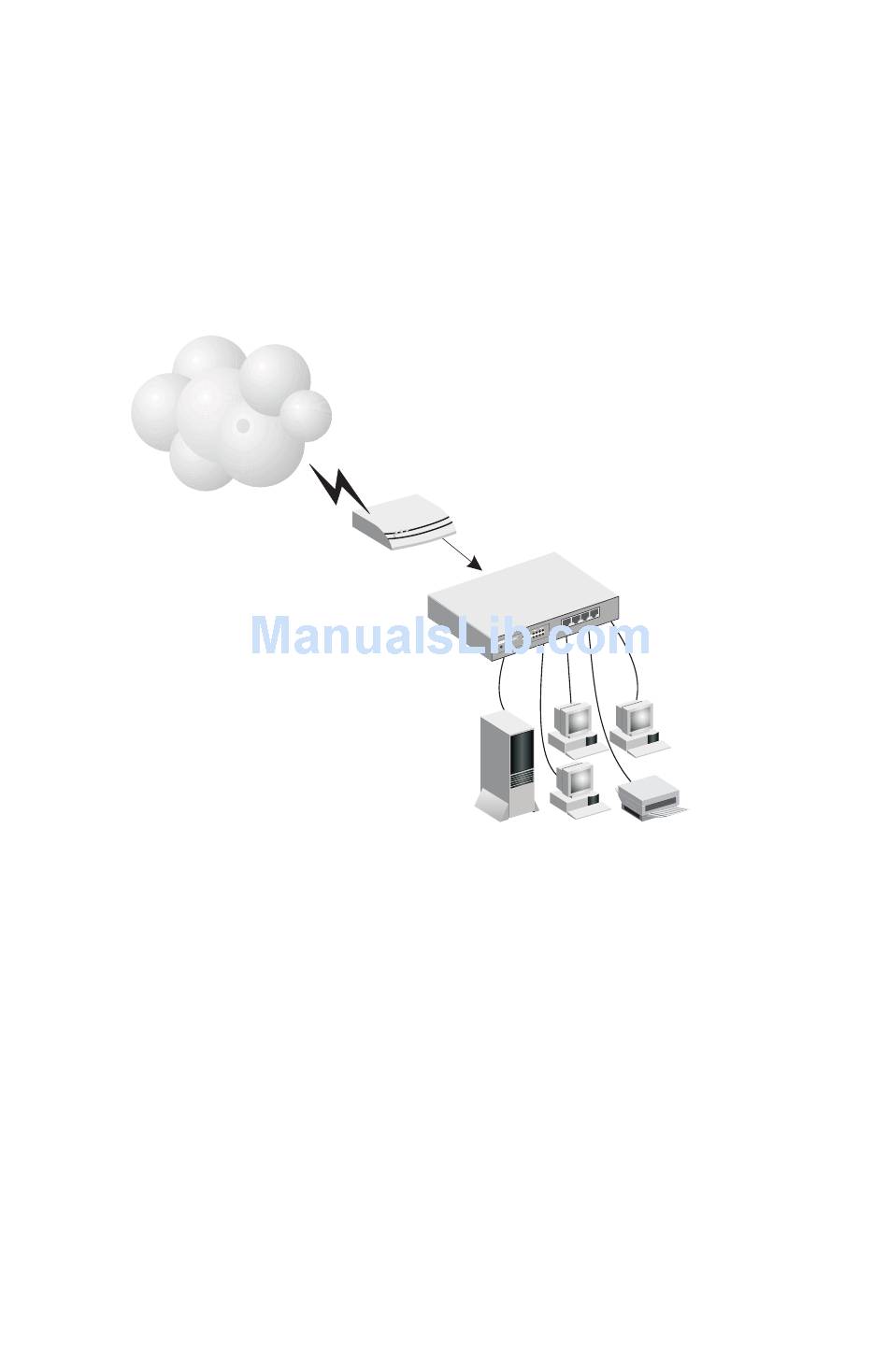

Figure 2. Connecting the Barricade™ Router
10
Internet
Access
Device
SMC7004ABR
Broadband Router
LA N
WA N
r 3
Po we 2
1
AB R
SM C7 004
Re set
SOHO Office or Residence
4
3
2
Lin k/A ct
1
10/ 100
4
