SMC Networks Barricade SMC7004VWBR V.2 User Manual

2.4 ghz 11 mbps wireless cable/dsl broadband router
Hide thumbs Also See for Barricade SMC7004VWBR V.2:
Table of Contents

Advertisement

Quick Links

Download this manual
ghjkjhg
SMC7004VWBR V.2
SMC7004VWBR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Barricade SMC7004VWBR V.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks Barricade SMC7004VWBR V.2

Summary of Contents for SMC Networks Barricade SMC7004VWBR V.2

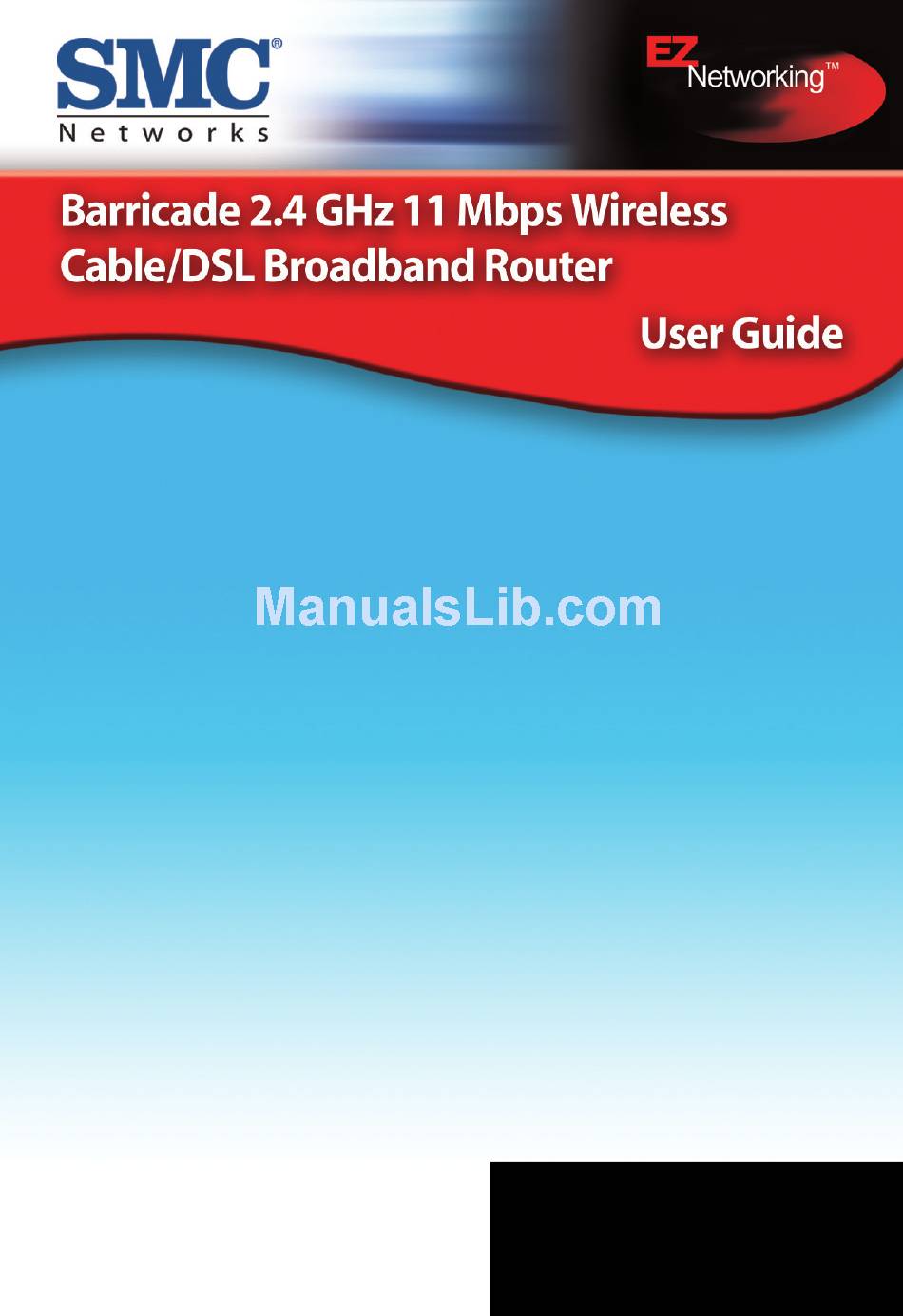

  • Page 1 ghjkjhg SMC7004VWBR V.2 SMC7004VWBR...
  • Page 2 Barricade Cable/DSL Broadband Router User Guide From SMC’s Barricade line of Broadband Routers 2.4 GHz 11 Mbps Wireless May 2003 Pub. # 150000026400E...

  • Page 3: Table Of Contents

    ABLE OF About the Wireless Barricade Router ..1 LED Indicators ........3 Features and Benefits .
  • Page 4 ABLE OF ONTENTS Network Address Translation (NAT) ....50 Firewall ........53 DDNS (Dynamic DNS) Settings .

  • Page 5: Important Information

    BOUT THE IRELESS ARRICADE OUTER Congratulations on your purchase of the Wireless Barricade™ Broadband Router. SMC is proud to provide you with a powerful yet simple communication device for connecting your local area network (LAN) to the Internet. IMPORTANT INFORMATION ! For DSL-User without a flat rate contract.
  • Page 6 About the Wireless Barricade Router This disconnect only happens if there are no more open requests received from either the LAN or the WAN side (here this can be requests from the internet, i.e. initiated through the use of so called file sharing programs like eMule, eDonkey, etc.) that keep the router active.

  • Page 7: Led Indicators

    LED Indicators The SMC7004VWBR V.2 includes status LED indicators, as described in the following figure and table. Status (Green) WLAN (Green) (Green) Link/ACT (Green) Flashing The indicated LAN port is transmitting or receiving traffic. Speed (Amber) Features and Benefits • Internet connection to DSL or cable modem via a 10/100 Mbps WAN port •...
  • Page 8 About the Wireless Barricade Router • DHCP for dynamic IP configuration, and DNS for domain name mapping • Stateful Packet Inspection (SPI) firewall with client privileges, hacker prevention, and NAT • NAT also enables multi-user access with a single-user account, and virtual server functionality (providing protected access to Internet services such as Web, FTP, mail and Telnet) •...

  • Page 9: Installing The Wireless Barricade Router

    NSTALLING THE Before installing the Wireless Barricade™ Broadband Router, verify that you have all the items listed under “Package Contents.” If any of the items are missing or damaged, contact your local SMC distributor. Also be sure that you have all the necessary cabling before installing the Wireless Barricade.

  • Page 10: Hardware Description

    Installing the Wireless Barricade Router Immediately inform your dealer in the event of any incorrect, missing or damaged parts. If possible, please retain the carton and original packing materials in case there is a need to return the product. Hardware Description The Wireless Barricade can be connected to the Internet using its RJ-45 WAN port .
  • Page 11 • 4 RJ-45 ports for connection to a 10BASE-T/100BASE-TX Ethernet Local Area Network (LAN). These ports can auto-negotiate the operating speed to 10/100 Mbps, the mode to half/full duplex, and the pin signals to MDI/MDI-X (i.e., allowing these ports to be connected to any network device with straight-through cable).

  • Page 12: System Requirements

    Installing the Wireless Barricade Router Item Description Reset Use this button to reset the power and restore the default factory Button settings. Fast Ethernet ports (RJ-45). Connect devices (such as a PC, hub Ports or switch) on your local area network to these ports. WAN port (RJ-45).

  • Page 13: Connect The System

    Connect the System The Wireless Barricade can be positioned at any convenient location in your office or home. No special wiring or cooling requirements are needed. You should, however comply with the following guidelines: • Keep the Wireless Barricade away from any heating devices. •...
  • Page 14 Installing the Wireless Barricade Router 3. Power on: Connect the power adapter to the Wireless Barricade. Internet Figure 2. Connecting the Wireless Barricade Router Attach to Your Network Using Ethernet Cabling The four LAN ports on the Wireless Barricade auto-negotiate the connection speed to 10 Mbps Ethernet or 100 Mbps Fast Ethernet, and the transmission mode to half duplex or full duplex.
  • Page 15 Attach to Your Network Using Radio Signals Install a wireless network adapter in each computer that will be connected to the Internet or your local network via radio signals. SMC currently offers several wireless network cards, including the SMC2602W and SMC2632W Wireless cards. Rotate both antennas on the back of the Wireless Barricade to the desired position.
  • Page 16 Installing the Wireless Barricade Router Internet PC with Wireless PCI Adapter Figure 3. Making the WLAN Connections Attach the Wireless Barricade Router to the Internet If Internet services are provided through an xDSL or cable modem, use unshielded or shielded twisted-pair Ethernet cable (Category 3 or greater) with RJ-45 plugs to connect the broadband modem directly to the WAN port on the Wireless Barricade.

  • Page 17: Configuring Client Tcp/Ip

    If you have not previously installed the TCP/IP protocols on your client PCs, refer to the following section. If you need information on how to configure a TCP/IP address on a PC, refer to “Setting Up TCP/IP” on page 15. Installing TCP/IP Windows 95/98/Me 1.

  • Page 18: Windows 2000

    Configuring Client TCP/IP 5. Select Microsoft in the manufacturers list. Select TCP/IP in the Network Protocols list. Click the OK button to return to the Network window. 6. The TCP/IP protocol will be listed in the Network window. Click OK. The operating system may prompt you to restart your system.

  • Page 19: Setting Up Tcp/Ip

    4. Double-click Protocol. 5. Choose Internet Protocol (TCP/IP). Click the OK button to return to the Network window. 6. The TCP/IP protocol will be listed in the Network window. Click OK to complete the installation procedure. Setting Up TCP/IP To access the Internet through the Wireless Barricade, you must configure the network settings of the computers on your LAN to use the same IP subnet as the Wireless Barricade.

  • Page 20: Configuring Your Computer In Windows 95/98/Me

    Configuring Client TCP/IP Note: These settings may be changed to suit your network requirements, but you must first configure at least one computer as described in this chapter to access the Wireless Barricade’s Web configuration interface.See “Configuring the Wireless Barricade Router” on page 27 for information on configuring the Wireless Barricade.) If you have not previously configured TCP/IP for your computer,...
  • Page 21 3. On the Network window Configuration tab, double-click the TCP/IP entry for your network card. 4. Click the IP Address tab. 5. Click the “Obtain an IP address “option. 6. Next click on the Gateway tab and verify the Gateway field is blank.
  • Page 22 Configuring Client TCP/IP 8. On the Network Properties Window, click the OK button to save these new settings. Note: Windows may ask you for the original Windows installation disk or additional files. Check for the files at c:\windows\options\cabs, or insert your Windows CD-ROM into your CDROM drive and check the correct file location, e.g., D:\win98, D:\win9x.
  • Page 23 Barricade is functioning. Click OK to close the IP Configuration window. Configuring Your Computer in Windows NT 4.0 1. From the Windows desktop click Start/Settings/Control Panel. 2. Double-click the Network icon. 3. Click on the Protocols tab. 4. Double-click TCP/IP Protocol. 5.
  • Page 24 Configuring Client TCP/IP 6. In the Adapter drop-down list, be sure your Ethernet adapter is selected. 7. Click on “Obtain an IP address from a DHCP server”. 8. Click OK to close the window. 9. Windows may copy files and will then prompt you to restart your system.
  • Page 25 3. Type IPCONFIG /RENEW and press the <ENTER> key. Verify that your IP Address is now 192.168.2.xxx, your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that the Wireless Barricade is functioning. 4. Type EXIT and press <ENTER> to close the Command Prompt window.
  • Page 26 Configuring Client TCP/IP 3. Locate and double-click the Local Area Connection icon for the Ethernet adapter that is connected to the Wireless Barricade. When the Status dialog box window opens, click the Properties button. 4. In the Local Area Connection Properties box, verify the box next to Internet Protocol (TCP/IP) is checked.
  • Page 27 2. Locate and double-click the Local Area Connection icon for the Ethernet adapter that is connected to the Wireless Barricade. Next, click the Properties button. 3. the Local Area Connection Properties box, verify the box next to Internet Protocol (TCP/IP) is checked. Then highlight the Internet Protocol (TCP/IP), and click the Properties button.
  • Page 28 Configuring Client TCP/IP 2. In the TCP/IP dialog box, make sure that Ethernet is selected in the Connect Via: field. 3. Select Using DHCP Server in the Configure field. 4. Close the TCP/IP dialog box. Manual IP Configuration 1. Check Specify an IP address on the IP Address tab.
  • Page 29 2. In the Gateway tab, add the IP address of the Wireless Barricade (default: 192.168.2.1) in the New gateway field and click Add. 3. On the DNS Configuration tab, add the IP address for the Wireless Barricade and click Add. This automatically relays DNS requests to the DNS server(s) provided by your ISP.

  • Page 30: Verifying Your Tcp/Ip Connection

    Configuring Client TCP/IP Verifying Your TCP/IP Connection After installing the TCP/IP communication protocols and configuring an IP address in the same network as the Wireless Barricade, use the Ping command to check if your computer has successfully connected to the Wireless Barricade. The following example shows how the Ping procedure can be executed in an MS-DOS window.

  • Page 31: Configuring The Wireless Barricade Router

    Configuring the Wireless Barricade Router The Wireless Barricade Router can be configured by any Java-supported browser including Internet Explorer 5.0 or above, or Netscape Navigator 4.0 or above. Using the Web management interface, you can configure the Wireless Barricade and view statistics to monitor network activity. Note: Before you attempt to configure your router, if you have access to the Internet please visit www.smc-europe.com...

  • Page 32: Disable Proxy Connection

    Configuring the Wireless Barricade Router This is configured through the options/preference section of your browser. Disable Proxy Connection You will also need to verify that the HTTP Proxy feature of your web browser is disabled. This is so that your web browser will be able to view the Wireless Barricade configuration pages.

  • Page 33: Netscape (4 Or Above)

    Netscape (4 or above) 1. Open Netscape. Click Edit, and then select Preferences. 2. In the Preferences window, under Category, double-click Advanced, then select the Proxies option. 3. Check “Direct connection to the Internet.” 4. Click the OK button to save the changes. To access the Wireless Barricade’s management interface, enter the Wireless Barricade IP address in your...

  • Page 34: Navigating The Web Browser Interface

    Configuring the Wireless Barricade Router Navigating the Web Browser Interface The Wireless Barricade’s management interface features a Setup Wizard and an Advanced Setup section. Use the Setup Wizard if you want to quickly set up the Wireless Barricade for use with a cable modem or DSL modem. Advanced setup supports more advanced functions like hacker attack detection, IP and MAC address filtering, intrusion detection, virtual server setup, virtual DMZ hosts, and other...

  • Page 35: Setup Wizard

    Setup Wizard Time Zone Click on the Setup Wizard picture. The first item in the Setup Wizard is Time Zone setup. For accurate timing of client filtering and log events, you need to set the time zone. Select your time zone from the drop-down list, and click NEXT.
  • Page 36 Configuring the Wireless Barricade Router Cable Modem Your ISP may have given you a host name. If so, enter it into the field. Click Finish to complete the setup. The Status page will open to allow you to view the connection status, as well as other information.
  • Page 37 Setup Wizard Fixed-IP xDSL Some xDSL Internet Service Providers may assign a fixed (static) IP address. If you have been provided with this information, choose this option and enter the assigned IP address, gateway IP address, DNS IP addresses, and subnet mask.
  • Page 38 Configuring the Wireless Barricade Router during inactivity. If the connection is inactive for longer than the Maximum Idle Time, it will be dropped. (Default: 10) Enable the Auto-reconnect option to automatically re-establish the connection as soon as you attempt to access the Internet again.
  • Page 39 Note: Please be aware that the setting "Maximum Idle Time" to "0" and/or "Auto-Reconnect" enabled can cause increased telephone bills. For further information please visit technical support team. Enable the Auto-reconnect option to automatically re-establish the connection as soon as you attempt to access the Internet again.

  • Page 40: Advanced Setup

    Configuring the Wireless Barricade Router Advanced Setup Use the Web management interface to define system parameters, manage and control the Wireless Barricade and its ports, or monitor network conditions. The following table outlines the selections available from this program. Menu System Wireless Firewall...

  • Page 41: System

    Menu Status System Time Zone Select your time zone and time server from the drop-down list for the Wireless Barricade. This information is used for log entries and client access control. Description Provides WAN connection type and status, firmware and hardware version numbers, system IP settings, as well as DHCP, NAT, and Firewall information.
  • Page 42 Configuring the Wireless Barricade Router Password Settings Use this menu to restrict access based on a password. By default, there is no password. For security you should assign one before exposing the Wireless Barricade to the Internet. Passwords can contain from 3–12 alphanumeric characters and are not case sensitive.

  • Page 43: Wan

    Advanced Setup Remote Management Remote Management allows a remote PC to configure, manage, and monitor the Wireless Barricade using a standard Web browser. Check Enable and enter the IP address of the remote host. Click APPLY. Note: If you specify 0.0.0.0 as this IP address, any host can manage the Wireless Barricade.
  • Page 44 Configuring the Wireless Barricade Router Dynamic IP The Host Name is optional, but may be required by some ISPs. The default MAC address is set to the WAN’s physical interface on the Wireless Barricade. Use this address when registering for Internet service, and do not change it unless required by your ISP.
  • Page 45 Point-to-Point Over Ethernet (PPPoE) Enter the PPPoE User Name and Password assigned by your Service Provider. The Service Name is normally optional, but may be required by some service providers. The MTU (Maximum Transmission Unit) governs the maximum size of the data packets. Leave this on the default value (1454) unless you have a particular reason to change it.
  • Page 46 Configuring the Wireless Barricade Router please visit technical support team. Point-to-Point Tunneling Protocol (PPTP) Point-to-Point Tunneling Protocol (PPTP) can be used to join different physical networks using the Internet as an intermediary. Using the above screen allows client PCs to establish a normal PPTP session and provides hassle-free configuration of the PPTP client on each client PC.
  • Page 47 maintained during inactivity. If the connection is inactive for longer than the Maximum Idle Time, it will be dropped. (Default: 10 minutes) Note: Please be aware that the setting "Maximum Idle Time" to "0" and/or "Auto-Reconnect" enabled can cause increased telephone bills. For further information please visit technical support team.
  • Page 48 Configuring the Wireless Barricade Router BigPond BigPond is a service provider in Australia that uses a heartbeat system to maintain the Internet connection. Configure the built-in client with your user name, password and service name to get online. Leave the Authentication Service Name as “login-server” for a universal configuration.
  • Page 49 Advanced Setup Domain Name Servers map numerical IP addresses to the equivalent domain name (e.g., www.smc.com). Your ISP should provide the IP address of one or more domain name servers. Enter those addresses in this screen.

  • Page 50: Lan

    Configuring the Wireless Barricade Router • LAN IP – Use the LAN menu to configure the LAN IP address for the Wireless Barricade and to enable the DHCP server for dynamic client address allocation. • Lease Time - Set a period for the lease time if required. For home networks this may be set to Forever, which means there is no time limit on the IP address lease.

  • Page 51: Wireless

    Advanced Setup Wireless To configure the Wireless Barricade as a wireless access point for wireless clients (either stationary or roaming), all you need to do is define the radio channel, the Service Set identifier (SSID), and encryption options. Channel and SSID You must specify a common radio channel and SSID (Service Set ID) to be used by the Wireless Barricade and all of your wireless clients.
  • Page 52 Configuring the Wireless Barricade Router Transmission Rate: Set the data rate transmitted from the Wireless Barricade. The lower the data rate, the longer the transmission distance. (Default: Fully Automatic.) Basic Rate: The highest rate specified is the rate the Wireless Barricade will use when transmitting broadcast/multicast and management frames.
  • Page 53 Advanced Setup You may automatically generate encryption keys or manually enter the keys. For automatic 64-bit security, enter a passphrase and click Generate. Four keys will be generated (as shown below). Choose a key from the drop-down list or accept the default key.

  • Page 54: Network Address Translation (Nat)

    Configuring the Wireless Barricade Router If you use encryption, configure the same keys used for the Wireless Barricade on each of your wireless clients. Note that Wired Equivalent Privacy (WEP) protects data transmitted between wireless nodes, but does not protect any transmissions over your wired network or over the Internet.
  • Page 55 Virtual Server If you configure the Wireless Barricade as a virtual server, remote users accessing services such as Web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP addresses. In other words, depending on the requested service (TCP/UDP port number), the Wireless Barricade redirects the external service request to the appropriate server (located at another internal IP...
  • Page 56 Configuring the Wireless Barricade Router Special Applications Some applications, such as Internet gaming, videoconferencing, Internet telephony and others, require multiple connections. These applications cannot work with Network Address Translation (NAT) enabled. If you need to run applications that require multiple connections, use the following screen to specify the additional public ports to be opened for each application.

  • Page 57: Firewall

    Advanced Setup Firewall The Wireless Barricade firewall can provide access control of connected client PCs, block common hacker attacks, including IP Spoofing, Land Attack, Ping of Death, IP with zero length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan, and TCP SYN flooding.
  • Page 58 Configuring the Wireless Barricade Router Note: Click on Add PC and define the appropriate settings for client PC services (as shown in the following screen).
  • Page 59 Advanced Setup MAC Filtering Table The MAC Filtering feature of the Wireless Barricade allows you to control access to your network to up to 32 clients based on the MAC (Media Access Control) Address of the client machine. This ID is unique to each network adapter. If the MAC address is listed in the table, that client machine will have access to the network.
  • Page 60 Configuring the Wireless Barricade Router URL Blocking To configure the URL Blocking feature, use the table below to specify the websites (www.somesite.com) and/or keywords you want to filter on your network. To complete this configuration, you will need to create or modify an access rule in “Access Control”...
  • Page 61 Schedule Rule The Schedule Rule feature allows you to configure specific rules based on Time and Date. These rules can then be used to configure more specific Access Control. Enables Schedule-based Internet access control. 1. Click Add Schedule Rule. 2. Define the settings for the schedule rule (as shown on the following screen).
  • Page 62 Configuring the Wireless Barricade Router Use this section to create your network schedule rules. The times you set below are the times periods that you want the Access Control Rule to be active. For example, if you want to block Internet access (block WWW) from 9AM to 9PM during the week.
  • Page 63 Intrusion Detection Firewall Configuration • SPI (Stateful Packet Inspection) and Anti-DoS firewall protection (Default: Enabled) – the Wireless Barricade’s Intrusion Detection feature limits access for incoming traffic at the WAN port. When the SPI feature is turned on, all incoming packets will be blocked.
  • Page 64 Configuring the Wireless Barricade Router DMZ (Demilitarized Zone) If you have a client PC that cannot run an Internet application properly from behind the firewall, then you can open the client up to unrestricted two-way Internet access. Enter the IP address of a DMZ host to this screen.

  • Page 65: Ddns (Dynamic Dns) Settings

    Advanced Setup DDNS (Dynamic DNS) Settings Domain Name is a series of alphanumeric strings separated by periods, that is the address of a network connection and that identifies the owner of the address. Dynamic DNS provides users on the Internet with a method to tie their domain name(s) to computers or servers.

  • Page 66: Upnp (Universal Plug And Play) Setting

    Configuring the Wireless Barricade Router This DNS feature is powered by TZO.com. With a DDNS connection you can host your own web site, email server, FTP site, and more at your own location even if you have a dynamic IP address. (Default: Disable) UPnP (Universal Plug and Play) Setting Enable UPnP by checking ON in the screen above.

  • Page 67: Tools

    Tools Use the Tools menu to backup the current configuration, restore a previously saved configuration, restore factory settings, update firmware, and reset the Wireless Barricade. Tools - Configuration Tools • Backup – saves the Wireless Barricade’s configuration to a file. •...
  • Page 68 Configuring the Wireless Barricade Router Tools - Firmware Upgrade Use this screen to update the firmware or user interface to the latest versions. Download the upgrade file from the SMC Web site (www.smc.com) and save it to your hard drive. In the Upgrade Target field, choose Firmware.
  • Page 69 Tools - Reset Click APPLY to reset the Wireless Barricade. The reset will be complete when the power LED stops blinking. Note: If you use the Reset button on the front panel, the Wireless Barricade performs a power reset. If the button is held depressed for over five seconds, all the LEDs will illuminate and the factory settings will be restored.

  • Page 70: Status

    Configuring the Wireless Barricade Router Status The Status screen displays WAN/LAN connection status, firmware, and hardware version numbers, illegal attempts to access your network, as well as information on DHCP clients connected to your network. The following items are included on this screen: Section INTERNET Wireless Barricade...

  • Page 71: Troubleshooting

    The information outlined in this section describes some useful steps for getting your computer and the Wireless Barricade Router online. A. Verify your connection to the Wireless Barricade If you are unable to access the Wireless Barricade’s web-based administration pages then you may not be properly connected or configured.
  • Page 72 Troubleshooting If you have any other IP address information listed see below. If you have an IP address that starts with 169.254.XXX.XXX then see the next section. If you have another IP address configured, then see section C. B. I am getting an IP Address that starts with 169.254.XXX.XXX If you are getting this IP Address, then you need to check that you are properly connected to the Wireless Barricade.
  • Page 73 C. I have another IP Address displayed If you have another IP address listed then the PC may not be configured for a DHCP connection. Please refer to “Configuring Client TCP/IP” on page 13 for information. Once you have confirmed your computer is configured for DHCP, then please follow the steps below.
  • Page 74 Troubleshooting D. The 10/100 LED does not light after a connection is made. 1. Check that the host computer and hub are both powered on. 2. Be sure the network cable is connected to both devices. 3. Verify that Category 5 cable is used if you are operating at 100 Mbps, and that the length of any cable does not exceed 100 m (328 ft).

  • Page 75: Specifications

    Specifications PECIFICATIONS Below is an outline of the Technical Specifications for the SMC7004VWBR V.2 Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.11b LAN Interface 4 - RJ-45 10/100 Mbps Auto MDI/MDI-X ports WAN Interface 1- RJ-45 10/100 Mbps Auto MDI/MDI-X port Management Web management Advanced Features...
  • Page 76 Specifications Input Power 9 V (1 A) Internet Standards ARP (RFC 826), IP (RFC 791), ICMP (RFC 792), UDP (RFC 768), TCP (RFC 793), Telnet (RFC 854-859), MD5 (RFC 1321), BOOTP Extension (RFC 1497), PPP LCP Extension (RFC 1570), PPPoE (RFC 2516), NAT (RFC 1631), PPP (RFC 1661), HTML (RFC 1866), HTTP (RFC 1945), CHAP (RFC 1944), DHCP (RFC 2131), PPTP (RFC 2637) Temperature...

  • Page 77: Compliances

    OMPLIANCES FCC - Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 78 “Appareils Numériques” NMB-003 édictée par le ministère des Communications. EC Conformance Declaration - Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí, Barcelona, Spain.

  • Page 79: Legal Information And Contacts

    ONTACTS SMC's Limited Warranty Statement SMC Networks Europe ("SMC") warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 2 year limited warranty from the date of purchase from SMC or its Authorized Reseller.
  • Page 80 Legal Information and Contacts INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS.
  • Page 81 SMC reserves the right to change specifications at any time without notice. Trademarks SMC is a registered trademark and EZ Connect is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their...
  • Page 82 Model Number: SMC7004VWBR V.2 Part Number: 150000026400E Revision Number E052003-R01 F 1.0...
