source IP address range (Source IP Address AND Source Subnet Mask), and destination IP address
range (Destination IP Address AND Destination Subnet Mask).
A source (destination) IP address range is determined by performing an AND operation on the
source (destination) IP address field and the source (destination) subnet mask field. For example, if
the source IP address field is 192.168.0.1 and the source subnet mask field is 255.255.255.0, the
resultant source IP address range is 192.168.0.0 to 192.168.0.255.

3.6.1.3. TCP/UDP Port Filters

The destination port field the TCP or UDP header of a packet incoming from the WLAN or
Ethernet interface is inspected for filtering. In a rule, specify the decimal Destination Port,
Protocol type (TCP/UDP), and the name of the higher-level protocol (Application Name).
3.6.2. Management
3.6.2.1. Basic
The SMC2582W-B can be managed by Telnet.This functionality can be either enabled or disabled.
3.6.2.2. UPnP
UPnP (Universal Plug and Play) enables a Windows XP user to automatically discover peripheral
devices by HTTP.When the UPnP functionality is enabled, you can see the SMC2582W-B in My
Network Places of Windows XP.The SMC2582W-B can be given a user-friendly name that will be
shown in My Network Places. Double-clicking the icon in My Network Places that stands for the
SMC2582W-B will launch the Web browser for you to configure the SMC2582W-B.
NOTE: Make sure you have installed necessary Windows UPnP components
on your Windows XP computer.

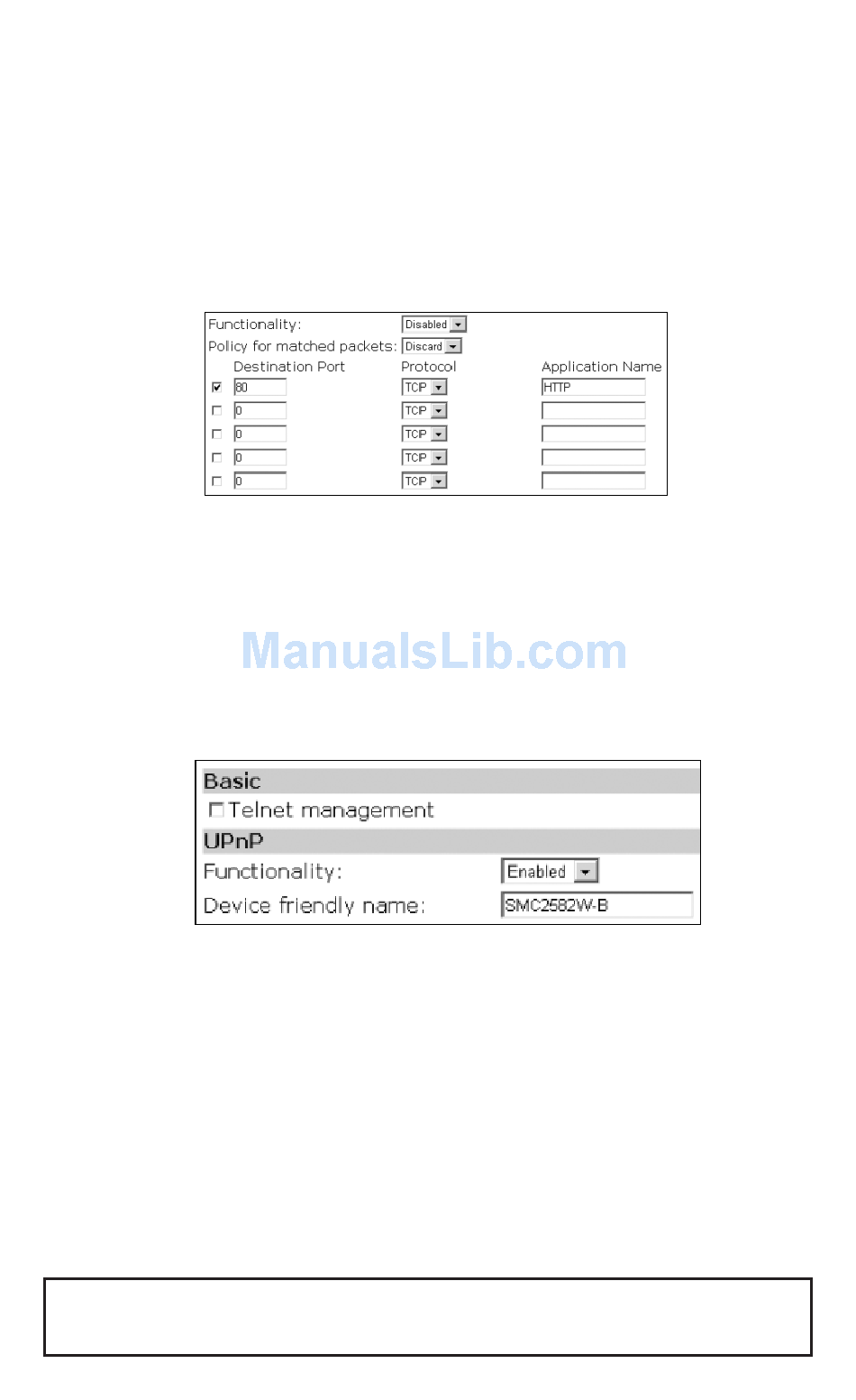

Fig. 51.TCP/UDP port filters settings.
Fig. 52. Basic and UPnP settings.
