Upgrading Firmware By Http; Backing Up And Restoring Configuration Settings By Http - SMC Networks EliteConnect SMC2582W-B User Manual

backup, and configuration restore can be achieved via HTTP or TFTP.The HTTP-based way is suggest-
ed because it's more user-friendly. However, due to different behavior of different Web browser
types and versions, HTTP-based firmware management operations may not work properly with
some Web browsers. If you cannot successfully perform HTTP-based firmware management opera-
tions with your Web browser, try the TFTP-based method.

3.3.3.1. Upgrading Firmware by HTTP

To upgrade firmware of the SMC2582W-B by HTTP:
1. Click Browse and then select a correct firmware .bin file.The firmware file path will be shown in
the Firmware file name text box.
2. Click Upgrade to begin the upgrade process.

3.3.3.2. Backing up and Restoring Configuration Settings by HTTP

To back up configuration of the SMC2582W-B by HTTP:
1. Click Back Up.
2.You'll be prompted to open or save the configuration file. Click Save.
3.The configuration file is named by the SMC2582W-B's MAC address. For example, if the
SMC2582W-B's MAC address is 00-01-02-33-44-55, the configuration backup file should be
"000102334455.hex" . Don't change the configuration file name in the Save As dialog box. Select
a folder in which the configuration file is to be stored. And then, click Save.
NOTE: The procedure may be a little different with different Web browsers.

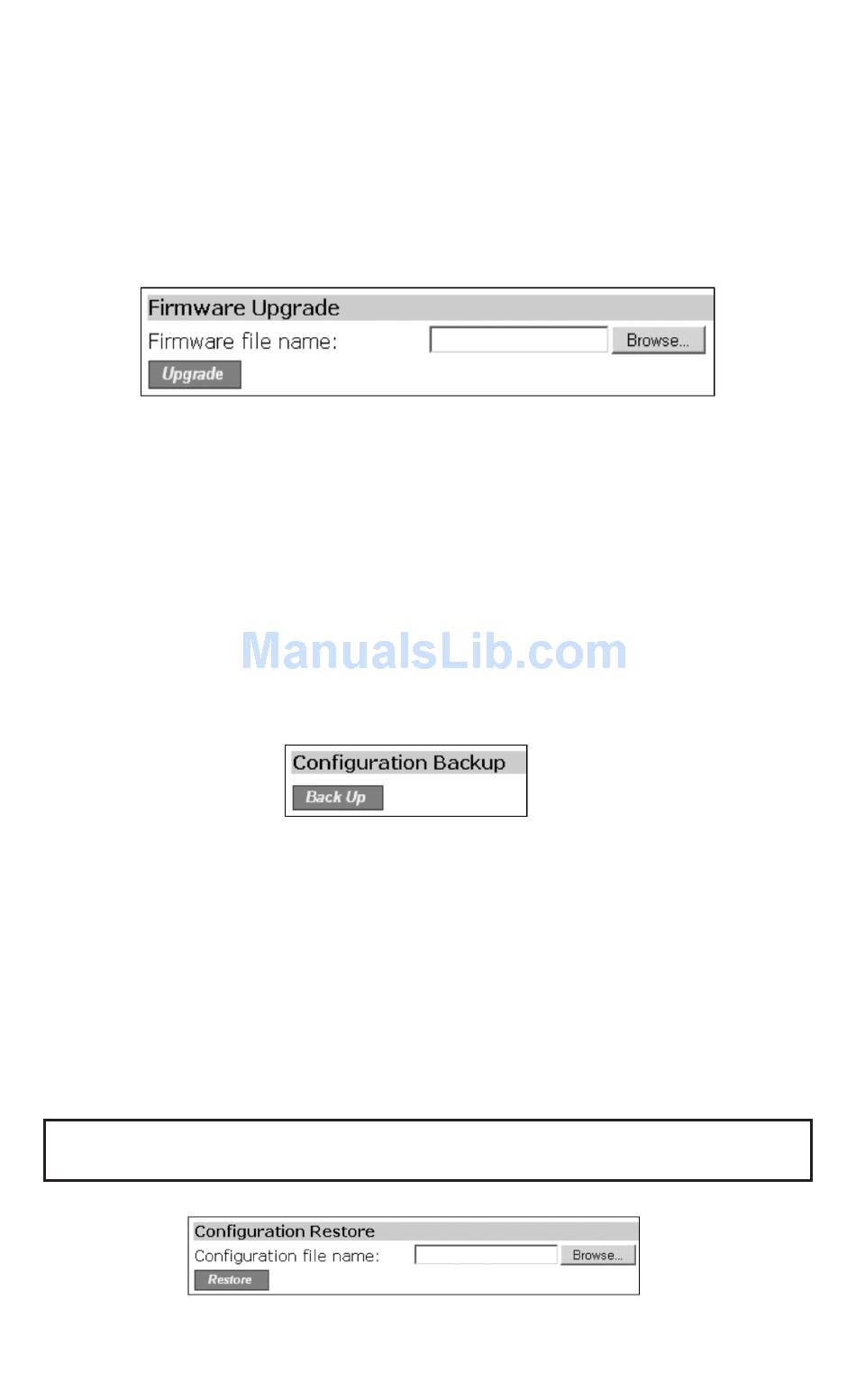

Fig. 25. Firmware upgrade by HTTP.
Fig. 26. Firmware backup by HTTP.
Fig. 27. Configuration restore by HTTP.
27
